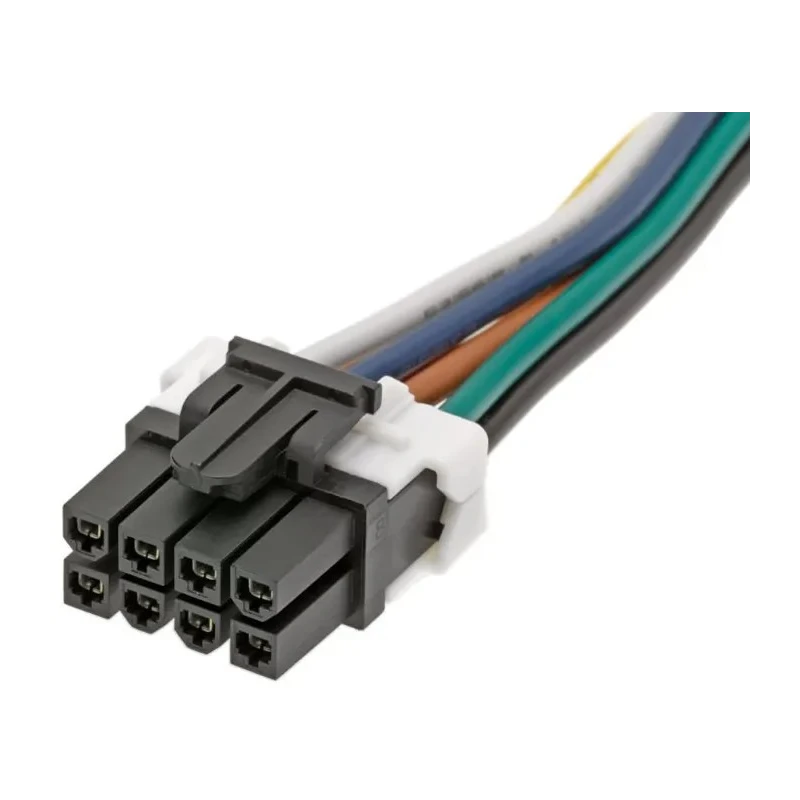

Molex 8 Way Female Mini-Fit TPA2 to 8 Way Female Mini-Fit TPA2 Wire to Board Cable 1 m TPA2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 600V ac |
| Brand | Molex |
| Model | TPA2 |
| Cable Length | 1m |
| Series | 45135 |
| Jacket Material | Nylon, Polyvinyl Chloride |
| Standards/Approvals | CSA LR19980, REACH, UL- E29179, RoHS, TUV |
| Connector Type A | Mini-Fit TPA2 |
| Connector Gender A | Female |
| Number of Contacts A | 8 |
| Number of Rows A | 2 |
Key Features
- Constructed with UL1061 discrete wires for ease of design and prototyping.
- Multi-coloured cables allow simple identification and correct connection.
- Pin to pin mapping from receptacle to PCB header reduces engineering time.
- Fully isolated contacts prevent damage from mishandling and mating.
- Positive locking connector housings secure connections against vibration and accidental unmating.
- Terminal Position Assurance (TPA) retainer reduces terminal back-outs.
- Designed for use with Mini-Fit Jr headers and plug housings series 5566, 5569, and 5559.
- Suitable for industrial automation, automotive, data communications, and prototyping.
Product Description
Molex TPA2 8 Way Female Mini-Fit Wire to Board Cable 1 m is a high-quality wire to board cable assembly designed for reliable electrical connections with 8 female contacts on each end. It operates at 600 V AC voltage rating and features connectors from the 45135 series.
Constructed with UL1061 discrete wires, this cable offers ease in design and prototyping with multi-coloured wires to aid in correct connection. The pin to pin mapping ensures precise signal transmission from the receptacle to the PCB header, minimizing errors and engineering efforts.
The Mini-Fit TPA 2 connectors have fully isolated contacts, protected against damage during mating. The connectors include a Terminal Position Assurance (TPA) retainer which securely holds contacts in place and reduces terminal back-outs, essential for high vibration environments.
Positive lock housings ensure secure mating connections, preventing accidental disconnections due to vibration or handling. This cable assembly is designed to mate with series 5566 and 5569 Mini-Fit Jr headers and series 5559 Mini-Fit Jr plug housings.
Designed for use in a variety of industrial and commercial applications including automation equipment, automotive harnesses, office equipment for data and communications, this wire to board cable supports robust, reliable interconnection needs.
Constructed with UL1061 discrete wires for ease of design and prototyping. Multi-coloured cables allow simple identification and correct connection. Pin to pin mapping from receptacle to PCB header reduces engineering time.
Fully isolated contacts prevent damage from mishandling and mating. Positive locking connector housings secure connections against vibration and accidental unmating. Terminal Position Assurance (TPA) retainer reduces terminal back-outs.
Designed for use with Mini-Fit Jr headers and plug housings series 5566, 5569, and 5559. Suitable for industrial automation, automotive, data communications, and prototyping.
Choose Molex 8 Way Female Mini-Fit TPA2 to Female Mini-Fit TPA2 Wire to Board Cable for dependable, high-quality power and signal transmission in your industrial and commercial electronic assemblies.
Explore more categories and products within Wire to Board Cable at EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 600 V AC.
The cable length is 1 meter.
Each connector has 8 female contacts.
This cable is designed to mate with Mini-Fit Jr headers and plug housings from series 5566, 5569, and 5559.
The jacket material of the cable is made from Nylon and Polyvinyl Chloride.
This cable meets CSA LR19980, REACH, UL- E29179, RoHS, and TUV standards.
The cable features positive locking connector housings that secure connections against vibration and accidental unmating.
The TPA retainer securely holds contacts in place and reduces terminal back-outs, which is essential for high vibration environments.
This wire to board cable is suitable for industrial automation, automotive applications, data communications, and prototyping.
The pin to pin mapping from receptacle to PCB header minimizes errors and reduces engineering efforts during the design process.
The cable is manufactured in India.
This is a wire to board cable assembly designed for reliable electrical connections with 8 female contacts on each end.
