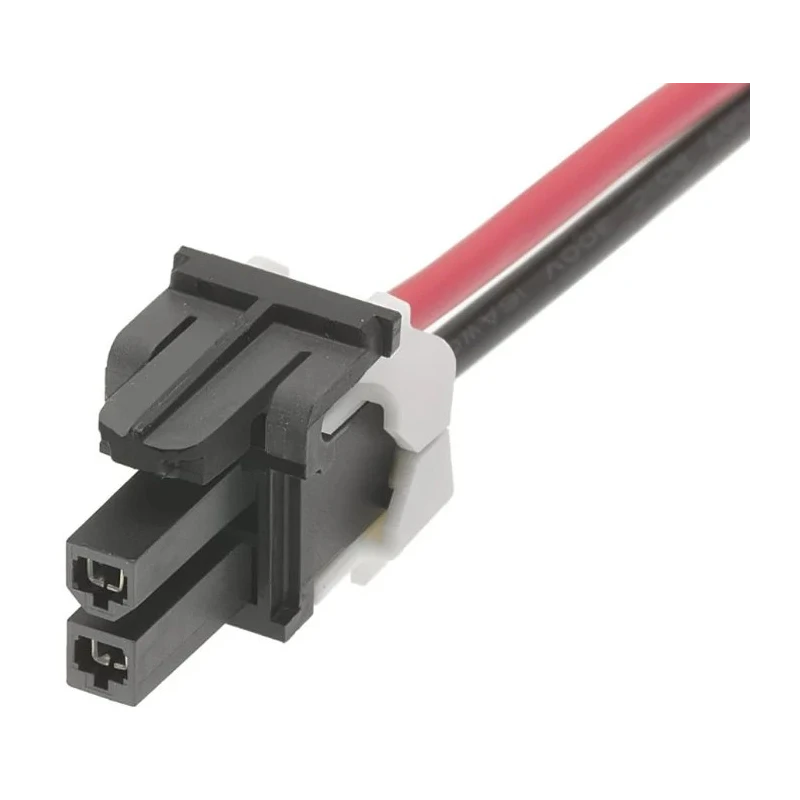

Molex Wire to Board Cable 2 Way Female Mini-Fit TPA2 600V AC 1m Length

Molex 45135-0210 Wire to Board Cable is a high-quality assembly designed for reliable electrical connections in industrial and commercial applications. It features 2 Way Female Mini-Fit TPA2 connectors on both ends, each with 2 rows and 2 contacts, providing a 1 meter cable length rated for 600 volts AC.

The cable construction uses UL1061 discrete wires, ensuring ease of design, prototyping, and production. The cable jacket is made from durable polyvinyl chloride and nylon materials, colored red and black for clear identification.

The connectors are designed with Terminal Position Assurance (TPA) to securely hold the contact terminals in place and prevent back-out, offering superior vibration resistance. Positive locking housings ensure firm mating connections preventing accidental disconnection.

Fully isolated contact terminals reduce chances of damage due to mishandling, making the cable assembly robust for various environments including industrial automation, data and communication systems, and automotive harness applications in non-sealed environments.

The assembly complies with international standards such as RoHS, CSA LR19980, UL E29179, REACH, and TUV- R72081037, enhancing reliability and ensuring regulatory compliance.

This wire-to-board cable is compatible with Molex Mini-Fit Jr series 5566 and 5569 headers and 5559 plug housings, providing efficient pin-to-pin mapping that reduces engineering efforts.

The cable features Mini-Fit TPA2 connectors with 2 rows and 2 contacts on each end. Constructed using UL1061 discrete wires for reliable electrical performance. Jacket materials are polyvinyl chloride and nylon, providing robust insulation and protection.

Red and black jacket colors allow for easy identification and proper wiring. Connectors include Terminal Position Assurance (TPA) to prevent terminal back-outs and ensure secure connections. Positive locking connectors protect against accidental unmating due to vibration or mishandling.

Fully isolated contacts provide protection against damage during handling and mating. Complies with RoHS, CSA LR19980, UL E29179, REACH, and TUV certifications. Ideal for use in industrial automation, data communications, and automotive prototype designs.
