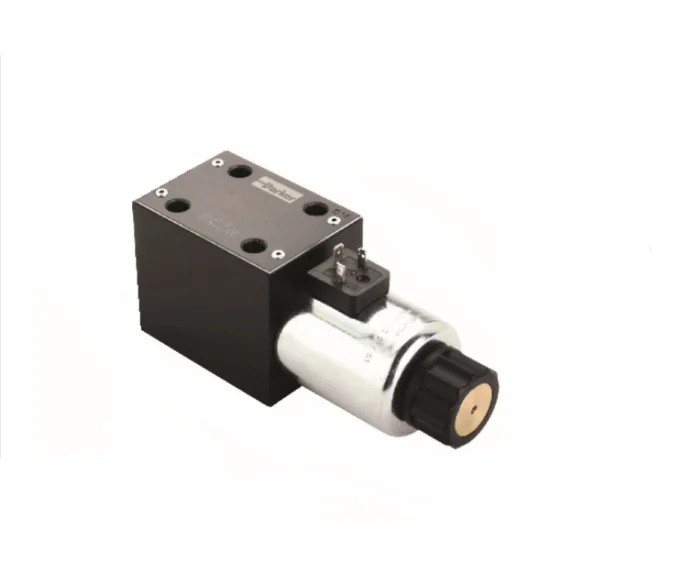

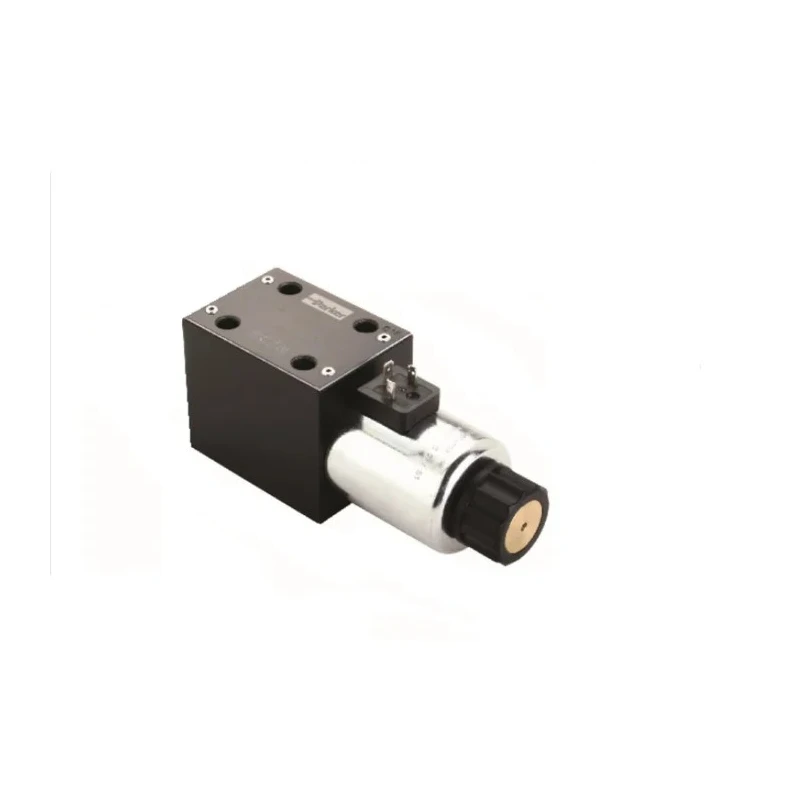

Parker Hydraulic Directional Control Valve Plate 12V DC Solenoid 2 Positions 4 Ports Type B D1VW020BNKW

Free Delivery in India | Lowest Global Shipping Charges

Parker Hydraulic Directional Control Valve Plate 12V DC Solenoid 2 Positions 4 Ports Type B D1VW020BNKW

Name: Parker Hydraulic Directional Control Valve Plate 12V DC Solenoid 2 Positions 4 Ports Type B D1VW020BNKW
Brand: Parker
SKU: 202040
Price: 381.74 USD
Availability: InStock



Category Hydraulic Valves & Manifolds Brand Parker Condition New

Specifications

Country of Origin	India
Brand	Parker
Model	D1VW020BNKW
Mount Type	Plate
Series	D1VW
Number Of Ports	4
Maximum Operating Temperature	60°C
Number of Positions	2
Minimum Operating Temperature	-25°C
Actuation Type	Solenoid
Supply Voltage	12V dc
Spool Type	Type B
Solenoid Type	Single
Valve Direction Type	Directly Operated and Pilot Operated
Standards/ApprovalsMachinery Directive 2006/42/EC, EN 175301-803, EN 201	1997

Key Features

Features type B spool for controlled directional operation.
Mountable in any position, with horizontal preferred orientation.
Provides low pressure drop and energy-saving operation with flow up to 80 ml/min.
Compatible with hydraulic oils meeting DIN 51524 standards.
Includes manual solenoid override for flexible control.
Operating temperature range from -25°C to 60°C.
Designed for max switching frequency of 15000 per hour.
Equipped with wet pin armature solenoid, with EN 175301-803 solenoid connection.

Product Description

Parker D1VW020BNKW hydraulic directional control valve plate is a CETOP 03 standard valve designed for precise hydraulic fluid control in industrial applications. It features a 12V DC single solenoid with spring return actuation, offering effective directional control through its type B spool configuration.

This valve supports two positions and four ports, enabling versatile flow management in hydraulic systems. The product is suitable for installation in various orientations, with horizontal mounting recommended for optimal performance.

Designed with energy efficiency in mind, this valve supports flow rates up to 80 ml/min while maintaining a low-pressure drop. It is compatible with hydraulic oils conforming to DIN 51524 standards, ensuring reliable operation across a wide temperature range from -25°C to 60°C.

The valve includes a manual solenoid override feature, allowing manual operation if needed, and supports a maximum switching frequency of 15000 cycles per hour. Its wet pin armature solenoid is housed in a threaded tube, and the electrical connection complies with EN 175301-803, though the plug is not included.

Applications include general industrial hydraulic systems in manufacturing, machinery, and fluid power sectors where reliable directional control is essential. The valve complies with Machinery Directive 2006/42/EC and relevant EN standards for safety and performance.

Features type B spool for controlled directional operation. Mountable in any position, with horizontal preferred orientation. Provides low pressure drop and energy-saving operation with flow up to 80 ml/min. Compatible with hydraulic oils meeting DIN 51524 standards.

Includes manual solenoid override for flexible control. Operating temperature range from -25°C to 60°C. Designed for max switching frequency of 15000 per hour. Equipped with wet pin armature solenoid, with EN 175301-803 solenoid connection.

Suitable for general industrial hydraulic use across manufacturing and machinery sectors. Explore more Parker hydraulic directional control valves and related fluid power products in the EnvMart catalog for your industrial automation needs.
