HARTING Heavy Duty Power Connector Insert Female 24 Contacts 10A 250V HAN DD Series 09160243101

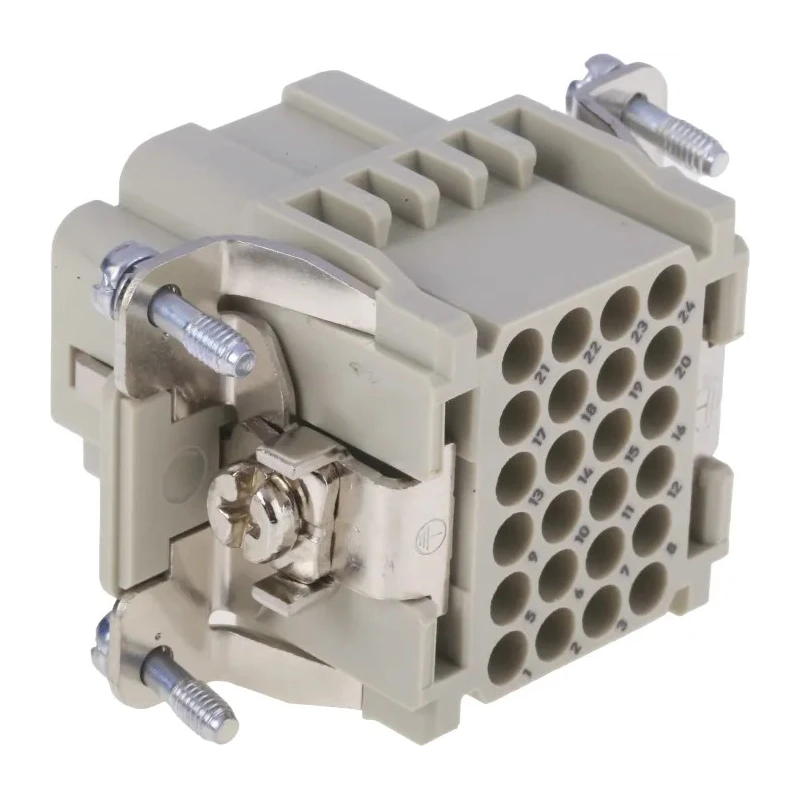

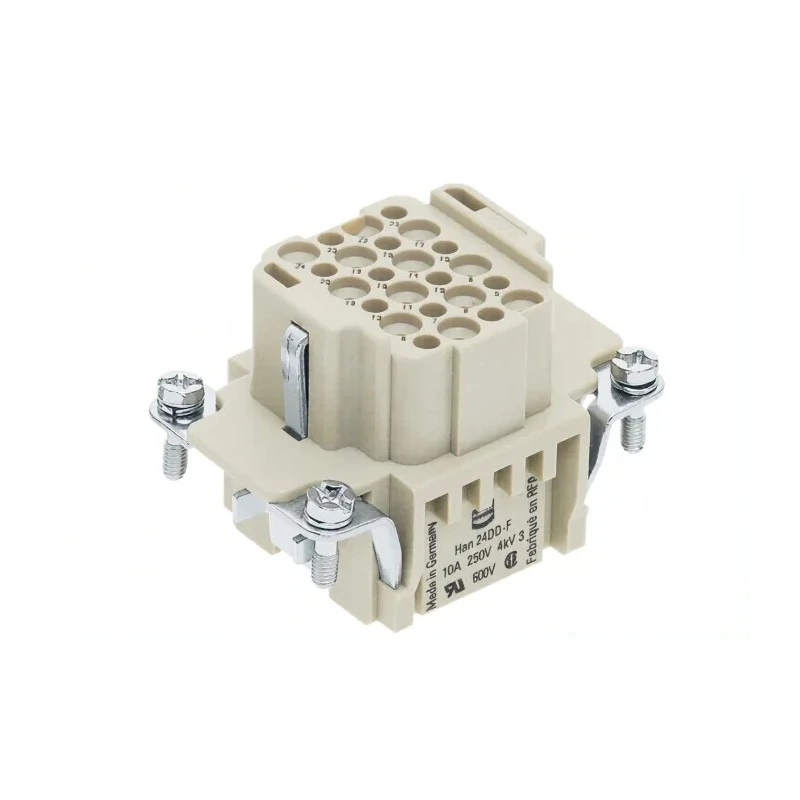

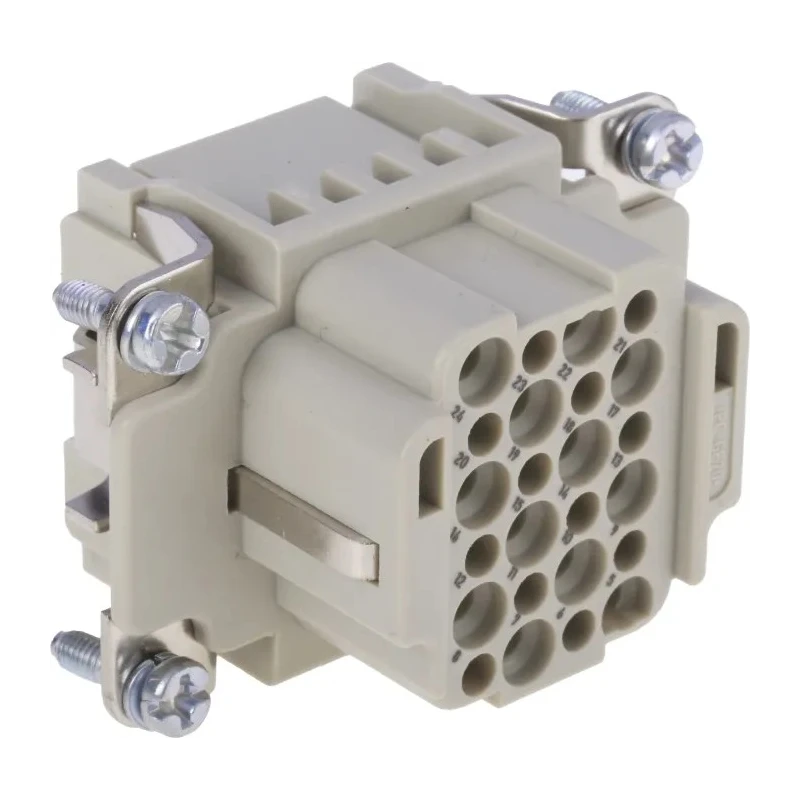

HARTING 09160243101 Heavy Duty Power Connector Insert is a female cable-mounted insert from the HAN DD Series, rated for 10 amperes and 250 volts. The insert provides a robust and compact solution for multi-pole connections in industrial power distribution systems requiring secure and reliable contact configurations.

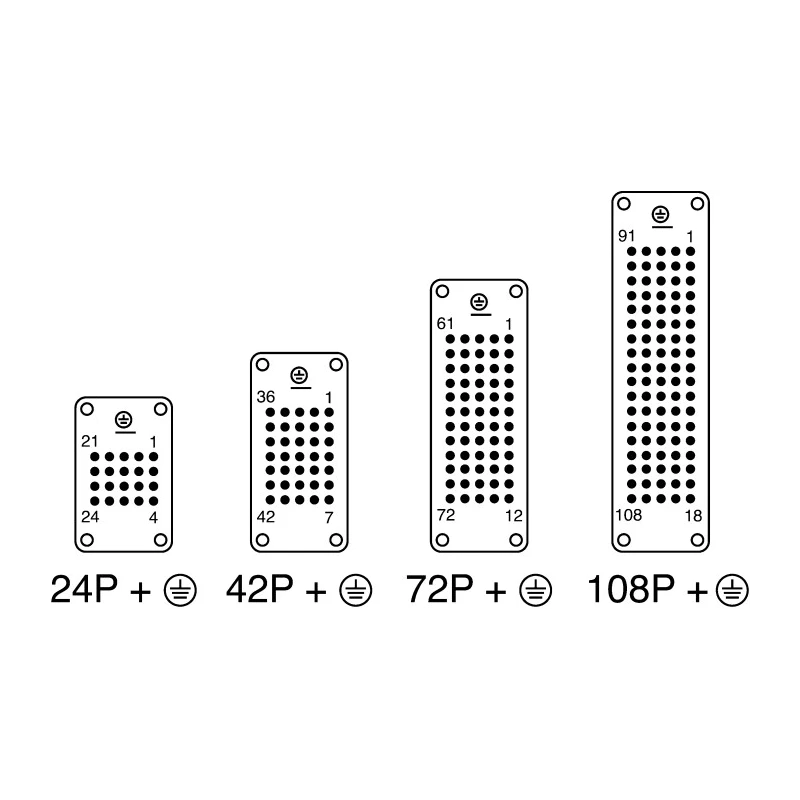

Featuring 24 contacts arranged in four rows plus a protective earth contact, this connector supports flexible conductor sizes ranging from 0.14mm² to 2.5mm². The insert’s straight orientation simplifies inline cable routing and assembly into field-installed harnesses, enabling efficient installation and maintenance.

Engineered for industrial applications, it is optimized for use within control cabinet power distribution, automation cells, machine tool signal and power segregation, and robotic arm power looms. The insert is designed for use with compatible heavy-duty connector housings, making it suitable for both mobile equipment and fixed industrial installations.

Its rated current capacity of 10A at 250V makes it suitable for moderate power transmission needs, ensuring reliable performance under typical operational loads. The compact 24-pole layout increases contact density, allowing complex wiring setups within a reduced footprint, which is ideal for high-density industrial environments.

The insert has a 24-contact plus protective earth configuration for dense and reliable connections. Rated for 10 amperes current and 250 volts operation voltage. Supports wire gauge sizes from 0.14mm² to 2.5mm² for conductor versatility.

Four-row contact layout maximizes density while maintaining compactness. Provides straight orientation for straightforward cable routing and terminations. Cable mounting design simplifies installation in field harnesses and assemblies.

Ideal for industrial control cabinets, automation cells, and machine tool power segregation. Suitable for use in robotic power looms and mobile heavy-duty equipment.

This HARTING insert is manufactured in Romania to high industrial standards and is designed to integrate with heavy-duty connector assemblies where dependable power distribution is essential. It complies with recognized safety standards, but care must be taken not to mate or unmate under electrical load. Appropriate polarization measures must be used to prevent connection mishaps in multi-insert lines.
