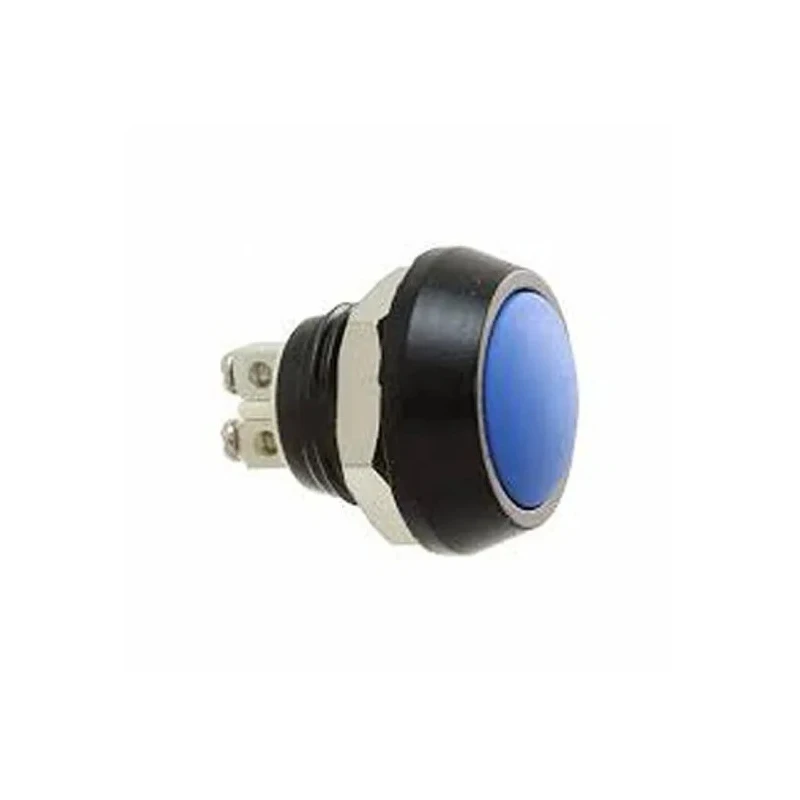

Bulgin Series Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST, Screw Terminal, IP67, Blue, Green MAV0120

Name: Bulgin Series Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST, Screw Terminal, IP67, Blue, Green MAV0120
Brand: Bulgin
SKU: 200359
Price: 12.02 USD
Availability: InStock



Category Push Button Switch Brand Bulgin Condition New

Specifications

Country of Origin	China
Brand	Bulgin
Model	MAV0120
IP Rating	IP67
Mount Type	Panel
Series	MAV0120
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Panel Cutout Size	12 mm
Terminal type	Screw
Standards/Approvals	RoHS
LED Colour	Blue, Green, Orange, Red, Yellow
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	36V dc
Actuator Style	Momentary
Switch Contact Current	2A
Contact AC Voltage	36V ac
• Choice of Termination, depending on part code suffix	S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals

Key Features

The actuator is domed and available in blue color with momentary operation.
The switch features a panel mounting design suited for industrial applications.
Illuminated LED options include blue, green, orange, red, and yellow for clear indication.
Termination is provided via screw terminals for secure electrical connections.
It supports AC and DC contact voltages up to 36V and a contact current rating of 2A.
The switch is sealed to IP67 and suitable for harsh environmental conditions.
Operating temperature ranges from -25°C to 55°C for broad usability.
The product complies with RoHS standards ensuring environmental safety.

Product Description

Bulgin MAV0120 Series push button switch is a high-quality, momentary operation switch designed for panel mounting with a 12 mm cutout. This SPST switch is suitable for industrial, automation, and electrical control applications requiring reliable and swift momentary actuation. It features a domed actuator available in blue and supports a variety of LED indicator colors including blue, green, orange, red, and yellow, enhancing operator feedback on panel status.

Manufactured with robust materials, the switch offers multiple body options such as stainless steel, nickel-plated brass, and black anodized aluminum combined with PBT buttons in multiple colors. The device is rated IP67, ensuring full protection against dust ingress and water immersion, making it ideal for harsh environments.

The MAV0120's electrical characteristics include SPST contact with a maximum AC/DC voltage of 36V and a contact current rating of 2A. It offers screw terminal connections for secure wiring and ease of installation. The operating temperature range from -25°C to 55°C supports use in a wide variety of industrial and commercial environments.

This switch series complies with RoHS regulations, ensuring it meets environmental and safety standards. Its design includes vandal resistant features to ensure durability over long-term use.

The actuator is domed and momentary for precise control. Panel mount fitting with 12 mm cutout for easy integration. Multiple LED colors available for clear status indication. Choice of robust body materials to match application requirements.

Screw terminal type ensures reliable electrical connections. IP67 rating provides excellent environmental sealing. Contact voltage rating of 36V AC/DC with 2A contact current. Operates reliably across -25°C to 55°C temperature range.

RoHS compliant for environmental safety. Vandal resistant construction enhances durability.

This Push Button Switch is suitable for industrial control panels, automation systems, and electrical equipment requiring trusted, momentary switching with visual LED signalling. Browse EnvMart’s extensive category for electrical switches to find compatible components for your project and rely on Bulgin’s MAV0120 series quality and performance.
