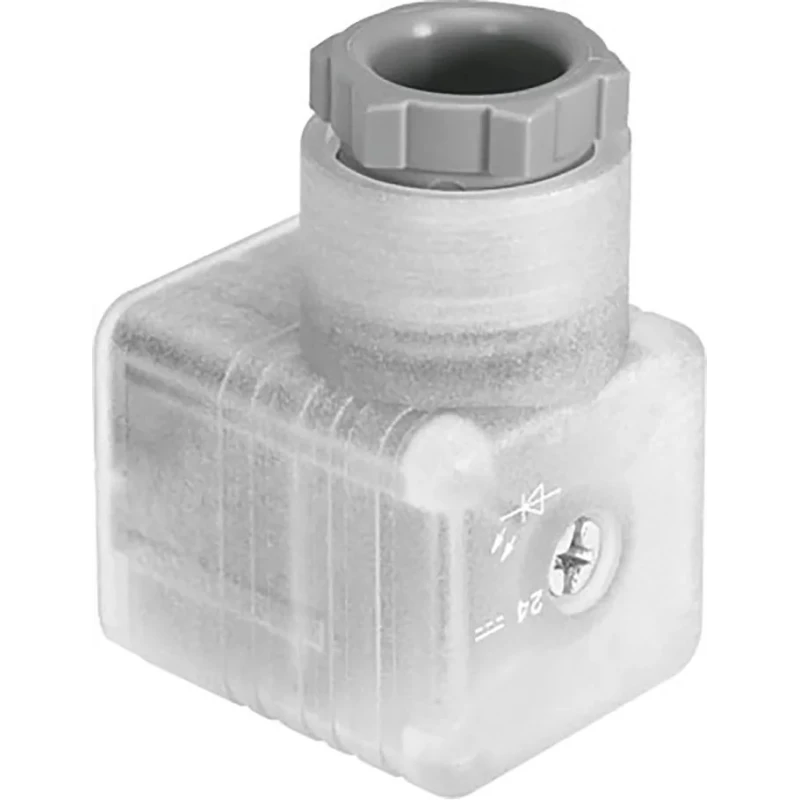

Festo Angled Plug Socket Male Indicator Light 8A Current, DIN 46244, IP65 Rated PEV-1/4-WD-LED-24

Free Delivery in India | Lowest Global Shipping Charges

Festo Angled Plug Socket Male Indicator Light 8A Current, DIN 46244, IP65 Rated PEV-1/4-WD-LED-24

Name: Festo Angled Plug Socket Male Indicator Light 8A Current, DIN 46244, IP65 Rated PEV-1/4-WD-LED-24
Brand: FESTO
SKU: 198912
Price: 49.42 USD
Availability: InStock



Category Plug Socket Brand FESTO Condition New

Specifications

Country of Origin	India
Brand	Festo
Current	8A
Model	PEV-1/4-WD-LED-24
IP Rating	IP65
Mount Type	Screw
Contact Material	Silver
Series	PEV
Termination Type	Plug-In
Standards/Approvals	RCM Mark, cULus recognised (OL)), CCC, CE marking (see declaration of conformity)) To EU Low Voltage Directive, EN 60947-5-1, CE marking (see declaration of conformity)) To EU EMC Directive, RoHS-compliant
Connector Gender	Male
DIN 43650 Type	DIN 46244

Key Features

This socket features a 4-pin connection including normally closed, normally open, operating voltage, and earthing pins.
Constructed with silver contact material to ensure durability and reliable electrical connection.
Equipped with an LED indicator light for clear visual operating status of the switch.
Mount type is screw with plug-in termination for secure and easy installation.
Designed for medium-duty pneumatic system applications with an operating pressure range of 1 to 12 bar.
The socket includes an earthing pin to protect against power surges during operation.
IP65 rating provides resistance to dust and low-pressure water jets, suitable for harsh industrial environments.
Wide ambient temperature range from -40°C to +90°C supports diverse environmental conditions.

Product Description

Festo PEV-1/4-WD-LED-24 angled plug socket male indicator light is a robust and reliable component designed to regulate pneumatic systems effectively. It supports an 8A current capacity and meets DIN 46244 standard with a protection rating of IP65, making it dust tight and resistant to water jets. This screw mount type connector has silver contacts to provide excellent conductivity and durability.

The unit is equipped with a LED indicator light that visually displays the operational status of the switch, aiding maintenance and monitoring. Its 4-pin connection includes normally closed and normally open pins, an operating voltage pin, and an earthing pin to safeguard your system from electrical surges. The design allows for simple detachment from the actuator to maintain system pressure during servicing without re-pressurising.

Operating temperature flexibility ranges between -40°C and +90°C, making this angled plug socket ideal for use in demanding environments associated with food and beverage production, oil and gas sectors, water treatment facilities, and compressed air systems.

This socket supports medium-duty to heavy-duty pneumatic applications with a permissible current load of 8A. IP65 rated for use in harsh conditions involving dust and water exposure. Includes LED indicator for real-time operational feedback.

Screw mount with plug-in termination ensures secure mechanical and electrical connections. Silver contact materials ensure excellent conductivity and longevity. Incorporates earthing pin for enhanced safety against electrical faults.

Compatible with DIN 43650 standard, type DIN 46244. Temperature resilient from -40°C to +90°C. Designed for use across multiple industries including food, oil and gas, and water treatment.

Package details and additional technical specifications can be accessed through product datasheets. This Festo angled Plug Socket is a dependable choice for industrial and commercial electrical power connector solutions. Explore more products in similar categories on EnvMart for comprehensive industrial component solutions.
