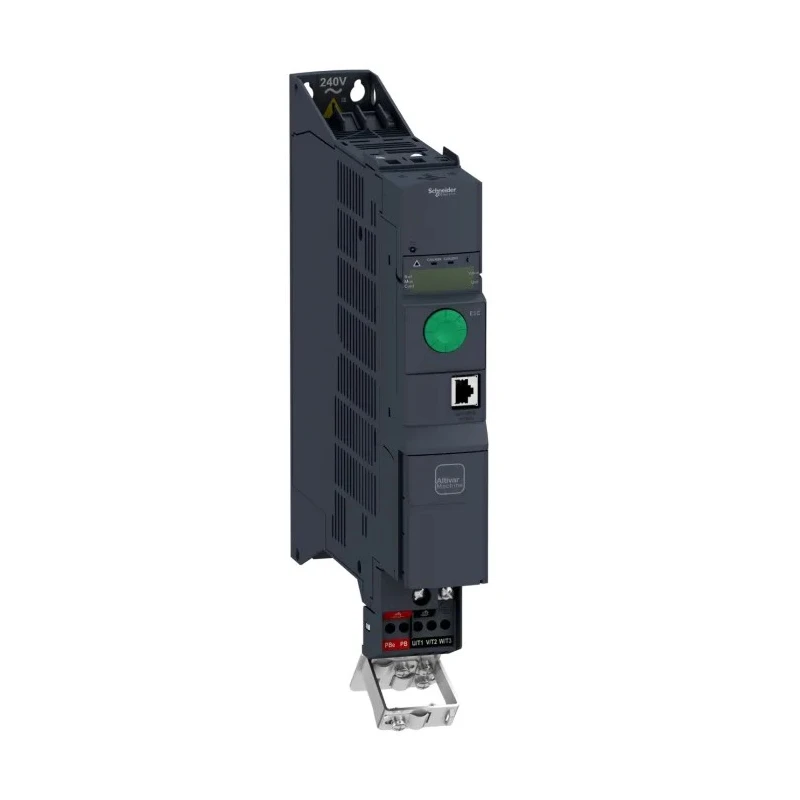

RS PRO Variable Speed Drive 750 W 1 Phase Altivar Series 230V AC 4.8 A ATV320U07M2B

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Variable Speed Drive 750 W 1 Phase Altivar Series 230V AC 4.8 A ATV320U07M2B

Name: RS PRO Variable Speed Drive 750 W 1 Phase Altivar Series 230V AC 4.8 A ATV320U07M2B
Brand: RS PRO
SKU: 197718
Price: 546.25 USD
Availability: InStock



Category Inverter Drives Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	ATV320U07M2B
IP Rating	IP20
Drive Type	Variable Frequency
Mount Type	DIN Rail
Overall Length	45mm
Series	Altivar
Overall Width	245mm
Power Rating	750W
Maximum Operating Temperature	50°C
Output Frequency	0.1, 599Hz
Minimum Operating Temperature	-10°C
Interfaces	EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet
Number of Phases	1
Maximum Output Current	4.8A
Overall Depth	325mm
Minimum Supply Voltage	230V ac
Better World Claim	Saves Energy
Compatible Motor Type	Synchronous, Asynchronous Motor

Key Features

Power rating of 750 W suitable for small motor applications.
Single-phase input voltage of 230V AC supported.
Maximum output current of 4.8 A enables reliable motor operation.
Compatible with synchronous and asynchronous motor types for versatile use.
Variable frequency drive type ensures efficient speed regulation.
Robust IP20 rated enclosure suitable for industrial control panels.
Compact dimensions with 45mm length, 245mm width, and 325mm depth.
Operating temperature range from -10°C to 50°C for diverse environments.

Product Description

Schneider Electric ATV320U07M2B is a Variable Speed Drive designed for controlling single-phase synchronous and asynchronous motors. With a power rating of 750 W (0.75 kW) and a supply voltage of 230V AC, this compact drive is ideal for integration in automation and control cabinets using DIN rail mounting. Its design enables precise torque and speed management, including advanced flux vector control without the need for additional sensors.

The unit supports a maximum output current of 4.8 A and operates over a wide output frequency range from 0.1 Hz up to 599 Hz, allowing flexible motor speed control. It is built to withstand harsh industrial environments with an IP20 rating and robust IEC 60721-3-3 class 3C3 coated circuit boards, suitable for ambient temperatures up to 50°C.

The drive supports multiple industrial communication protocols such as EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet, facilitating integration into existing architectures. Safety features include five configurable safety functions to help meet stringent industrial safety requirements, configurable via SoMove software.

This Altivar series complies with international norms including CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849, IEC 60204-1, IEC 61158, IEC 61508, IEC 61784, and others, ensuring both safety and electromagnetic compatibility in industrial and manufacturing environments.

With options for mounting accessories, braking resistors, chokes, and EMC filters, the ATV320U07M2B is a versatile solution for modern automation demands. Power rating of 750 W suitable for small motor applications. Single-phase input voltage of 230V AC supported.

Maximum output current of 4.8 A enables reliable motor operation. Compatible with synchronous and asynchronous motor types for versatile use. Variable frequency drive type ensures efficient speed regulation. Robust IP20 rated enclosure suitable for industrial control panels.

Compact dimensions with 45mm length, 245mm width, and 325mm depth. Operating temperature range from -10°C to 50°C for diverse environments. Includes multiple communication interfaces such as EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet.

Meets international safety and EMC standards including CE, CSA, UL, and more. Explore more Schneider Electric products and automation solutions on EnvMart to enhance your industrial setups with trusted technology and efficiency.

Explore more products in our Inverter Drives category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The power rating of this variable speed drive is 750 W, making it suitable for small motor applications.

This model supports a maximum output current of 4.8 A, enabling reliable motor operation.

It is compatible with both synchronous and asynchronous motor types, providing versatility in applications.

The operating temperature range for this unit is from -10°C to 50°C, allowing it to function in diverse environments.

The output frequency range of this drive is from 0.1 Hz up to 599 Hz, allowing for flexible motor speed control.

The dimensions of this model are 45 mm in length, 245 mm in width, and 325 mm in depth.

It has a robust IP20 rated enclosure, suitable for industrial control panels.

This drive is designed for DIN rail mounting, facilitating easy integration into control cabinets.

This drive supports multiple industrial communication protocols including EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet.

The drive includes five configurable safety functions to help meet stringent industrial safety requirements, configurable via SoMove software.

This model complies with several international norms including CE, CSA, cUL, EAC, and IEC standards, ensuring safety and electromagnetic compatibility.

This model is classified as a variable frequency drive, which ensures efficient speed regulation for motor control.
