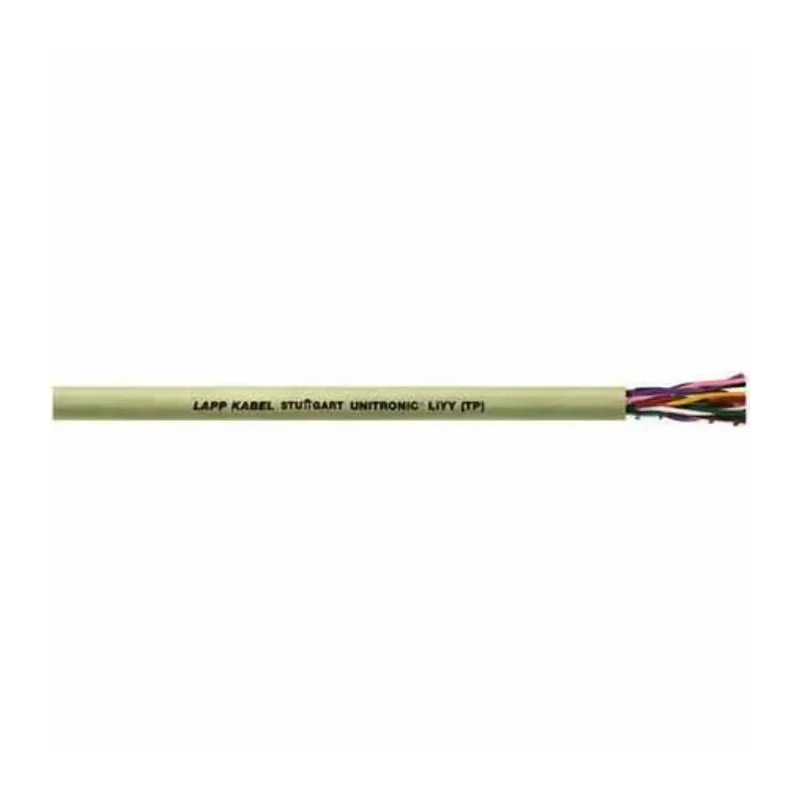

Lapp UNITRONIC LiYY Series Data Cable 3 Pairs 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride 0035102

Lapp 0035102 UNITRONIC LiYY Series Data Cable is a high-quality industrial cable comprising three twisted pairs of stranded bare copper conductors with a cross-sectional area of 0.14 mm² each and a total length of 100 meters. Designed with a grey polyvinyl chloride outer sheath, this cable provides excellent flexibility and flame retardant properties according to IEC 60332-1-2 and EN 60332-1-2 standards.

This unscreened cable is rated for a nominal voltage of 350 V and operates reliably within a temperature range of -5°C to 70°C. With an outside diameter of 4.9 mm, it is compact and ideal for applications requiring intricate cable routing and light mechanical stress tolerance.

The UNITRONIC LiYY cables are specifically engineered for instrumentation control, electronic control, and signal transmission in manufacturing plants, automated production facilities, and measurement equipment. They are well-suited for use in process control devices, computer systems, and other automation environments where flexibility and flame retardant properties are essential.

The cable's small bending radius enables easy installation in confined spaces without compromising performance. Although typically designed for indoor use in dry or damp conditions, they must be protected from UV exposure for outdoor applications.

Accessories compatible with this cable include various M12 to M32 Skintop Click cable glands that ensure secure and reliable cable terminations. The cable includes three twisted pairs for reliable data transmission. Cross-sectional area of each conductor is 0.14 mm² for effective signal handling.

Jacket material is durable polyvinyl chloride providing flame retardant properties. Operating temperature range from -5°C to 70°C ensures use in varied environments. Nominal outside diameter of 4.9 mm enables compact installations.

Stranded bare copper conductors provide excellent conductivity and flexibility. Flame retardant according to IEC 60332-1-2 and EN 60332-1-2 standards. Voltage rating of 350 V suitable for instrumentation and control applications.

Unscreened design suitable for dry or damp interiors, excluding outdoor exposure unless UV-protected. Manufactured in Germany under the UNITRONIC LiYY series.

These cables are critical for industrial, laboratory, manufacturing, and automation uses, providing reliable signal transmission with enhanced safety. Browse more cables from the Lapp range and explore related products in the Data Cable category on EnvMart.
