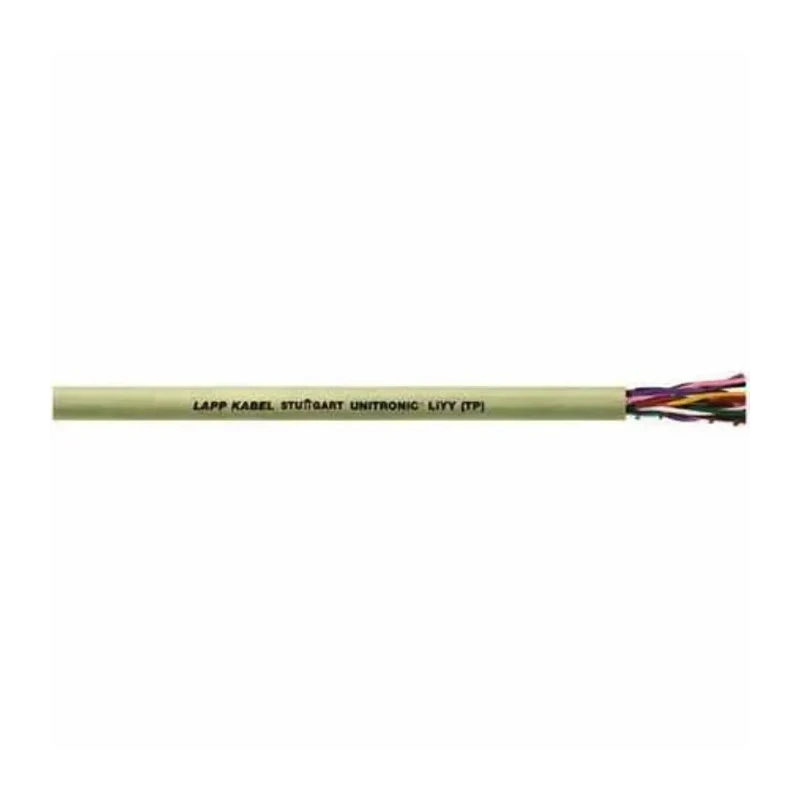

Lapp UNITRONIC LiYY Series Data Cable 4 Pairs 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride 0035103
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 350V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | 0035103 |
| Cable Length | 100m |
| Series | UNITRONIC LiYY |
| Outside diameter | 5.5mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EN 13501-6 and EN 50575 |
| Jacket Colour | Grey |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Pairs | 4 |
Key Features
- The cable consists of 4 twisted pairs with stranded bare copper conductors for flexible data transmission.
- The outer jacket is made of durable polyvinyl chloride, providing flame retardant properties.
- The cable supports a voltage rating of 350 V and operates reliably between -5°C and 70°C.
- It complies with EN 13501-6 and EN 50575 standards and is flame retardant per IEC 60332-1-2.
- Designed primarily for indoor use in dry or damp environments with a tough grey sheath.
- The cable is part of the UNITRONIC LiYY series and features small bending radii for easy installation.
- Applications include control, measurement, and automated production facilities.
- Compatible with various Lapp cable glands for secure and reliable connections.
Product Description
Lapp 0035103 UNITRONIC LiYY Series Data Cable is a finely engineered multi-pair Data Cable featuring 4 pairs of 0.14 mm² stranded bare copper conductors. The 100 meter length cable is sheathed in grey polyvinyl chloride (PVC) that provides excellent mechanical protection and flame retardance according to IEC 60332-1-2 and meets EN 13501-6 and EN 50575 standards.
The cable supports a voltage rating of 350 V and is suitable for operation in ambient temperatures from -5°C to 70°C. It is unscreened but designed for industrial and instrumentation control applications requiring flexible routing and signal integrity. The twisted pair conductor arrangement minimizes crosstalk and interference.
UNITRONIC LiYY cables are commonly used in process control devices, measuring equipment, and automated manufacturing environments. The flexible PVC jacket allows small bending radii for easy installation within control cabinets and machinery. Although not suitable for outdoor exposure without UV protection, it performs well in dry or damp interiors.
Features include multiple twisted pairs stranded in layers, flame retardant PVC outer sheath, and fine multi-strand copper conductors optimized for signal transmission. The cable must be paired with suitably rated accessories such as Lapp's M12 to M32 Skintop Click Cable Glands to ensure secure terminations.
The cable consists of 4 twisted pairs with stranded bare copper conductors for flexible data transmission. The outer jacket is made of durable polyvinyl chloride, providing flame retardant properties. The cable supports a voltage rating of 350 V and operates reliably between -5°C and 70°C.
It complies with EN 13501-6 and EN 50575 standards and is flame retardant per IEC 60332-1-2. Designed primarily for indoor use in dry or damp environments with a tough grey sheath. The cable is part of the UNITRONIC LiYY series and features small bending radii for easy installation.
Applications include control, measurement, and automated production facilities. Compatible with various Lapp cable glands for secure and reliable connections.
This cable is manufactured in Germany to high quality standards and is ideal for electronics, industrial automation, and instrumentation wiring installations requiring reliable data communication lines. Browse EnvMart’s collection of industrial cables and accessories for compatible products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 350 V.
The maximum operating temperature is 70°C.
It consists of 4 twisted pairs of stranded bare copper conductors.
The cable has a length of 100 meters.
The outer jacket is made of polyvinyl chloride (PVC).
It operates reliably between -5°C and 70°C.
This cable is unscreened.
It complies with EN 13501-6 and EN 50575 standards.
The outside diameter is 5.5 mm.
It is suitable for control, measurement, and automated production facilities.
This cable is manufactured in Germany.
The conductors are made of stranded bare copper.
