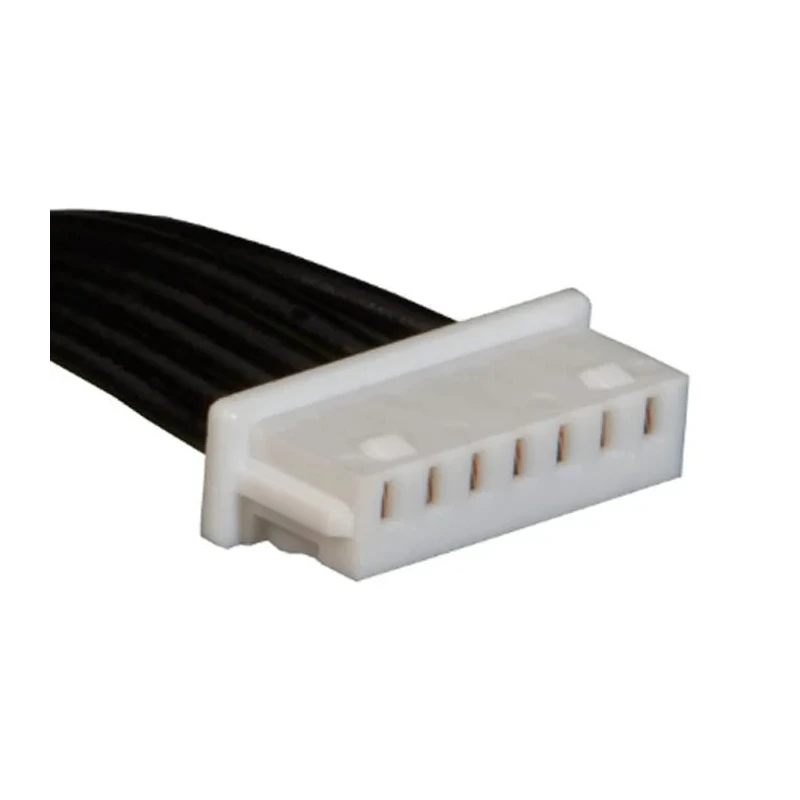

Molex 7 Way Female PicoBlade to 7 Way Female PicoBlade Wire to Board Cable, 300 mm 15134-0703
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Cable Length | 300mm |
| Series | 15134 |
| Standards/Approvals | 2011/65/EU RoHS ISO TS-16949 |
| Connector Type A | PicoBlade |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 7 |
| Number of Rows A | 1 |
Key Features
- Constructed using UL1061 discrete wires for ease of design.
- 7 contacts on each Female PicoBlade connector with 1 row configuration.
- Black jacket cable measuring 300 mm in length provides flexible wiring solutions.
- Friction lock design ensures secure mating to prevent accidental disconnects.
- Rated for 125 V with RoHS and ISO TS-16949 compliance for quality assurance.
- Suitable for use in home entertainment, industrial process controls, and prototyping applications.
- Compact 1.25 mm pitch connectors save space in dense wiring environments.
- Designed to mate with Molex Series 53261, 53047, 53398, and 53048 PicoBlade headers.
Product Description
Molex 15134-0703 is a 7 Way Female PicoBlade to 7 Way Female PicoBlade Wire to Board Cable measuring 300 mm in length. This cable assembly offers an industrial-grade connection solution with a compact PicoBlade connector design featuring a 1.25 mm pitch, suitable for low voltage applications rated at 125 V.
The cable is constructed using UL1061 discrete wires, providing ease of design and assembly in prototype and production environments. Each connector houses 7 contacts arranged in a single row, both female gender, with a black jacket cable length of 300 mm ensuring flexible routing options.
The friction lock feature on the connectors provides a secure mating to compatible wire-to-board headers, effectively preventing accidental disconnections caused by vibration or handling. The cable assembly meets important industry standards including RoHS compliance (2011/65/EU) and ISO TS-16949, underscoring its quality and reliability.
Applications for this cable include use in home entertainment systems, mobile devices, commercial vehicles, industrial process controls, and medical equipment where compact and dependable electrical connectivity is critical.
Constructed using UL1061 discrete wires for ease of design. 7 contacts on each Female PicoBlade connector with 1 row configuration. Black jacket cable measuring 300 mm in length for flexible wiring. Friction lock mechanism secures connection to PicoBlade headers.
Rated voltage of 125 V adheres to RoHS and ISO TS-16949 standards. Compatible with Molex Series 53261, 53047, 53398, and 53048 PicoBlade headers. Ideal for prototype design and global applications across multiple sectors.
Compact 1.25 mm pitch connector design optimizes space in assemblies.
Choose this Molex wire to board cable for dependable, compact, and industry-compliant electrical interconnections. Browse more Wire to Board Cable options and Molex products on EnvMart for your electrical and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 7 Way Female PicoBlade to 7 Way Female PicoBlade Wire to Board Cable measures 300 mm in length.
This cable is rated for a voltage of 125 V.
This model features PicoBlade connectors, specifically designed with 7 female contacts arranged in a single row configuration.
The cable is compliant with RoHS (2011/65/EU) and ISO TS-16949 standards, ensuring quality assurance.
The jacket of this wire to board cable is black.
This cable is designed to mate with Molex Series 53261, 53047, 53398, and 53048 PicoBlade headers.
It is suitable for use in home entertainment systems, mobile devices, commercial vehicles, industrial process controls, and medical equipment.
The connectors on this cable have a compact pitch of 1.25 mm.
The cable includes a friction lock design on the connectors that ensures secure mating and prevents accidental disconnects.
The country of origin for this cable is China.
Each connector on this cable has 7 contacts.
The cable is constructed using UL1061 discrete wires, which facilitate ease of design and assembly.
