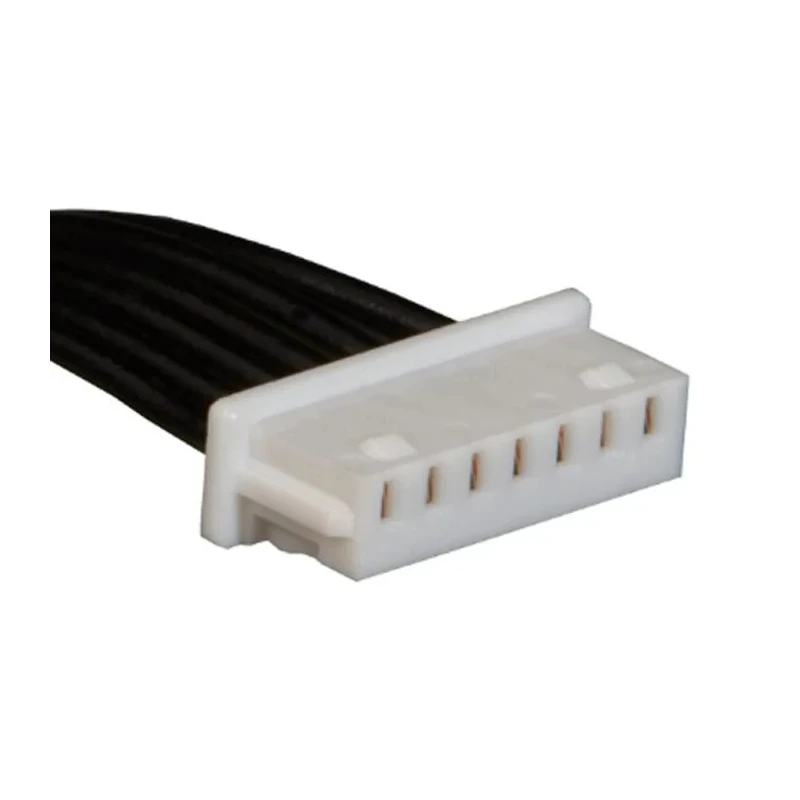

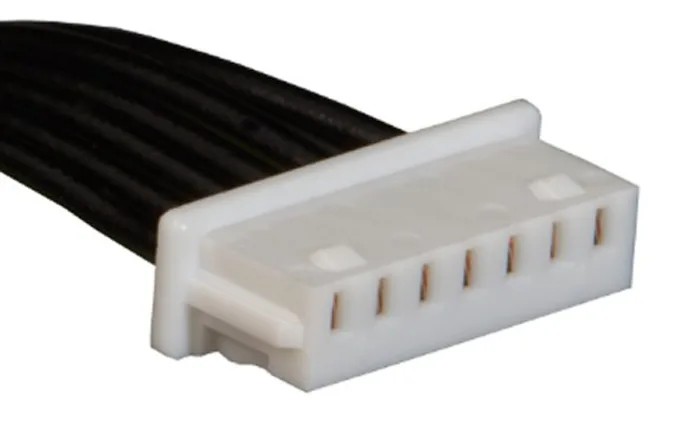

Molex 7 Way Female PicoBlade to 7 Way Female PicoBlade Wire to Board Cable 50 mm 125V UL1061 15134-0700

Molex 15134-0700 7 Way Female PicoBlade to 7 Way Female PicoBlade Wire to Board Cable 50 mm is engineered for reliable electrical connectivity in compact electronic devices and industrial applications. This wire-to-board cable features 7 female contacts on each end configured with PicoBlade connectors that have a 1.25 mm pitch, offering a compact and space-saving design ideal for prototyping and production.

The cable is constructed using UL1061 discrete wires, which facilitate design flexibility and ease manufacturing integration. Each connector includes a friction lock mechanism ensuring a secure mating to the corresponding header, preventing accidental unmating caused by vibration or handling.

This cable assembly operates at a voltage rating of 125V, making it suitable for low-voltage wiring needs such as home entertainment systems, home appliances, industrial process controls, mobile devices, and commercial vehicles. The black jacket color provides durability and assists in identifying cable types in multifaceted wiring harnesses.

The 7-way pin-to-pin configuration simplifies signal mapping by allowing each wire to connect correspondingly to the mating header without complex cable layout considerations. Molex ensures high-quality standards compliance with 2011/65/EU RoHS, ISO and TS-16949 certifications, and UL1061 discreet wire standards, confirming its suitability for stringent industrial and commercial environments.

The cable uses UL1061 discrete wires to simplify design and prototyping. Connectors have a friction lock to prevent accidental disconnection. Compact 1.25 mm pitch connectors save space in electronic assemblies. Rated for 125V operation suitable for low-voltage applications.

Jacket color is black for easy identification and standard compliance. Perfect for home appliances, industrial process controls, and commercial electronics. Connector configuration allows pin-to-pin mapping to reduce cable layout design time.

Meets 2011/65/EU RoHS compliance, ISO and TS-16949 standards, and UL1061.

This product is ideal for industrial, laboratory, commercial, HVAC, and manufacturing applications requiring reliable wire-to-board connections in compact spaces. Browse our Molex Wire to Board Cables for compatible headers and related accessories on EnvMart.
