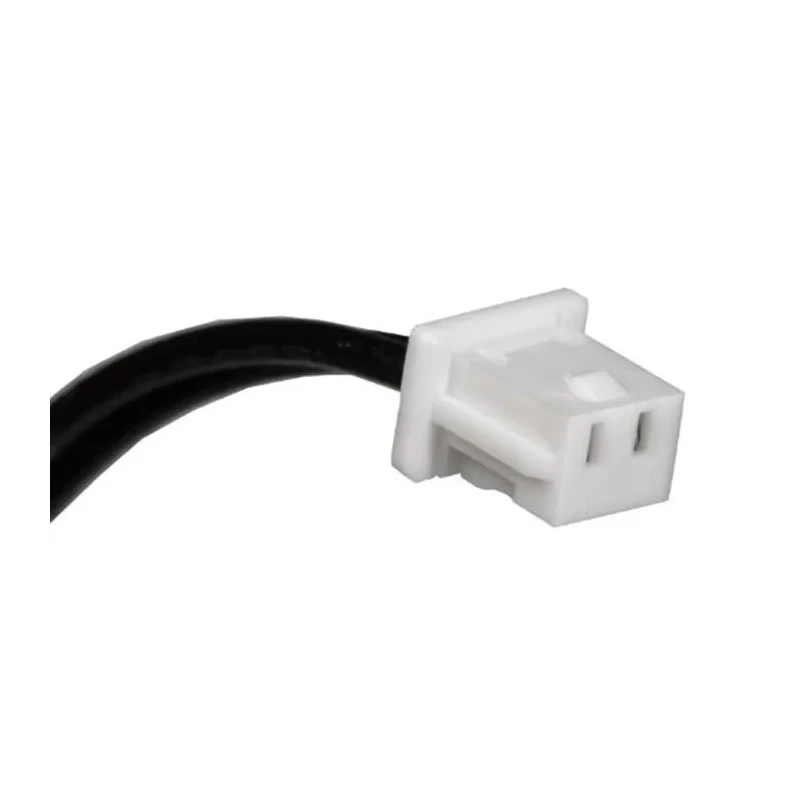

Molex 2 Way Female PicoBlade to 2 Way Female PicoBlade Wire to Board Cable 150 mm 125V 15134-0202

Molex 15134-0202 2 Way Female PicoBlade to 2 Way Female PicoBlade Wire to Board Cable, 150 mm length with 125V voltage rating, is designed for secure and compact electrical connections between wires and printed circuit boards (PCBs).

This cable assembly features PicoBlade female connectors on both ends, each with 2 contacts arranged in a single row. The small 1.25 mm pitch connector ensures a space-saving footprint ideal for compact electronics.

Constructed using UL1061 discrete wires, this cable allows for easier design and prototyping by enabling pin-to-pin single map configurations, which simplify signal assignments without additional cable layout design.

The friction locks integrated into the connector housings ensure a secure mechanical attachment to mating PCB headers, preventing accidental unplugging from vibration or mishandling. This makes the cable suitable for both permanent and temporary connections across a variety of industrial and commercial environments.

With a broad temperature operating range from -40°C to +85°C, the assembly is reliable under demanding conditions. It is widely applied in home entertainment systems, mobile device assemblies, commercial vehicle wiring, and industrial process controls.

The product meets multiple standards including ISO- and TS-16949, UL1061, and complies with 2011/65/EU RoHS directives, affirming its quality and environmental conformity. This wire to board cable features 2 way female PicoBlade connectors on both ends.

Compact connector design uses a small 1.25 mm pitch for space-saving applications. Constructed with UL1061 discrete wires for improved design and prototyping flexibility. Friction locks on connectors secure mating to PCB headers to prevent accidental disconnections.

Suitable for permanent and temporary connections in demanding environments. Wide operating temperature range from -40°C to +85°C ensures durability. Applications include home entertainment, mobile devices, commercial vehicles, and industrial process control.

RoHS compliant, meeting ISO- and TS-16949 and UL1061 standards.

Choose this Molex PicoBlade wire to board cable assembly for compact, reliable electrical interconnections in prototype and production applications. Explore similar cables and components in the Wire to Board Cable category at EnvMart for comprehensive connectivity solutions.
