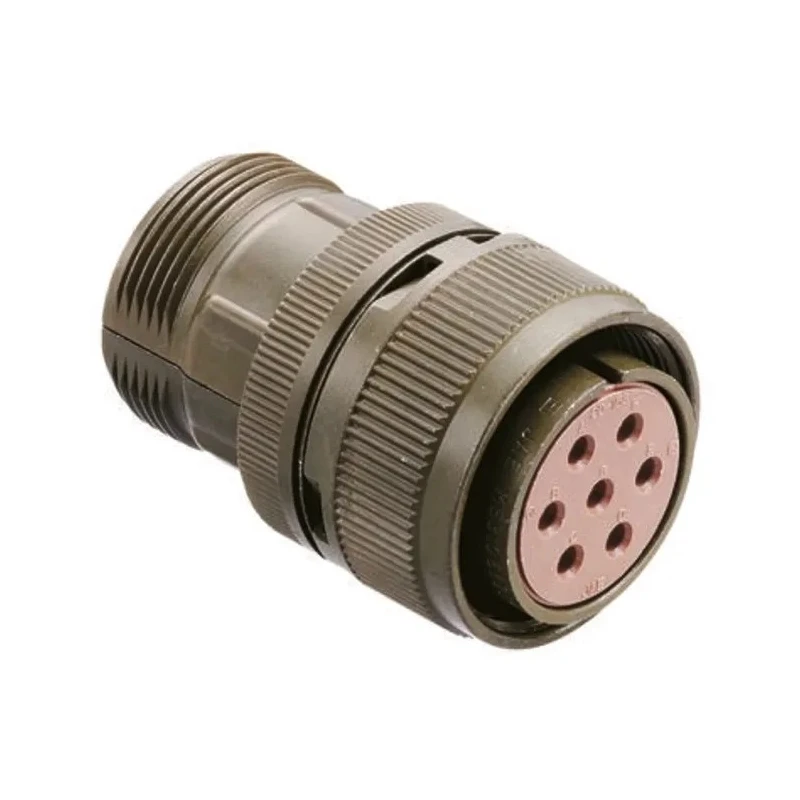

JAE Copper Alloy Straight 9 Way Cable MIL Spec Circular Connector Male Black, Female Contacts, Shell Size 20 N/MS3106B20-18S
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Colour | Black |
| Orientation | Straight |
| Current | 23A |
| Model | N/MS3106B20-18S |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Copper Alloy |
| Series | N/MS |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 20 |
| Military Standard | MIL-5015 |
| Connector Size | Standard |
| Shell Plating | Zinc |
Key Features
- The connector supports a current rating of 23A and a voltage rating of 500V.
- It has a shell size of 20 and complies with MIL-5015 military standards.
- Suitable for cable mount with solder termination type.
- Operates reliably between -30°C and 85°C temperature range.
- The connector housing and shell are made of zinc, with silver-plated copper alloy contacts.
- The connector size is standard and orientation is straight for ease of use.
- Designed and manufactured in Japan ensuring high quality and durability.
Product Description
JAE N/MS3106B20-18S is a high-quality MIL Spec Circular Connector designed for industrial and military applications requiring reliable electrical connections. This connector features a straight male configuration with 9 female contacts made from copper alloy, providing excellent conductivity and resistance.
With an operating voltage of 500V and current rating of 23A, it is suitable for powering critical systems within the specified temperature range of -30°C to 85°C. The shell size 20 connector utilizes a zinc housing and zinc plating on the shell to deliver robust mechanical protection while maintaining lightweight characteristics.
The connector is cable mount type with solder termination, facilitating secure wiring and installation. Silver plating on the contacts ensures corrosion resistance and optimal electrical contact quality.
Meeting MIL-5015 military standards, this connector is engineered for demanding environments including industrial, aerospace, defense, telecommunications, and other sectors where durability and performance are paramount.
Manufactured in Japan, JAE upholds strict quality standards ensuring each connector provides consistent performance for extended use. Its straight orientation and standard connector size optimize installation in complex harnesses and systems.
The connector supports a current rating of 23A and voltage rating of 500V. Housing and shell are made of durable zinc with zinc plating for corrosion resistance. Features 9 female contacts with silver plating for reliable signal and power transmission.
Complies with MIL-5015 military standard ensuring ruggedness and reliability. Operating temperature range from -30°C to 85°C suitable for harsh environments. Termination type is solder, enabling strong, secure cable connections.
Designed for cable mount applications with a straight male connector orientation.
This JAE Mil Spec Circular Connector is an ideal solution for industrial electronics, military equipment assembly, aerospace wiring harnesses, and commercial power and signal distribution systems. Its robust construction and verified standards compliance support safety, longevity, and performance.
Explore more high precision connectors and related electronic components at EnvMart to meet your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 23A and a voltage rating of 500V.
It operates reliably between -30°C and 85°C.
The housing and shell are made of zinc, while the contacts are made of copper alloy with silver plating.
This connector features 9 female contacts.
It uses a solder termination type, allowing for secure cable connections.
Yes, it complies with MIL-5015 military standards, ensuring ruggedness and reliability.
The shell size of this connector is 20.
The connector has a straight orientation for ease of use.
This connector is manufactured in Japan, ensuring high quality and durability.
It is designed for industrial electronics, military equipment assembly, aerospace wiring harnesses, and commercial power and signal distribution systems.
The connector is black in color.
The connector gender is male, while it has female contacts.
