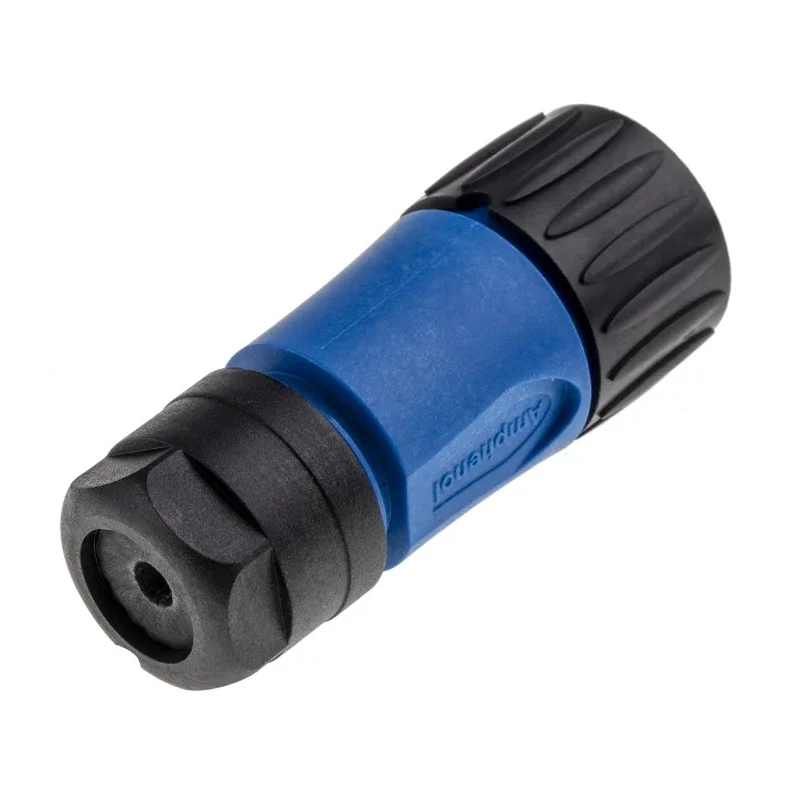

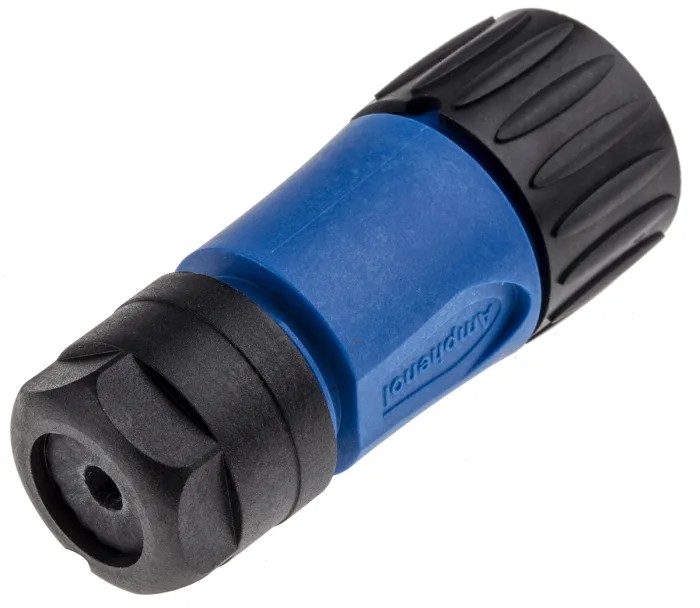

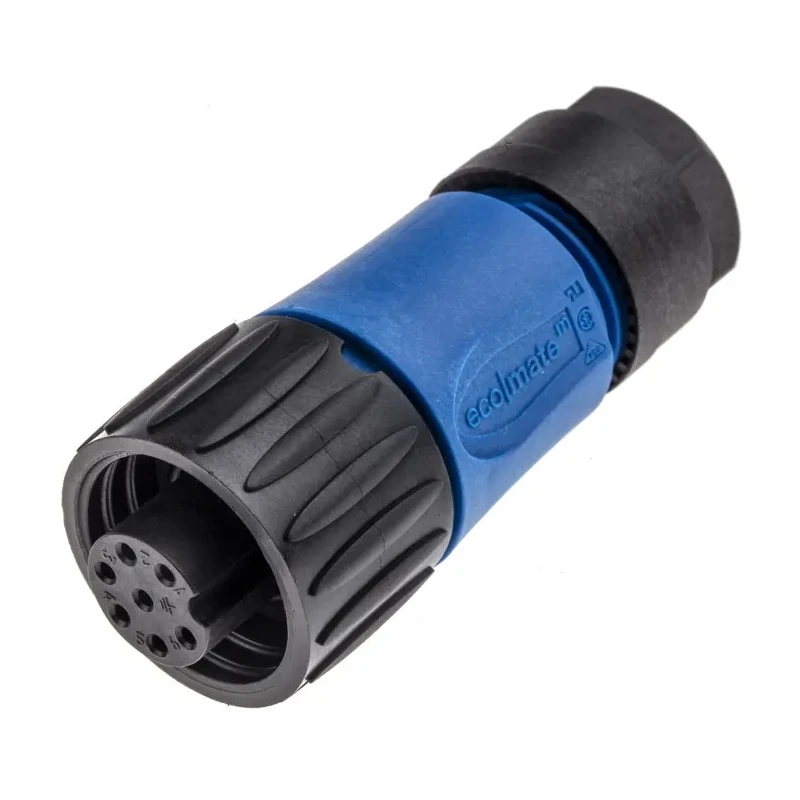

Amphenol Industrial Circular Connector Cable Socket Female 6 Contacts IP67 Thermoplastic Ecomate M Series C01610D00600010
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Model | C01610D00600010 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | Ecomate M |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 6+PE |
| Contact Plating | Gold, Silver |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shell Size | 30 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Compact and robust design with screw lock connection for secure mating.
- Female contact gender, bayonet mating type, and straight orientation.
- Thermoplastic housing material suitable for industrial use.
- Operating temperature range from -40°C to 125°C.
- Gold and silver plated contacts for reliable conductivity.
- Pre-loaded ground contact and ergonomic housing for secure handling.
- IP65/67 protection class when mated, ideal for harsh industrial settings.
- Suitable for plant construction, machine building, measurement, control, and power supply applications.
Product Description
Amphenol Industrial C01610D00600010 circular connector is a 6-contact cable-mount socket connector from the Eco Mate M series. It features a compact, robust thermoplastic housing with a screw lock connection, providing secure and reliable performance in industrial environments. Designed to meet the demanding standards of plant construction and machine building, this connector is rated IP67, ensuring protection against dust and water ingress when mated according to DIN EN 60526.
The connector employs gold and silver plated contacts with a female contact gender and crimp termination. Its shell size is 30 mm, with a bayonet mating type and straight orientation for easy and secure connections. The operating temperature range spans from -40°C up to 125°C, making it suitable for various industrial conditions. The ergonomic design includes a pre-loaded ground contact for enhanced performance and safety.

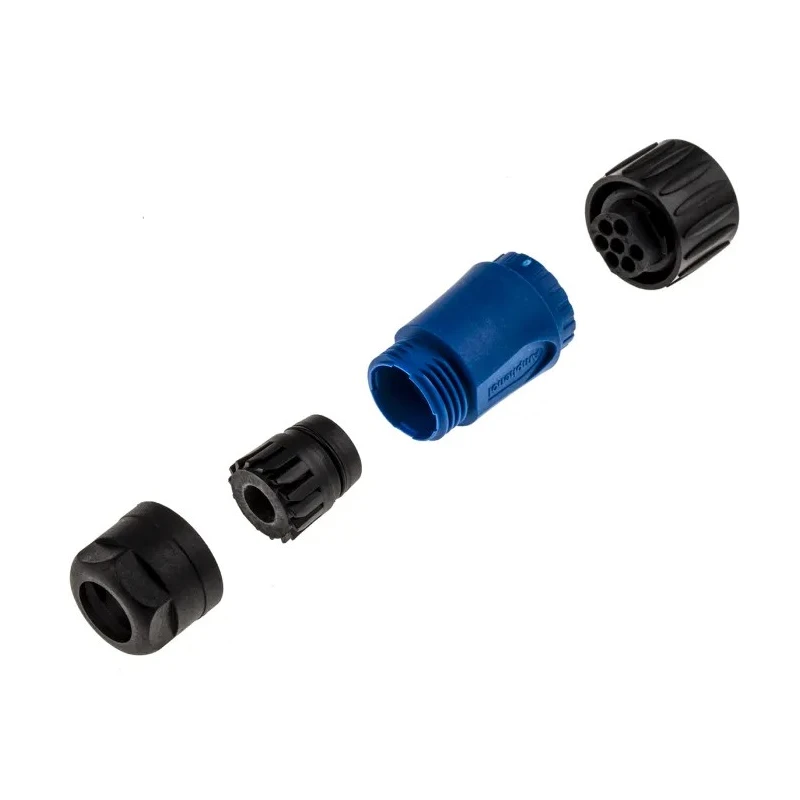

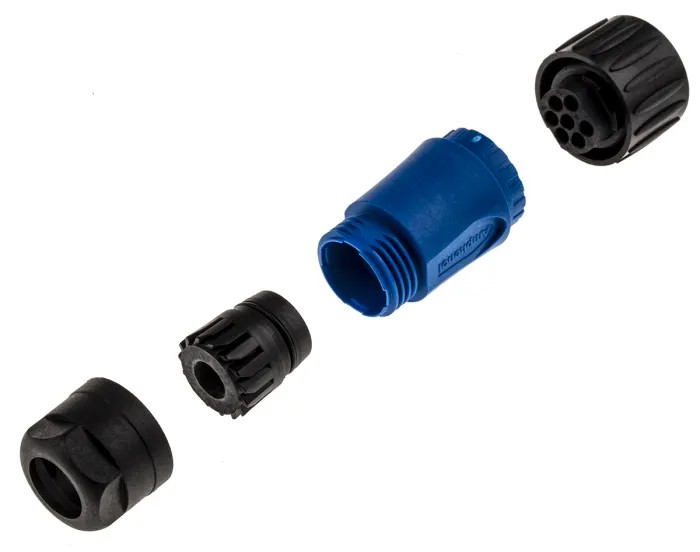

Assembly is quick and user-friendly, with included fittings such as strain relief components, mounted gaskets, cable glands, and clamping rings. The robust screwed cable gland provides a secure connection to prevent cable damage or disconnection. This connector series is impact, vibration, and UV resistant, providing durability in tough environments.
Typical applications include plant construction, machine building industries, measurement and control technologies, as well as power supply systems requiring reliable, high-quality connectors with excellent environmental protection.
Compact and robust design with screw lock connection for secure mating. Female contact gender with gold and silver plating for optimal conductivity. Thermoplastic housing material, rated IP67 for dust and water protection.
Wide operating temperature range from -40°C to 125°C. Ergonomic design with pre-loaded ground contact for safe handling. Bayonet mating type with straight orientation for reliable connections. Includes mounting fittings such as strain relief, gaskets, cable glands, and clamping rings.
Suitable for industrial applications in plant construction and machine building. Durable and resistant to impact, vibration, and UV exposure. Explore more Industrial Circular Connectors and related products at EnvMart for reliable industrial and electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an IP67 rating, which provides protection against dust and water ingress when mated according to DIN EN 60526.
It operates within a temperature range of -40°C to 125°C, making it suitable for various industrial conditions.
This connector features 6 contacts, including a pre-loaded ground contact for enhanced performance.
It uses crimp termination, which allows for secure and reliable connections.
The housing is made of thermoplastic material, and the contacts are plated with gold and silver for optimal conductivity.
The shell size of this connector is 30 mm, which is standard for its type.
It features a bayonet mating type, which ensures secure and reliable connections.
It is suitable for applications in plant construction, machine building, measurement, control technologies, and power supply systems.
Included fittings are strain relief components, mounted gaskets, cable glands, and clamping rings for secure assembly.
The connector has a straight orientation, making it easy to connect in various setups.
The connector is manufactured in the Czech Republic.
This model is designed to be resistant to impact, vibration, and UV exposure, making it suitable for tough environments.
