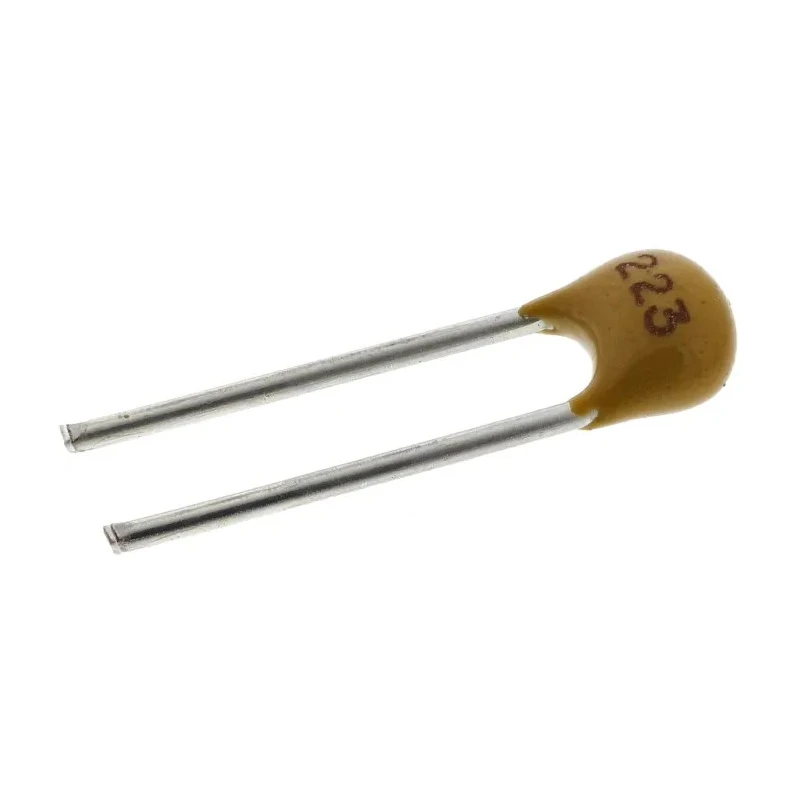

KEMET Multilayer Ceramic Capacitor 22 nF 100V dc Through Hole Radial ±10 % X7R Dielectric C320C223K1R5TA
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 100V dc |
| Brand | KEMET |
| Height | 6.6mm |
| Length | 5.08mm |
| Model | C320C223K1R5TA |
| Packaging | Tape & Reel |
| Width | 3.81mm |
| Mount Type | Through Hole |
| Series | Goldmax 300 |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | REACH, UL, RoHS |
| Lead Diameter | 0.51mm |
| Dielectric | X7R |
| Suppression Class | Class I |
| Lead Spacing | 2.54mm |
Key Features
- This capacitor features a capacitance of 22 nF suitable for various electronic circuits.
- It operates at a maximum voltage of 100V dc ensuring reliability under specified conditions.
- The through-hole radial mounting allows for durable and stable PCB integration.
- Constructed with X7R dielectric material offering temperature stability from -55°C to 125°C.
- Its compact size with dimensions 5.08 mm length, 3.81 mm width, and 6.6 mm height fits standard electronic assemblies.
- The capacitor exhibits a Class I suppression characteristic suitable for filtering and decoupling at high frequencies.
- Leads have a 2.54 mm spacing with 0.51 mm diameter ensuring compatibility with conventional PCB layouts.
- Supplied in tape and reel packaging to facilitate automated assembly processes.
Product Description
KEMET C320C223K1R5TA is a high-quality multilayer ceramic capacitor with a capacitance of 22 nF and maximum voltage rating of 100V dc. Featuring an X7R dielectric with ±10 % tolerance, this component is engineered for industrial, telecommunications, aerospace, medical, and military electronic applications requiring stable and reliable performance.
This capacitor is designed for through hole radial mounting to provide mechanical robustness in printed circuit boards, with lead spacing of 2.54 mm and lead diameter of 0.51 mm. The compact dimensions of 5.08 mm length, 3.81 mm width, and 6.6 mm height allow it to fit in space-constrained electronic assemblies.
Constructed under the Goldmax 300 series, the capacitor is conformally coated, exhibiting low equivalent series resistance (ESR) at high frequencies and Class I suppression class rating, making it suitable for bypass, decoupling, filtering, sample and hold, and timing circuits. It is RoHS, UL, and REACH compliant to meet environmental and safety standards.
Capacitance of 22 nF with ±10 % tolerance ensures accuracy in signal conditioning. Voltage rating of 100V dc supports robust operation in power-sensitive circuits. Through hole radial termination assures strong mechanical and electrical connection.
X7R dielectric provides thermal stability between -55°C and 125°C operating temperatures. Compact size facilitates integration in dense electronic designs. Class I suppression class aids efficient filtering at high frequencies.
Packaging in tape & reel format supports automated PCB assembly.
This multilayer ceramic capacitor is manufactured in Mexico and is ideal for industrial, laboratory, aerospace, telecommunications, and medical equipment requiring dependable passive components.
Browse the Electronics & Electricals category for more high-performance Multilayer Ceramic Capacitors and electronic components at EnvMart to fulfill your project or production needs efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 22 nF.
It operates at a maximum voltage of 100V dc.
This capacitor is constructed with X7R dielectric material.
The dimensions are 5.08 mm in length, 3.81 mm in width, and 6.6 mm in height.
The lead spacing is 2.54 mm, with a lead diameter of 0.51 mm.
It operates within a temperature range of -55°C to 125°C.
It is supplied in tape and reel packaging, facilitating automated assembly processes.
This model exhibits a Class I suppression characteristic, suitable for filtering and decoupling at high frequencies.
It is compliant with REACH, UL, and RoHS standards.
This capacitor features a through-hole radial mounting type.
It is part of the Goldmax 300 series.
The capacitor is manufactured in Mexico.
