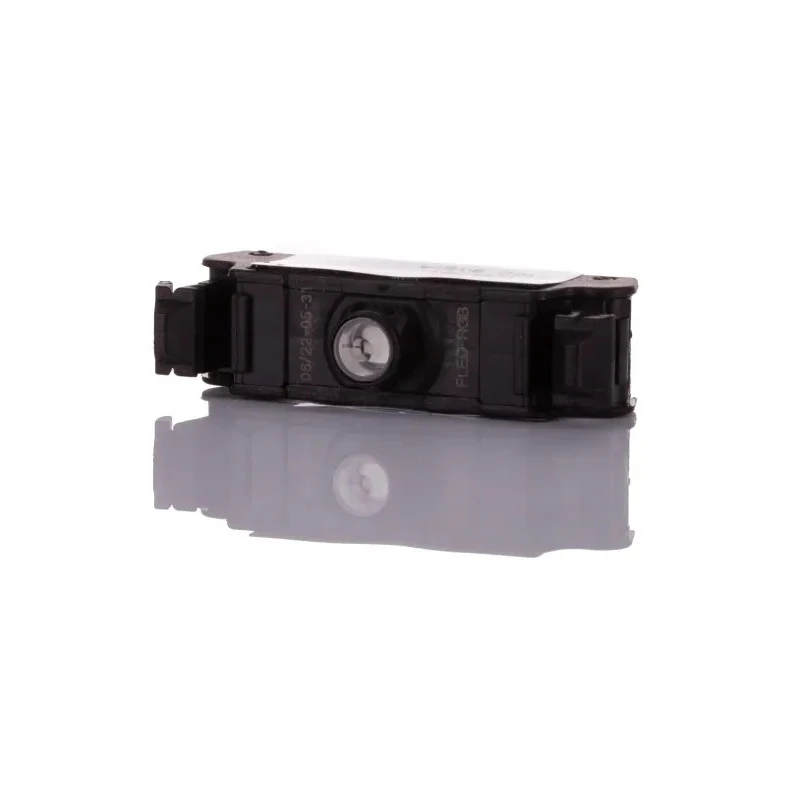

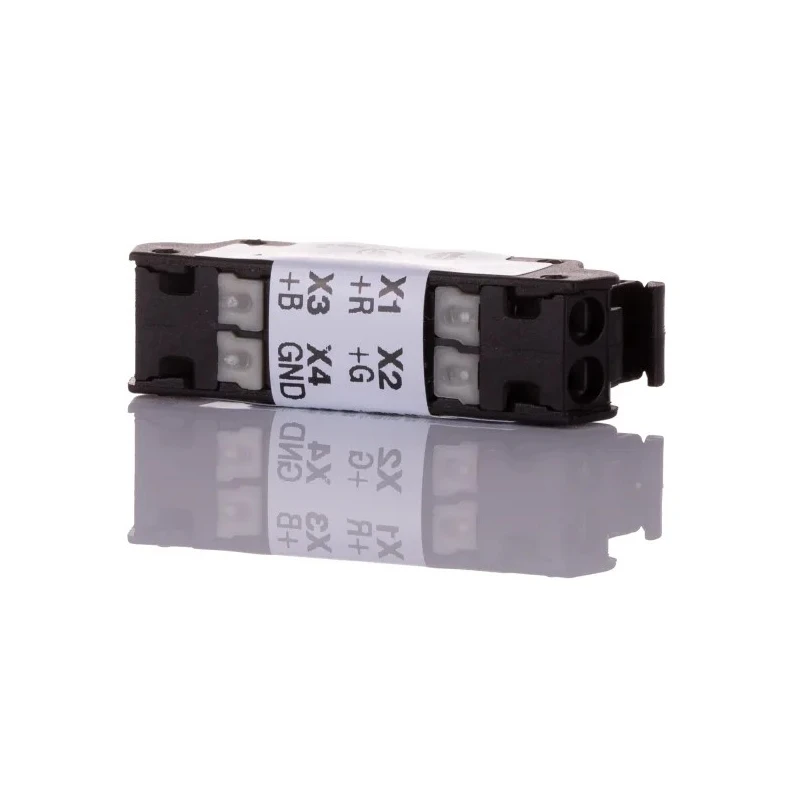

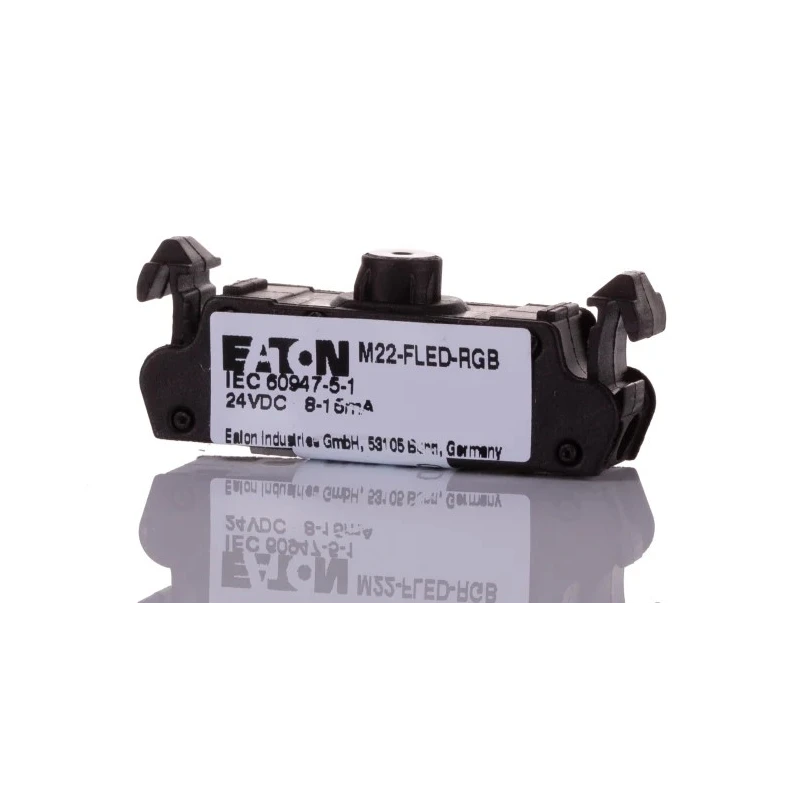

Eaton RMQ Titan M22 Series Light Block LED Indicator, 24V DC, Blue Green Red, Model 180800 M22-FLED-RGB

Eaton 180800 M22-FLED-RGB RMQ Titan M22 Series Light Block is a high-quality LED indicator designed for push button switch panels in industrial automation and electrical control systems. Operating at 24V DC and consuming merely 0.36W, this light block efficiently illuminates control points with bright Blue, Green, and Red LEDs for clear status indication and operational feedback.

This compact LED block has dimensions of 38mm height, 14.6mm length, and 10mm width, making it ideal for applications with limited installation space. Its IP20 ingress protection rating offers touch protection and defense against objects larger than 12mm, which suits most industrial environments requiring panel mount indicators.

The device features a long mechanical lifespan of up to 100,000 hours, providing dependable performance even in continuous operation conditions. It also supports a wide operating temperature range from -25°C to +70°C, enabling usage in harsh and variable temperature industrial applications.

With its push-in tool-less terminals, this Eaton light block enables easy and fast mounting behind actuators without the need for specialist tools, shortening installation time and minimizing downtime. The LED block withstands 4000V AC surge voltage, providing reliable protection against electrical transient events.

Compliance with major standards including UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91 and CE marking ensures it meets rigorous industrial safety and performance requirements.

This LED block supports Blue, Green, and Red illumination colours for varied visual signals. The unit operates at 24V DC with a low current rating of 15.8mA for energy efficiency. It features a compact size with dimensions of 38mm height, 14.6mm length, and 10mm width suitable for limited space installations.

IP20 rating ensures protection against touch and objects larger than 12mm, suitable for industrial environments. Mechanical lifespan is rated at 100,000 hours for long-lasting reliability in harsh industrial settings. Wide operating temperature range from -25°C up to 70°C enables application in diverse climates.

Quick push-in installation without specialized tools allows easy mounting behind actuators. Compliance with UL 508, IEC/EN 60947-5, CSA standards, and CE marking assures safety and performance adherence.

This Eaton RMQ Titan M22 LED Light Block is commonly employed in industrial automation, manufacturing control panels, machine operation status indication, and electrical equipment signalling. Its robust construction and standard compliance make it suitable for laboratory, HVAC, agricultural machinery, commercial machinery, and manufacturing use cases requiring precise visual feedback via push button indicators.
