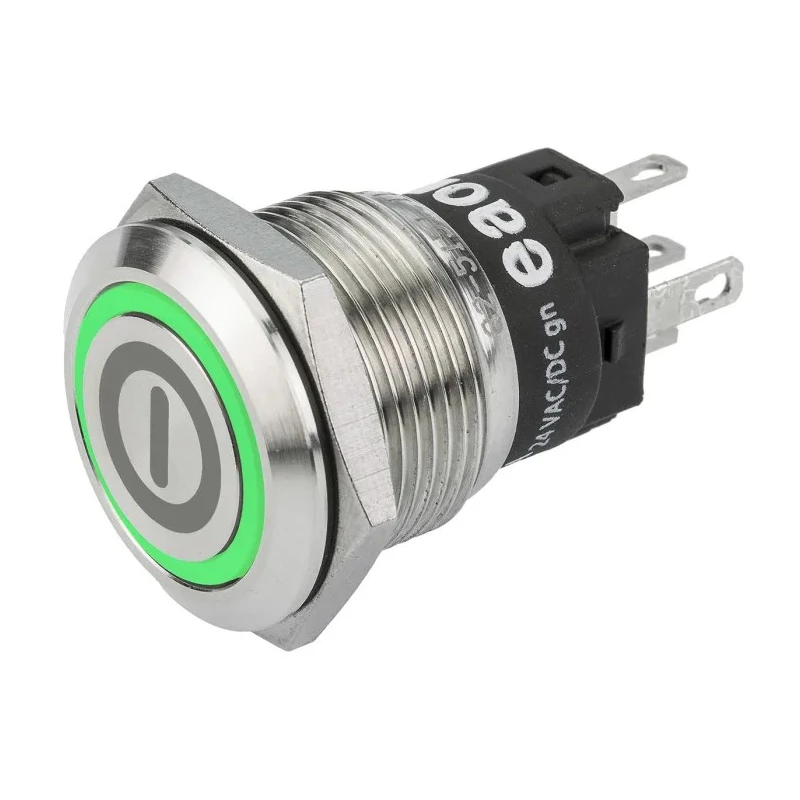

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19 mm Cutout, SPDT, Green LED, IP65 82-5151.1134.B001



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
Model	82-5151.1134.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	cUL, UL, CB, CCC
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Constructed with vandal resistant stainless steel housing ensuring IK10 impact resistance and frontal protection up to IP67.
Features a round silver actuator with green LED illumination providing excellent tactile feedback.
Rated for 240 V dc and 240 V ac contact voltages with a maximum contact current of 3A.
Operates reliably within temperature range of -30°C to 70°C for harsh industrial environments.
Designed for exposed public areas, medical equipment, audio/video, building management, and factory machinery.
Meets international standards including cUL, UL, CB, and CCC certifications for reliable industrial use.
Compact length of 34.5 mm ensures easy panel integration and mounting flexibility.

Product Description

The EAO 82-5151.1134.B001 Illuminated Push Button Switch is a premium momentary switch designed for panel mounting with a 19 mm cutout size. It features a SPDT contact configuration and a green LED illumination, built for high durability with vandal resistant stainless steel housing. This robust switch complies with IK10 impact resistance and frontal protection up to IP67, making it suitable for harsh industrial and public environments.

The actuator is round with a silver color finish, providing a visually clear and reliable switch interface. It supports contact voltages up to 240 V dc and 240 V ac, along with a maximum switching current rating of 3A, ensuring flexible operation across various applications.

Operating temperature ranges from -30°C to 70°C, enabling use in both low and high temperature conditions in sectors such as industrial automation, medical devices, audio and video equipment, building management systems, and factory machinery.

This switch series also meets multiple international standards including cUL, UL, CB, and CCC certifications, ensuring reliability and compliance for critical industrial use cases. The 34.5 mm length of the switch facilitates easy mounting and panel integration with an IP65 and IP67 ingress protection rating for water and dust resistance.

Vandal resistant design with IK10 impact resistance and IP67 frontal protection. Round silver actuator with green LED illuminated option. Momentary switch operation with SPDT contact configuration. Supports 240 V dc/ac contact voltage and 3A contact current.

Wide operating temperature range from -30°C to 70°C. Complies with cUL, UL, CB, and CCC standards. Compact length dimension of 34.5 mm for panel mounting.

Typical industrial applications include exposed public areas, medical equipment, audio and video equipment, building management, and factory automation machinery. This product offers excellent tactile feedback and over one million reliable switching cycles, making it ideal for demanding environments.
