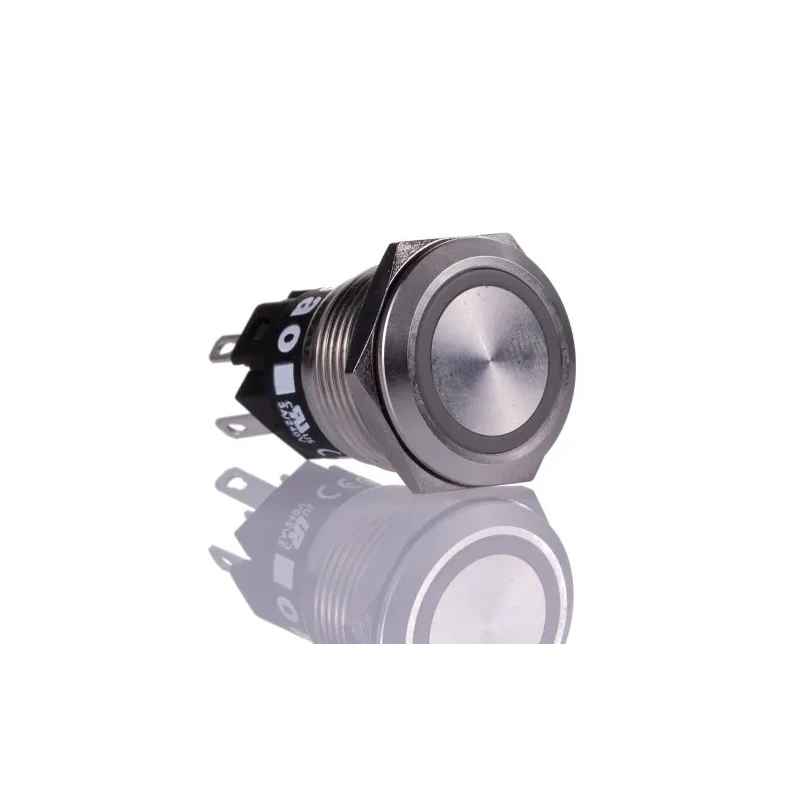

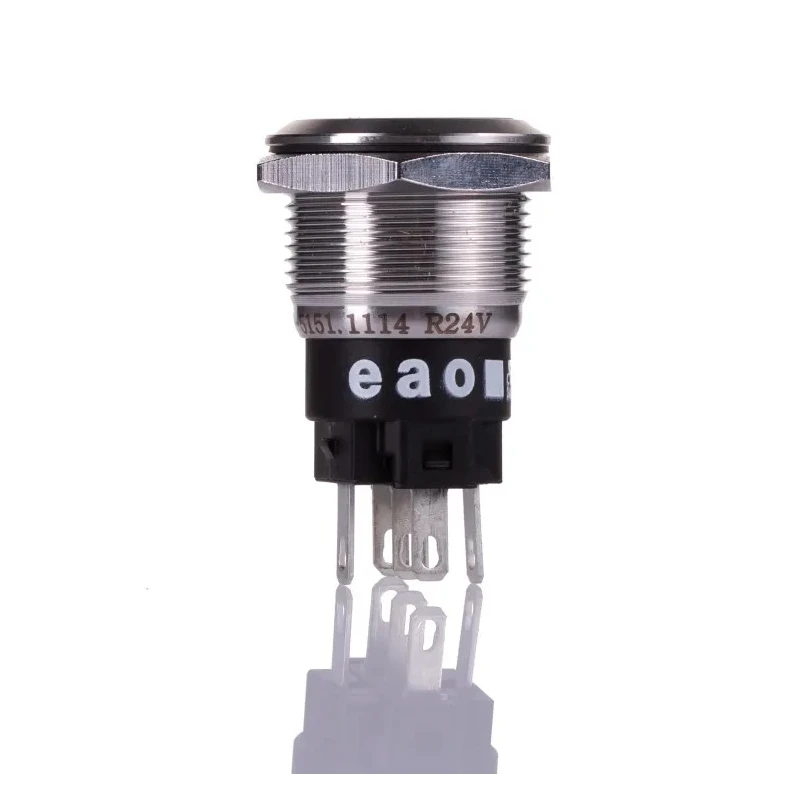

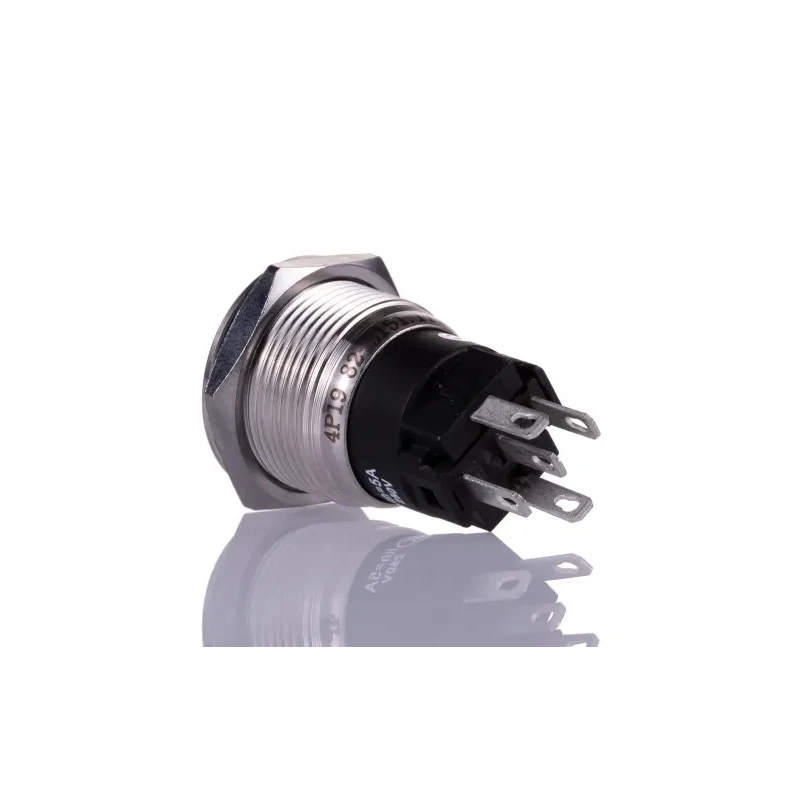

EAO 82 Series Illuminated Panel Mount Momentary Push Button Switch, SPDT, Red LED, 19 mm Cutout, IP65/IP67, 240 82-5151.1114



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch is designed for panel mounting with a compact 19 mm cutout diameter.
It features a momentary switch operation suitable for short-term control commands.
The contact configuration is Single Pole Double Throw (SPDT) for versatile circuit control.
Red LED illumination provides clear visual status indication during operation.
The switch has an IP65 and IP67 rating, providing protection against dust and water ingress.
Operates at 240 V AC/DC voltage suitable for industrial electrical systems.
Robust stainless steel construction offers corrosion resistance and vandal protection, rated IK10 impact resistance.
Designed to withstand operating temperatures from -30°C to +70°C.

Product Description

The EAO 82-5151.1114 is an illuminated momentary push button switch designed for panel mounting applications, featuring a compact 19 mm cutout. Engineered by EAO, this switch is part of the robust 82 Series, recognized for its durability and reliability in demanding industrial environments.

Constructed with stainless steel housing, it meets IK10 impact resistance standards and offers IP65 and IP67 ingress protection, making it resistant to dust and submersion in water. This makes it ideal for exposed, heavy-duty use in industrial machinery, manufacturing facilities, lift systems, and self-service equipment.

The switch features a Single Pole Double Throw (SPDT) contact configuration with silver contacts known for high conductivity and corrosion resistance. It operates safely at 240 V AC/DC, providing versatile electrical compatibility. The actuator style is a round, silver-colored button that illuminates with a red LED for clear operational feedback.

This momentary switch is optimized for brief control commands, offering more than 1 million reliable operational cycles and excellent tactile feedback. It operates efficiently with a low current draw of 10 mA, making it suitable for energy-conscious applications. Its installation is straightforward with a standard 2.8 x 0.5 mm plug connection for hand soldering.

Panel mount push button switch with 19 mm cutout diameter. Momentary operation for short-term control tasks. SPDT contact configuration with silver contacts for durability. Red LED illumination for clear visibility. Ingress protection rating IP65 and IP67 for dust and water resistance.

IK10 vandal resistance, suited for exposed public and industrial areas. Operating temperature range from -30°C to +70°C. Low 10 mA operating current for energy efficiency. Easy installation with standard plug size for soldering.

Robust stainless steel construction resistant to corrosion and impact.

Commonly used in industrial machinery, manufacturing, lift equipment, and self-service terminals, the EAO 82 Series push button switch offers reliable performance in challenging environments.
