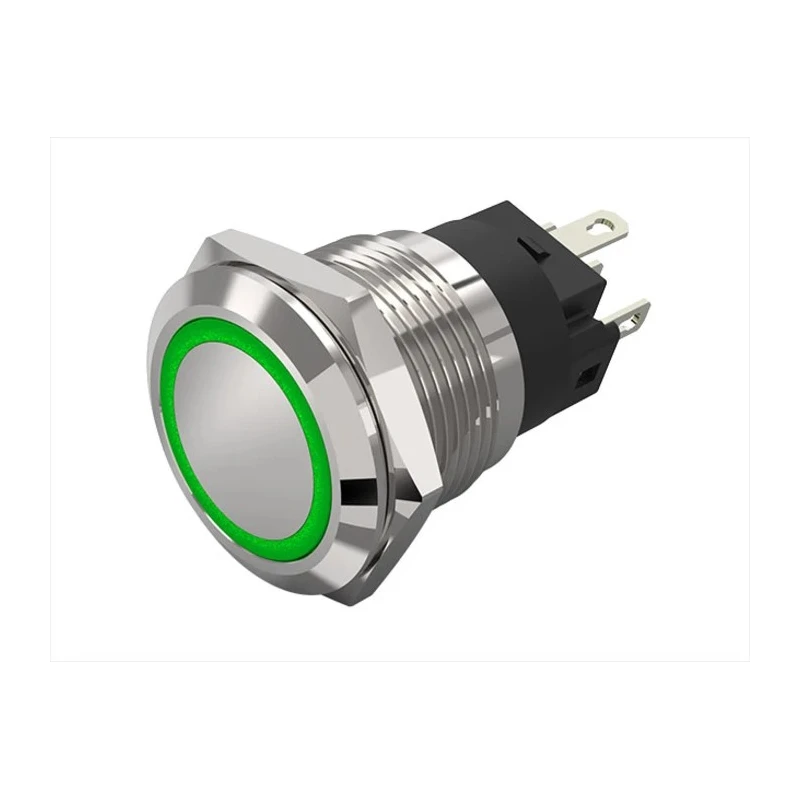

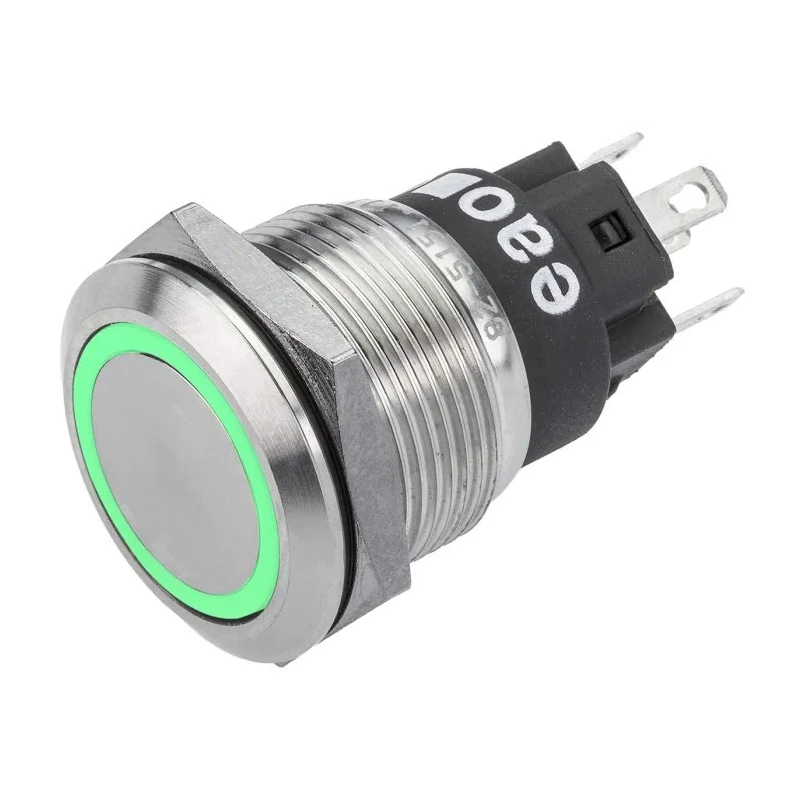

EAO 82 Series Illuminated Momentary Push Button Switch, Panel Mount, 19 mm Cutout, SPDT, Green LED, IP65 IP67 82-5151.1134



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	cUL, CCC, CB, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Stainless steel lens and bezel provide corrosion and impact resistance.
Momentary switch operation requires holding down to activate circuits.
SPDT contact configuration supports multiple circuit control.
Green LED illumination offers clear operational status indication.
Rated IP65 and IP67 for dust and water ingress protection.
Operates at 240 V dc and 240 V ac contact voltages.
Silver contact material ensures high conductivity and corrosion resistance.
Suitable for harsh environments with operating temperatures from -30°C to 70°C.

Product Description

EAO 82-5151.1134 is a high-quality illuminated momentary push button switch engineered for industrial and automation control panel applications. It features a robust stainless steel lens and bezel that ensure resistance to corrosion and mechanical impact, making it ideal for harsh environments.

This switch requires momentary activation, meaning the button must be pressed and held for the circuit to remain active. It has a Single Pole Double Throw (SPDT) contact configuration, enabling it to control multiple circuits reliably.

The switch illumination is provided by a green LED, providing a clear and immediate visual indication of circuit status, enhancing operational safety and usability.

Designed for panel mounting, it fits a 19 mm diameter cutout and has a round actuator style for ergonomic operation. The switch is rated IP65 and IP67, ensuring effective protection against dust ingress, water jets, and temporary immersion up to 1 meter for 30 minutes, suitable for damp and clean environments.

The electrical ratings of the switch include contact voltages of 240 V dc and 240 V ac with a switch contact current of 3 A. The silver contact material guarantees excellent conductivity and durability against corrosion. The operating temperature range from -30°C to 70°C ensures reliability across diverse industrial conditions.

Corrosion-resistant stainless steel housing and bezel for durability. Momentary switch action for controlled operation. SPDT contact configuration for versatile circuit management. Green LED provides visual feedback of switch status.

IP65 and IP67 ratings protect against dust and water ingress. Compliant with cUL, CCC, CB, and UL safety standards.

This EAO 82 series Push Button Switch is suitable for factory automation, medical equipment, arcade machines, and other industrial uses requiring robust and reliable manual control. Its vandal-resistant design supports IK10 impact protection, making it ideal for exposed public areas and harsh operational environments.
