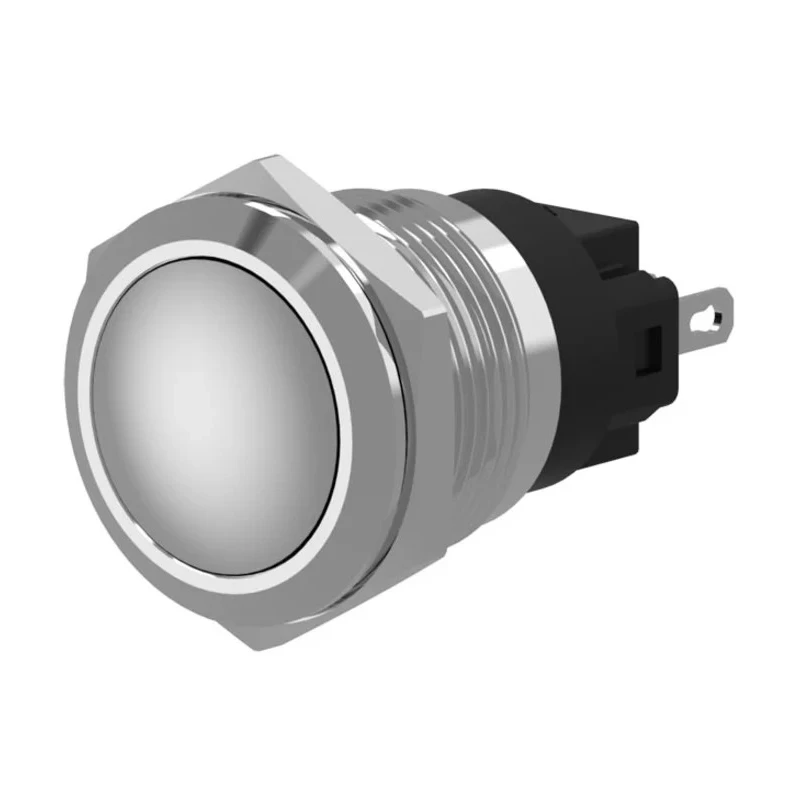

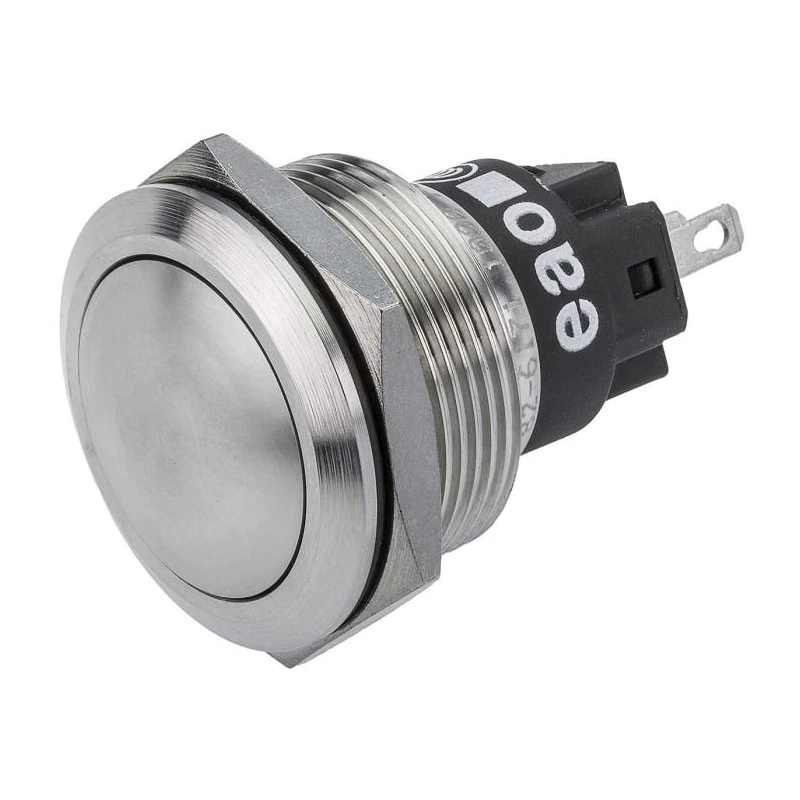

EAO 82 Series Push Button Switch Momentary Panel Mount 22.3 mm Cutout SPDT IP65 IP67 240 V dc 240 V ac 82-6171.1000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	36.3mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Constructed from robust stainless steel for impact and corrosion resistance.
Flush mounting design reduces risk of damage and accidental activation.
Gold-plated silver contacts ensure high conductivity and corrosion resistance.
Wide operating temperature range from -30°C to 70°C.
IP rating of IP65 and IP67 ensures dust-tight and water immersion protection.
Switch contact current rating of 3A for reliable switching performance.
Compact front diameter of 25 mm for minimal mounting space.
Long mechanical lifespan with over one million cycles of operation.

Product Description

The EAO 82-6171.1000 is a high-quality momentary push button switch designed for panel mounting applications requiring a cutout size of 22.3 mm. It features a single-pole double-throw (SPDT) contact configuration and supports a contact voltage of 240 V dc and 240 V ac with a switch contact current rating of 3A.

Its durable stainless steel construction provides excellent resistance to impact and corrosion, making it suitable for use in harsh industrial environments including medical, pharmaceutical, audio, video equipment, security gates, and industrial automation systems. The flush mounting design minimizes the risk of damage or accidental activation, enhancing safety.

The switch incorporates gold-plated silver contacts for reliable conductive performance with corrosion resistance. It offers a wide operating temperature range from -30°C to +70°C and meets IP65 and IP67 ingress protection standards, ensuring dust-tight and protection against water immersion.

With a compact front diameter of 25 mm, the device requires minimal panel space and offers tactile feedback with a long mechanical life exceeding one million cycles. This vandal-resistant switch meets IK10 impact resistance standards and is certified to CB, CCC, cUL, and UL specifications, ensuring suitability for demanding applications including exposed public areas and factory equipment.

Robust stainless steel housing ensures durability and corrosion resistance. Gold-plated silver contacts provide reliable and corrosion-resistant connections. Flush mounting reduces accidental switch activation risks. IP65 and IP67 ratings provide excellent ingress protection.

Vandal resistant with IK10 impact protection rating. Wide temperature operation between -30°C and 70°C. Long operational life exceeding one million cycles. Compact size with 22.3 mm panel cutout requirement. Suitable for medical, automation, audio, video, and security applications.

Compliance with CB, CCC, cUL, and UL safety standards.

This robust push button switch is ideal for use in industrial, laboratory, construction, HVAC, manufacturing, medical, and security systems where reliable momentary switching is required. It provides excellent tactile feedback and robust performance in demanding environments, making it a preferred choice for control panels and automation systems. Browse more Push Button Switches and related components at EnvMart for comprehensive electrical control solutions.
