Monitran Vibration Sensor with 4-20mA Output, 20 mA Max, 32 V DC Max, -25 °C to 90 °C MTN/1185ICQ-25

Monitran MTN/1185ICQ-25 vibration sensor is a high-quality industrial sensor designed to measure vibration velocity with a linear 4-20mA output. It supports maximum current of 20 mA and operates safely under a maximum DC voltage of 32 V. Functional over a temperature range from -25 °C to 90 °C, this device is tailored for demanding applications including mining, oil extraction, and rotating machinery condition monitoring.

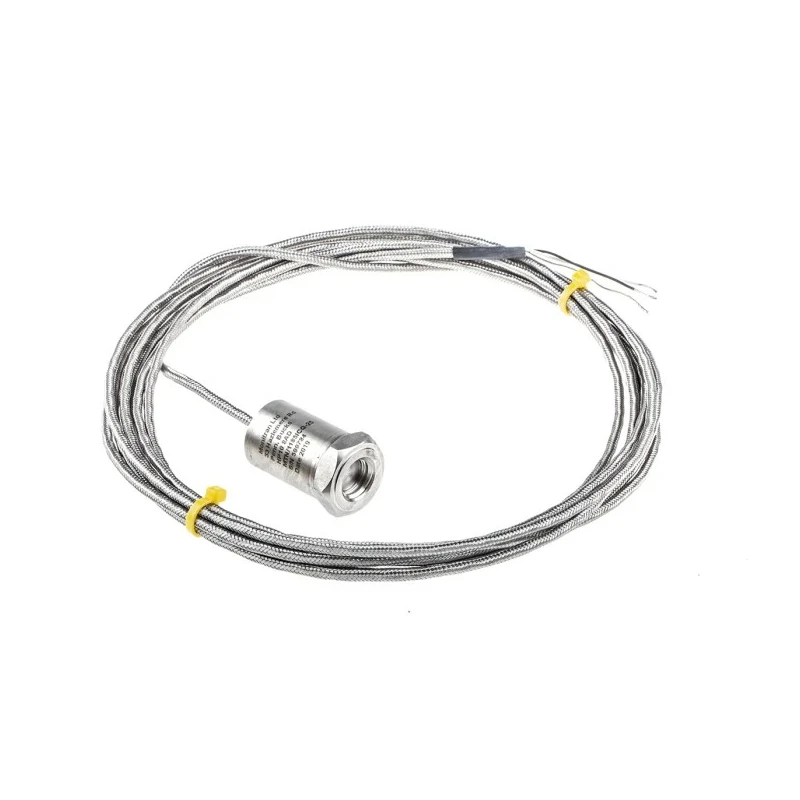

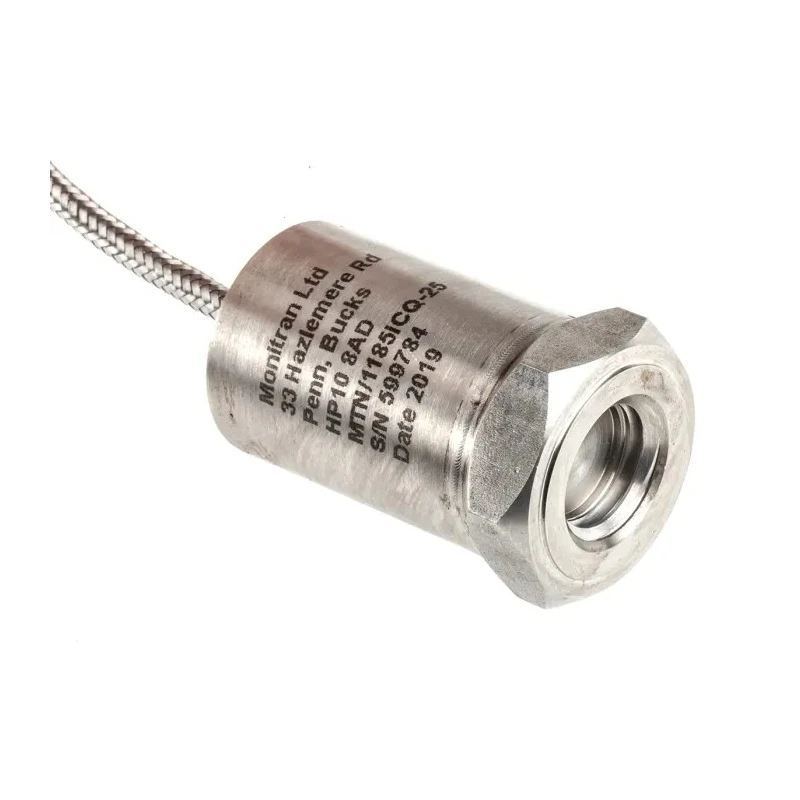

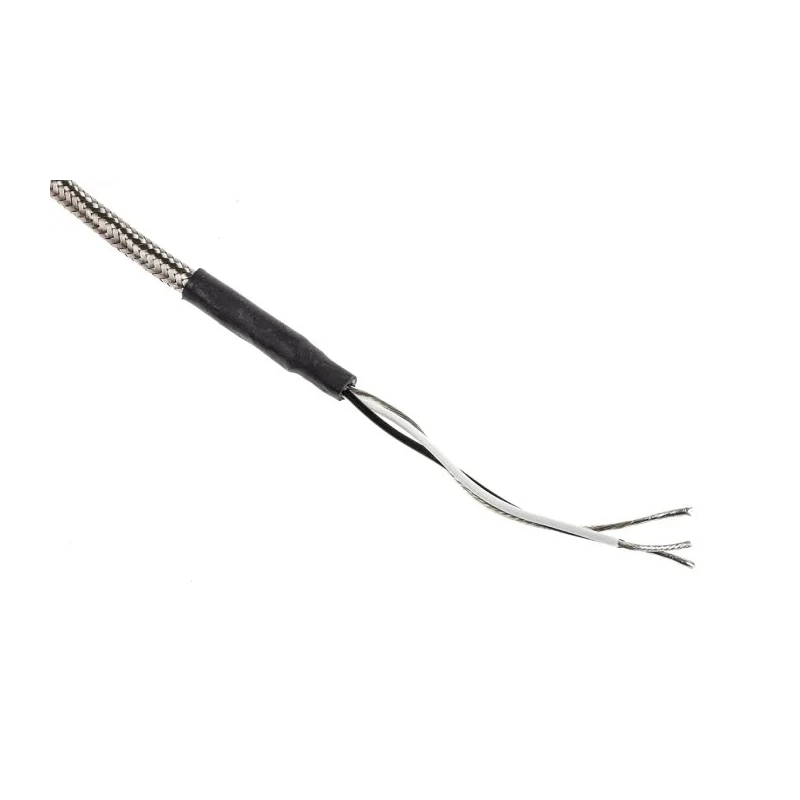

Its construction features a robust stainless steel body with IP67 ingress protection, ensuring reliability in harsh environments. The sensor comes equipped with a 5-meter armored PTFE cable to enhance durability and ease of installation in industrial settings. The compact sensor dimensions are 27 mm diameter by 43 mm length, making it suitable for a variety of mounting options such as M8 studs or adhesive mounts.

This device boasts an ATEX certification, making it safe for use in hazardous zones. It integrates a solid-state piezoelectric accelerometer that detects vibration levels from 2 Hz up to 1 kHz frequency with dynamic peak capability up to 50 g, making it ideal for monitoring bearings, gearboxes, motors, pumps, fans, and compressors.

The sensor's output is directly proportional to the RMS vibration velocity expressed in millimeters per second, providing an easily interpretable current signal ideal for interface with PLCs and other industrial controllers. It aids in preventive maintenance by detecting early signs of failure such as bearing wear or imbalance, reducing unplanned downtime and enhancing safety.

Solid-state piezoelectric accelerometer technology. ATEX Group I and II certified for hazardous area use. 4-20mA output signal compatible with PLCs. IP67 rated stainless steel housing. Five meters of armored PTFE shielded cable included.

Dimensions: 27 mm diameter, 43 mm length. Operating Temperature: -25 °C to 90 °C. Dynamic range up to 50 g peak acceleration.

Monitran Vibration Sensors are essential tools for industrial, manufacturing, and process monitoring applications. They provide actionable diagnostic data to plan maintenance schedules effectively. Explore more sensors and automation components in the EnvMart catalog.
