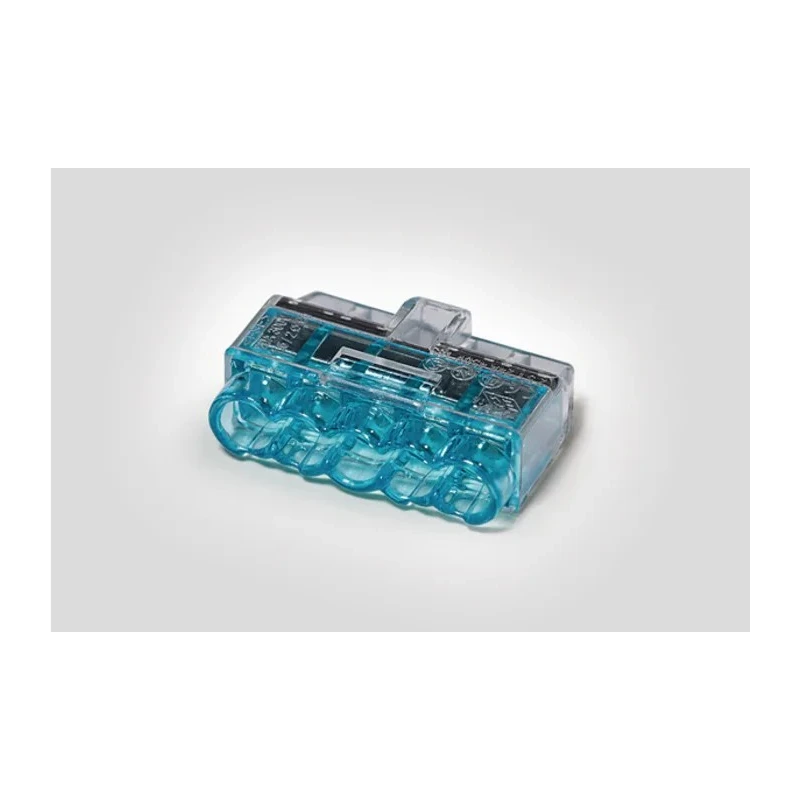

HellermannTyton HelaCon Plus Mini Uninsulated Wire Splice Connector Tin Plated Copper 14 AWG 148-90039 HCPM-5-PC-BU/CL

HellermannTyton 148-90039 HCPM-5-PC-BU/CL HelaCon Plus Mini wire splice connector is an uninsulated connector with a tin plated copper contact designed for reliable fast connection of 14 AWG wires.

This connector uses advanced push-in spring technology with a double spring design suitable for both solid and stranded wires in the size range of 0.5 to 2.5 mm², enabling tool-free installation that saves time and effort.

The compact design reduces size by 40 percent, optimized for installations requiring space-saving solutions. It features a transparent polycarbonate housing allowing easy visual inspection of proper wire insertion, improving installation safety and quality control.

Rated for a maximum current of 24 A and voltage of 450 V, this connector is suitable for professional electrical wiring applications. Materials used include stainless steel contact parts and tin plated copper plating to resist corrosion and ensure good conductivity.

Additional features include a low insertion force and user-friendly voltage test port access. The product complies with relevant international safety standards such as CE, ENEC, EN 60998-2-2, and CULus for assured quality and performance.

The connector requires wires to be stripped to 11 mm length before insertion. Its UL94V0 flammability rating ensures fire resistance under operating conditions ranging from -30°C to +85°C.

This product is made in China and designed for use in electrical installation, manufacturing, and maintenance contexts within industrial and commercial environments. Space saving design reduces connector size by 40 percent.

Low insertion force allows easy, tool-free push-in installation. Suitable for solid and stranded wires from 0.5 to 2.5 mm² wire range. Maximum rated current is 24 A and voltage up to 450 V. Transparent housing permits visual inspection for correct installation.

Operating temperature ranges from -30°C to +85°C. Flammability rating of UL94V0 ensures safety in use. Made with stainless steel contacts and tin plated copper plating for corrosion resistance. Complies with CE, ENEC, EN 60998-2-2, and CULus standards.

Stripping length required is 11 mm for wire preparation. Explore more quality Wire Splice Connectors and electrical components in the Electronics & Electricals category at EnvMart for your project needs.
