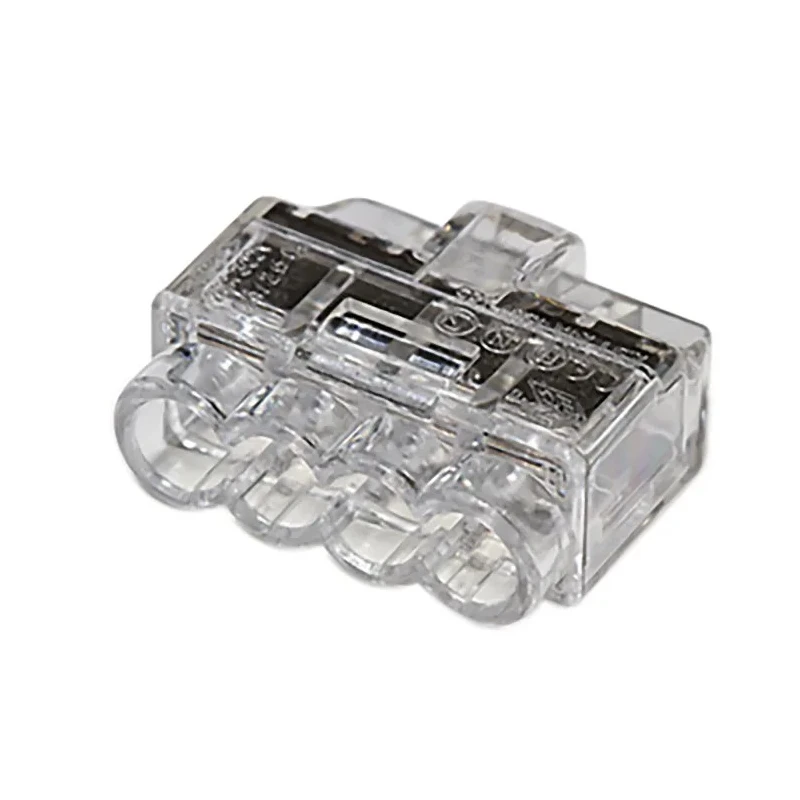

HellermannTyton HelaCon Plus Mini Insulated Wire Splice Connector Push-in Spring Termination 0.5-2.5 148-90038 HCPM-4-PC-CL

Free Delivery in India | Lowest Global Shipping Charges

HellermannTyton HelaCon Plus Mini Insulated Wire Splice Connector Push-in Spring Termination 0.5-2.5 148-90038 HCPM-4-PC-CL

Name: HellermannTyton HelaCon Plus Mini Insulated Wire Splice Connector Push-in Spring Termination 0.5-2.5 148-90038 HCPM-4-PC-CL
Brand: HellermannTyton
SKU: 194695
Price: 42.93 USD
Availability: InStock



Category Wire Splice Connector Brand HellermannTyton Condition New

Specifications

Country of Origin	China
Brand	HellermannTyton
Colour	Black, Blue, Yellow, Orange, Transparent, Violet
Operating Temperature	-30°C to +85 °C
Model	148-90038 HCPM-4-PC-CL
Insulation	Insulated
Overall Length	16.5mm
Series	HelaCon Plus Mini
Termination Type	Push-in Spring
Insulation Material	Polycarbonate
Max. current	24 A
Max. voltage	450 V
Standards/Approvals	UL 94 V-O
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	14AWG
Flammability	UL94V0
Stripping Length	11 mm
HellermannTyton Wire Splice Connector, Tin 22 → 12 AWGBrand	HellermannTyton

Key Features

Compact size with 16.5 mm overall length for space-saving installation.
Supports wire sizes from 28 AWG to 14 AWG, compatible with 0.5 to 2.5 mm² wires.
Durable polycarbonate insulation with multiple color codes for easy identification.
Approved UL 94 V-O flammability rating ensuring safety and reliability.
Operating temperature range from -30°C to +85°C suitable for diverse environments.
Maximum current capacity of 24 A and maximum voltage rating of 450 V.
Push-in spring termination allows fast, tool-free installation and secure connections.
Transparent housing enables visual confirmation of correct installation.

Product Description

HellermannTyton 148-90038 HCPM-4-PC-CL is a HelaCon Plus Mini Insulated Wire Splice Connector featuring push-in spring termination technology. This connector provides fast, secure, and tool-free wire connections suitable for professional electrical installations.

The connector has an overall length of 16.5 mm and supports a wide wire range from 28 AWG to 14 AWG (0.5 to 2.5 mm²), accommodating both solid and stranded cables. Its durable polycarbonate insulation is designed with multiple vibrant colors including black, blue, yellow, orange, transparent, and violet, enabling clear size and type identification.

It meets UL 94 V-O flammability standards, ensuring robust safety and resistance to ignition in demanding environments. With a maximum current rating of 24 A and voltage rating of 450 V, this connector is suitable for various industrial, commercial, and residential electrical applications.

The operating temperature range of -30°C to +85°C allows use in a broad spectrum of environmental conditions. The push-in spring mechanism simplifies the installation process by providing a low insertion force and eliminating the need for specialized tools.

The transparent housing offers easy visual verification of correct wire insertion, enhancing installation reliability. The recommended stripping length for wires is 11 mm to ensure optimal electrical contact. These features combined make the HelaCon Plus Mini connector an efficient and safe solution for electrical wiring systems.

Compact design reduces installation space requirements. Wide wire compatibility supports diverse conductor sizes. Color-coded insulation for easy identification. UL 94 V-O flammability rating for enhanced safety. Push-in spring termination enables tool-free installation.

Suitable for solid and stranded wires. Wide operating temperature range for varied environments. High current and voltage ratings for reliable performance. Transparent housing for visual installation checks. Ideal for industrial, commercial, and residential wiring.
