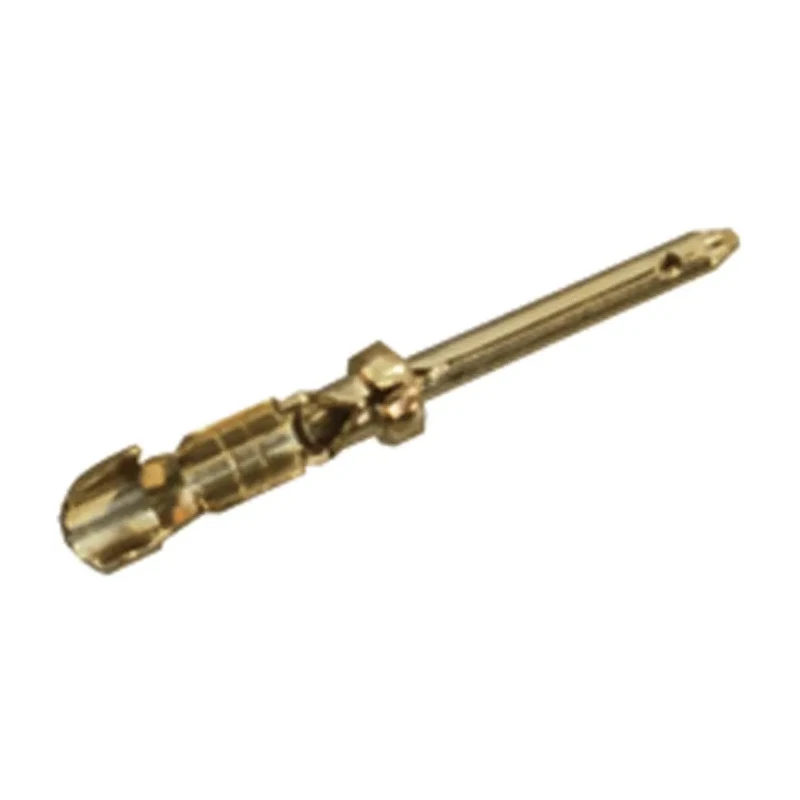

JAE DC20 Series Male Crimp D-Sub Connector Contact Gold Pin 24 AWG DC20
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JAE |
| Current | 5A |
| Length | 14.6mm |
| Model | DC20 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | DC20 |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.21mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 6mΩ |
Key Features
- Constructed with copper alloy for reliable electrical performance.
- Rated for a maximum current of 5A to suit varied applications.
- Features gold-plated pin type contacts for minimal contact resistance.
- Designed for crimp termination compatible with 24 AWG wire sizes.
- Measures 14.6mm in length for standard D-Sub connectivity.
- Supports wire size range from 28 AWG to 24 AWG (0.05mm² to 0.21mm²).
- Manufactured in Japan ensuring high-quality standards.
- Does not comply with any industry standards or approvals as per specifications.
Product Description
JAE DC20 Series Male Crimp D-Sub Connector Contact DC20 is engineered for precise, reliable electronic connectivity applications. Featuring a pin type contact constructed from copper alloy and plated with gold, this contact ensures excellent electrical conductivity and corrosion resistance over its lifecycle.
With a current rating of 5A, it supports moderate electrical loads in diverse industrial, electronics manufacturing, and assembly processes. The contact length of 14.6mm fits standard D-Sub connector housings, making it an ideal choice for wire-to-wire connections in data, signal, and power interfacing.
The crimp termination type is designed to accommodate wires ranging from 28 AWG (0.05mm²) up to 24 AWG (0.21mm²), offering flexibility for various cable gauges. Although no explicit compliance with industry standards or approvals is indicated, its manufacture in Japan reflects adherence to stringent quality control.
Constructed with copper alloy for electrical reliability and durability. Gold pin plating delivers low contact resistance of maximum 6mΩ. Supporting wire sizes from 28 AWG to 24 AWG for adaptable connectivity. Maximum current rating of 5A suitable for standard electronic loads.
Compact 14.6mm length designed for seamless integration in D-Sub connectors. Crimp termination ensures secure and stable wire contacts. Manufactured in Japan to uphold high-quality standards. Ideal for industrial electronics, telecommunications, and computing applications.
This JAE DC20 Series Male Crimp D-Sub Connector Contact is a dependable component for electronics assembly, cable harness manufacturing, and equipment repair. It fits applications in industrial control systems, data communication devices, and electronic instrumentation where secure, reliable connections are essential.
Explore more precision connectors at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector contact is 5A, suitable for moderate electrical loads.
The length of the DC20 connector contact is 14.6mm, designed for standard D-Sub connectivity.
This crimp connector is compatible with wire sizes ranging from 28 AWG (0.05mm²) to 24 AWG (0.21mm²).
The contacts in this model are constructed from copper alloy, which provides reliable electrical performance.
This connector uses a crimp termination type, ensuring secure and stable wire contacts.
The contact type of the DC20 connector is pin type, designed for effective electrical connectivity.
The maximum contact resistance for this connector is 6mΩ, ensuring minimal contact resistance.
The DC20 connector contact is manufactured in Japan, reflecting adherence to high-quality standards.
This connector contact is suitable for applications in industrial electronics, telecommunications, and computing.
This connector does not comply with any industry standards or approvals as per specifications.
The contacts are gold-plated, which helps to minimize contact resistance and enhance conductivity.
This connector contact belongs to the DC20 series, which is designed for reliable electronic connectivity applications.
