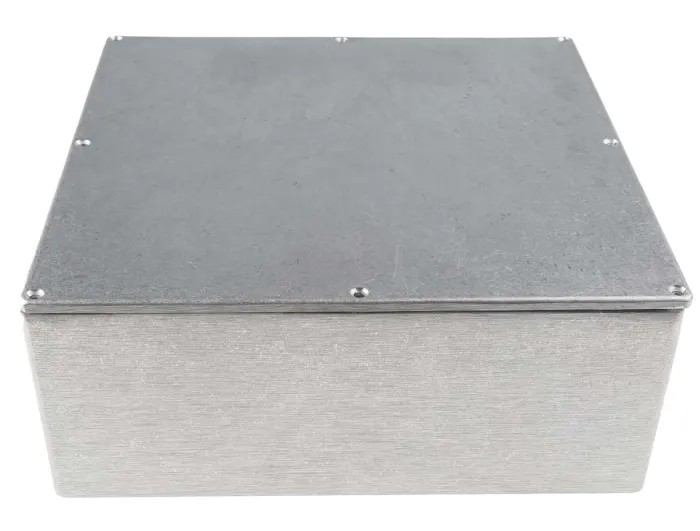

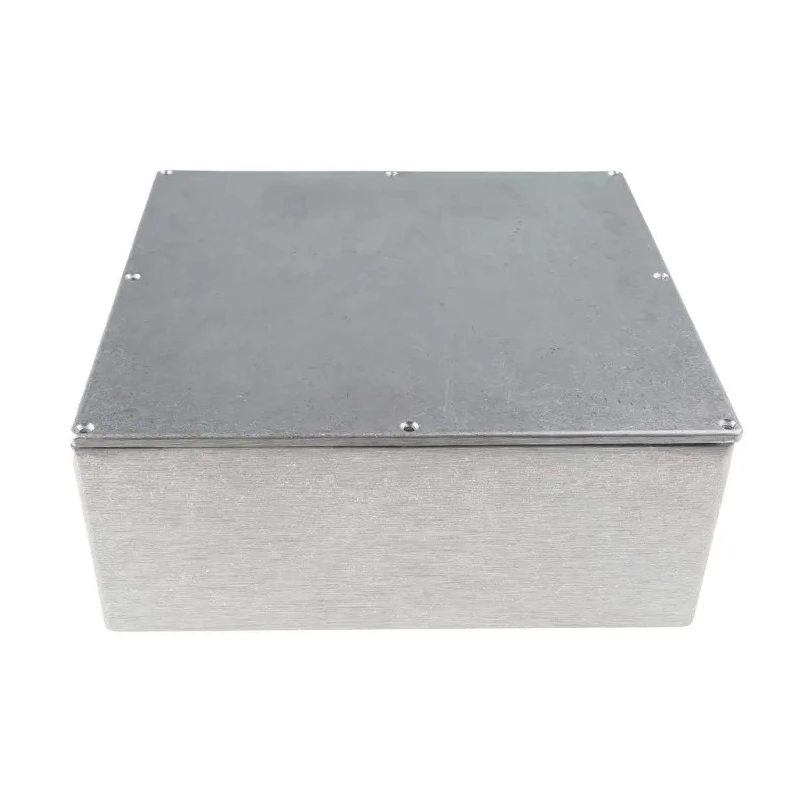

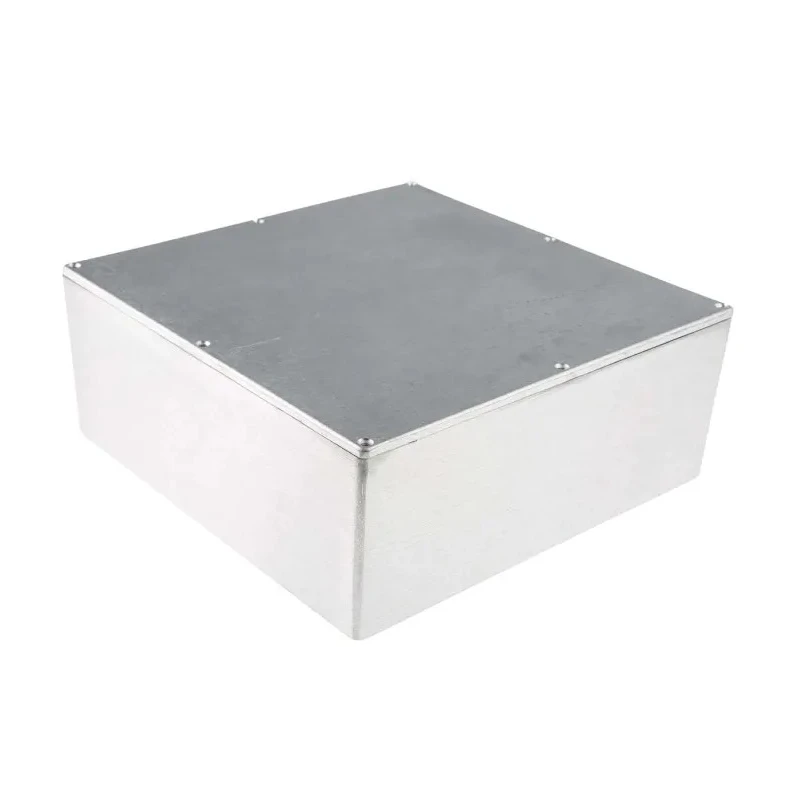

RS PRO Silver Silver Lid Die Cast Aluminium Enclosure IP66 100 mm x 250 mm x 250 mm IP66

RS PRO IP66 Silver Silver Lid Die Cast Aluminium Enclosure with external dimensions of 100 mm height, 250 mm width, and 250 mm length is an industrial-grade protective box designed for housing sensitive electrical and electronic devices. Manufactured from a robust ADC 12 aluminium die cast alloy to BS1490 standards, this enclosure offers excellent mechanical strength and durability.

The enclosure comes with a natural aluminium finish without any external coating, allowing for optional powder painting if desired. Its silver-coloured lid is designed with a 1.5° taper per side to ensure a secure fit with the base. The lid's lipped design provides superior EMI/RFI shielding performance, with screening effectiveness exceeding 40dB at 10MHz and 76dB at 100 kHz, making it ideal for protecting electronic circuits from electromagnetic interference.

This model is rated IP66, providing dust-tight protection and resistance against powerful water jets, making it suitable for harsh industrial and outdoor environments. The seal is self-adhesive neoprene, designed to function in temperature ranges from -20°C to +80°C, ensuring a reliable dust and moisture barrier.

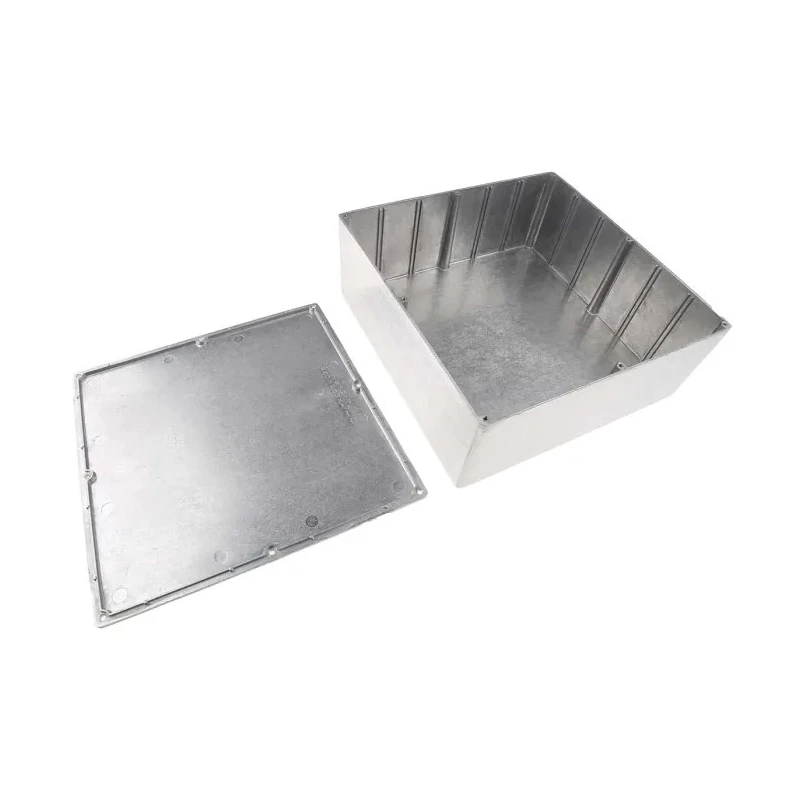

Fixing the lid to the base is facilitated by M3.5 x 9 mm supadrive countersunk stainless steel screws, located outside the inner enclosure space to maximize the internal usable area. Inner mounting guides are provided for PCB installation and vertical mounting. With a high-temperature tolerance of up to 250°C, the enclosure maintains structural integrity and protection even in demanding thermal conditions.

Typical use cases include industrial automation systems, electronic control units, instrumentation enclosures, and any application requiring robust protection against environmental and electromagnetic factors.

Constructed from high-quality die cast aluminium alloy ADC 12 to BS1490 standards. Equipped with a silver lid and natural aluminium finish with no external coating. Provides IP66 protection rating, ensuring dust-tight and water ingress protection.

Features an EMI/RFI shielded design with screening better than 40dB at 10MHz and 76dB at 100 kHz. Seal is made from neoprene with a temperature range of -20°C to +80°C for reliable environmental sealing. Lid features a lipped design and taper for a tight fit, fixed by M3.5 x 9 mm supadrive stainless steel screws.

Suitable for mounting PCBs with inner vertical and PCB mounting guides. Can withstand temperatures up to 250°C without adverse effects on aluminium or structure. Discover the full range of electrical enclosures at EnvMart for industrial, laboratory, and manufacturing applications.
