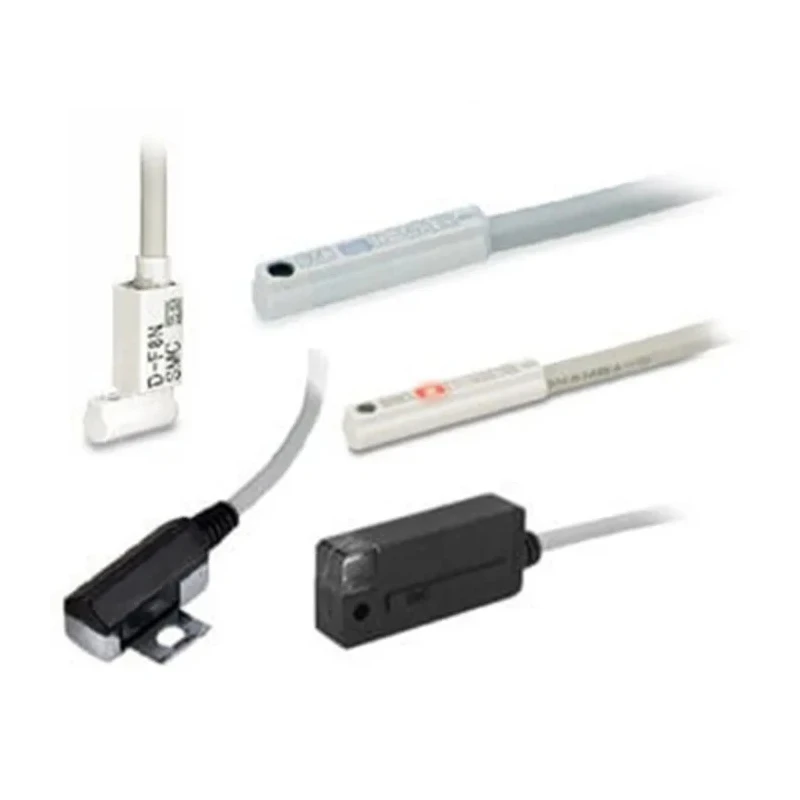

SMC 3-Wire Open End Cable Direct NPN Solid State Pneumatic Switch D-M9 Series LED Indicator D-M9NVMAPC

SMC D-M9NVMAPC 3-Wire Open End Cable Direct NPN Solid State Pneumatic Switch from the D-M9 Series is engineered for precise sensing and reliable switching in pneumatic cylinder applications. Featuring a pre-wired 3-wire open end cable with direct NPN electrical connection, this switch ensures straightforward integration with control systems.

Designed for compatibility with M9P, M9B, and M9N pneumatic cylinders, it provides robust sensor feedback with an LED indicator for immediate operational status monitoring. The IP67 rated enclosure protects against dust and water ingress, enhancing durability in industrial and manufacturing environments.

Operating reliably between -10°C and 60°C, this pneumatic switch supports switching currents up to 10mA, making it ideal for controlling IC circuits, relays, and PLCs in production and process automation. Compact dimensions of 18mm height, 15.5mm width, and 46mm depth allow installation in tight spaces commonly found in fluid power and pneumatic tooling setups.

This device complies with RoHS and IEC 529 standards, ensuring environmental compliance and safety. The switch’s design simplifies wiring and reduces the need for customized connectors by utilizing standardized IEC947-5-2 connectors.

Typical industrial applications include pneumatic automation systems, fluid power controls, manufacturing lines, and packaging machinery where precise cylinder position sensing is critical. The switch offers reliable performance in industrial, laboratory, manufacturing, and commercial automation contexts.

The switch features a 3-wire open end cable connection for direct NPN operation. Designed for use with M9P, M9B, and M9N pneumatic cylinders. Equipped with an LED indicator to provide operational status. Constructed with IP67 rating to ensure protection against dust and water ingress.

Operates within a temperature range of -10°C to 60°C for versatile industrial environments. Complies with RoHS and IEC 529 standards ensuring reliable and safe operation. Compact dimensions with height 18mm, width 15.5mm, and depth 46mm suit space-constrained applications.

Capable of handling switching current up to 10mA suitable for IC circuits, relays, and PLC controls. Explore more Pneumatic Switches and sensors in EnvMart’s comprehensive Industrial Tools & Equipment catalog for precision automation solutions.
