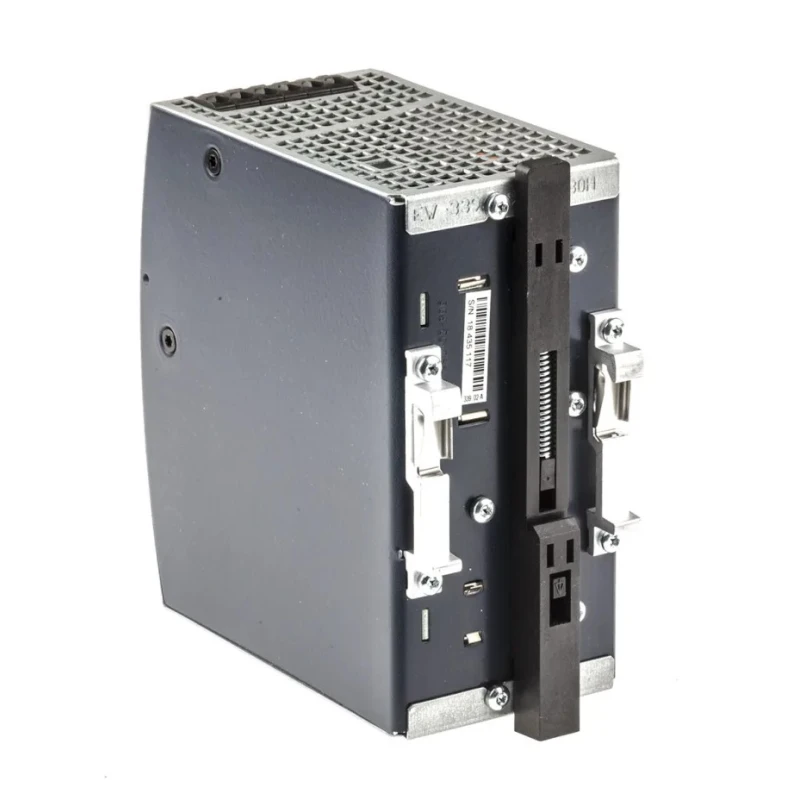

Phoenix Contact DIMENSION Switched Mode DIN Rail Power Supply 180W 15V DC 15A Output QS10.121
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Power | 180W |
| Height | 124mm |
| Model | QS10.121 |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 60mm |
| Series | DIMENSION |
| Output Current | 15A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Adjustable output voltage between 12VDC and 15VDC.
- Input voltage range from 100VAC to 240VAC supports worldwide operation.
- High operating temperature range from -25°C to 70°C.
- Efficiency up to 91.8% reducing energy loss.
- Features DC-OK relay contact and green/red LED status indicators.
- Compact dimensions with height 124mm, width 60mm, and depth 117mm.
- Includes quick-connect spring-clamp terminals for easy wiring.
- Low inrush current surge protects electrical installations.
Product Description
PULS QS10.121 DIN Rail Power Supply is a switched mode, single-phase device providing a maximum output of 15V DC at 15A and total power of 180W. Perfectly engineered for reliable and high-performance operation in industrial and automation settings, this power supply integrates power factor correction and delivers high efficiency of up to 91.8% to reduce energy consumption.
It supports a wide input voltage range from 100V AC to 240V AC, accommodating global voltage standards. The unit operates reliably within a temperature span of -25°C to 70°C, suitable for demanding environments. Compact form factor with a height of 124mm, width of 60mm, and depth of 117mm allows easy installation on DIN rails in control panels.
Built for safety and ease of maintenance, it features a DC-OK relay contact, green LED for DC status, and red LED for overload indication. Installation is facilitated by quick-connect spring-clamp terminals, ensuring secure and fast wiring. Additionally, its low inrush current minimizes electrical stress on system components during power-up.
This power supply is ideal for multiple applications including industrial control systems, automation setups, communication devices, and precision instrumentation. It holds essential approvals such as IEC and UL, assuring compliance with safety standards.
Adjustable output voltage range from 12VDC to 15VDC for system flexibility. Input voltage range of 100 to 240V AC for compatibility with global power sources. IP20 protection rating for safe indoor use. Active power factor correction ensures efficient energy use and reduces harmonics.
Low ripple noise output maintains stable voltage essential for sensitive electronics. Compact and lightweight design eases installation in space-constrained environments. Robust construction and compliance with IEC and UL standards guarantee reliability.
Equipped with diagnostic features like DC-OK relay contact and LED indicators. Suitable for industrial, automation, communication, and instrumentation applications. Explore a wide range of power supplies and related components in the Power Supplies & Transformers category on EnvMart for your industrial and automation needs.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this unit is 180W.
It has an adjustable output voltage range from 12V DC to 15V DC.
This power supply supports an input voltage range from 100V AC to 240V AC.
It operates within a temperature range of -25°C to 70°C.
The dimensions are 124mm in height, 60mm in width, and 117mm in depth.
This model provides one output.
It includes quick-connect spring-clamp terminals for easy wiring.
The unit has an IP20 protection rating, suitable for safe indoor use.
It has an efficiency rating of up to 91.8%, which helps reduce energy loss.
It is suitable for industrial control systems, automation setups, communication devices, and precision instrumentation.
The country of origin for this model is China.
