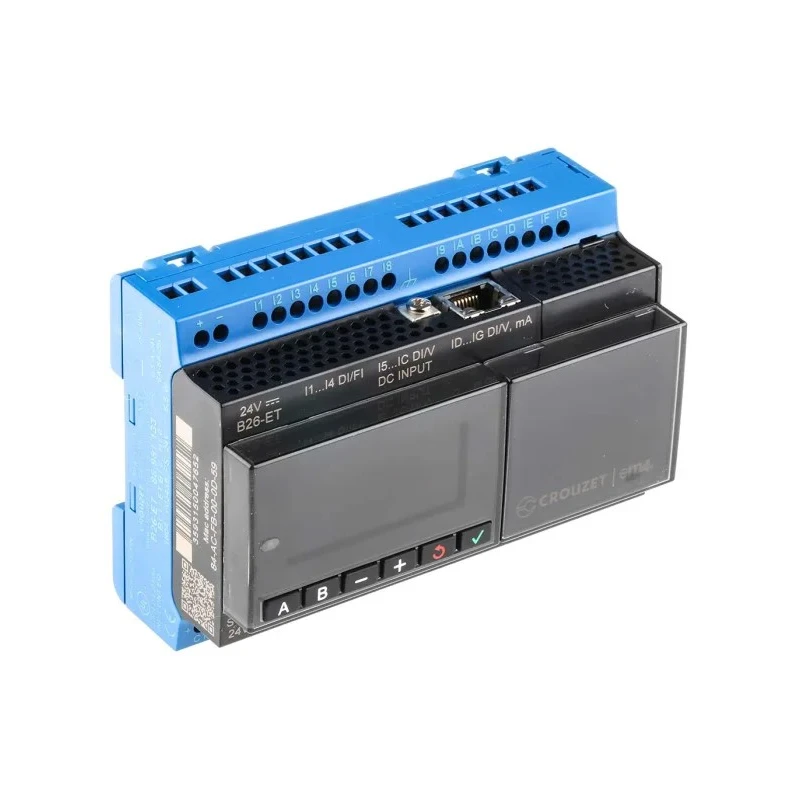

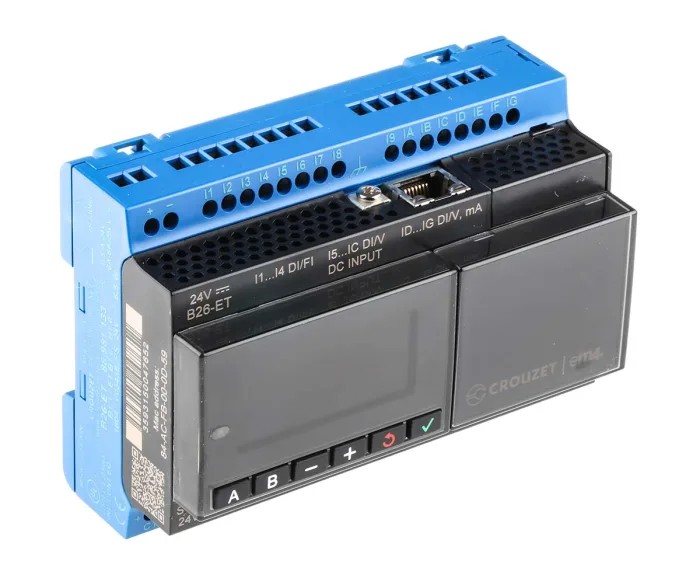

Crouzet em4 Series PLC CPU with 6 Digital and Analogue Inputs, 10 Relay and PWM Outputs, DIN Rail Mount, 24Vdc 88981133

Crouzet 88981133 em4 Series PLC CPU is a compact and highly functional programmable logic controller designed for advanced industrial automation and process control. It integrates 6 inputs accommodating both digital and analogue signals, paired with 10 outputs comprising relay and PWM (Pulse Width Modulation) types. The device operates on a 24Vdc power supply with an accurate output current specification of 8A, ensuring stable control of connected equipment.

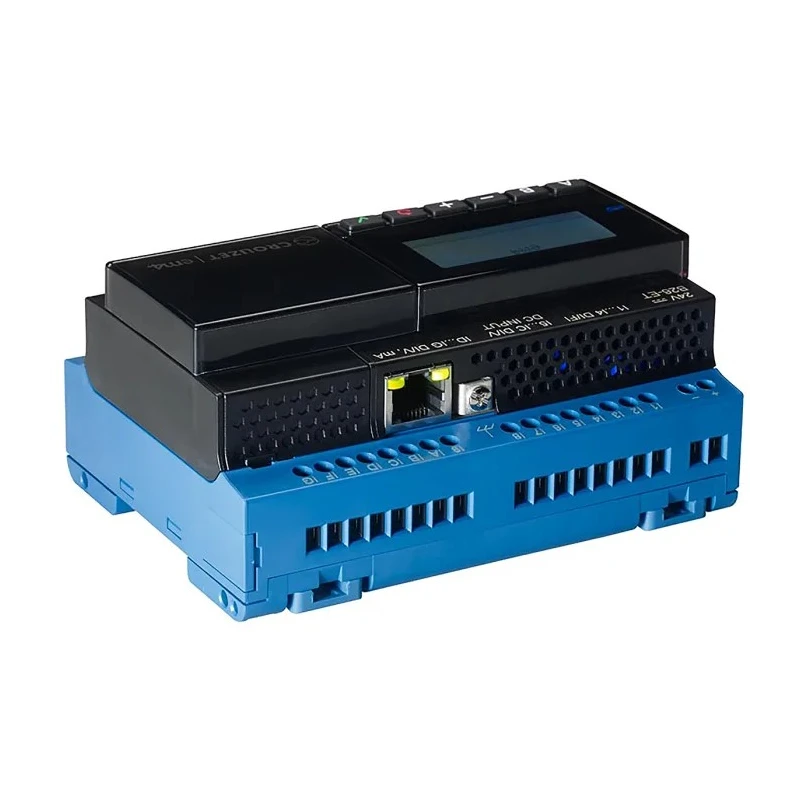

This PLC features a DIN rail mount type for straightforward panel installation and includes Ethernet and USB communication ports, enabling seamless connectivity and program management over an Ethernet local network using Modbus TCP/IP protocol. Its programming support encompasses Function Block Diagram (FBD) and Sequential Function Chart (SFC) languages, facilitating versatile automation programming needs.

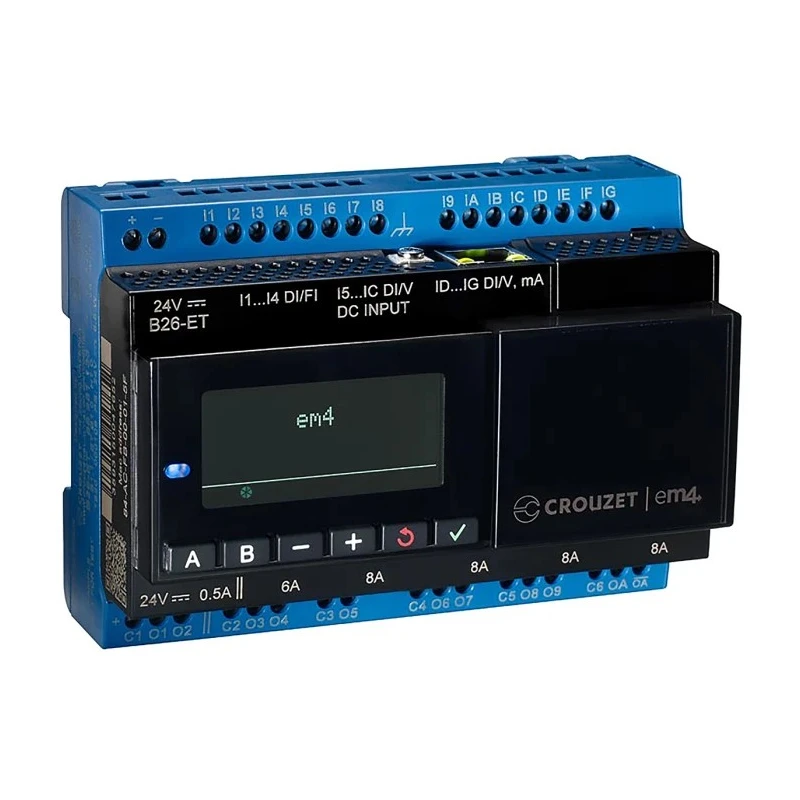

The integrated display provides 4 lines with 18 characters each, giving clear visibility of system statuses and outputs. Designed for robust environmental performance, the unit operates efficiently within temperatures ranging from -20°C to 60°C, with a solid IP40 protection rating on the front panel and IP20 on the terminal block. Battery backup functionality preserves the programming and data during power interruptions.

Certified for CE, cULus, and IEC/EN 61000-6-1 compliance, this model adheres to stringent safety and electromagnetic compatibility standards. As part of the RS Better World initiative, the PLC is designed for disassembly, promoting sustainability and easier end-of-life recycling efforts.

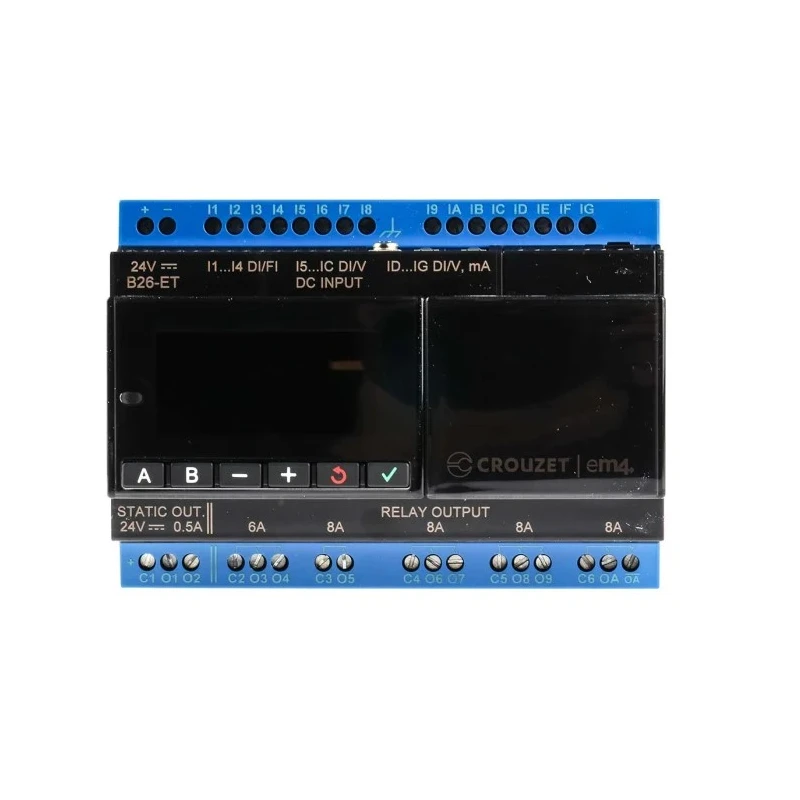

Supports digital and analogue inputs for flexible automation applications. Provides 10 outputs including relays and PWM for diverse control requirements. Ethernet and USB interfaces facilitate easy programming and network integration.

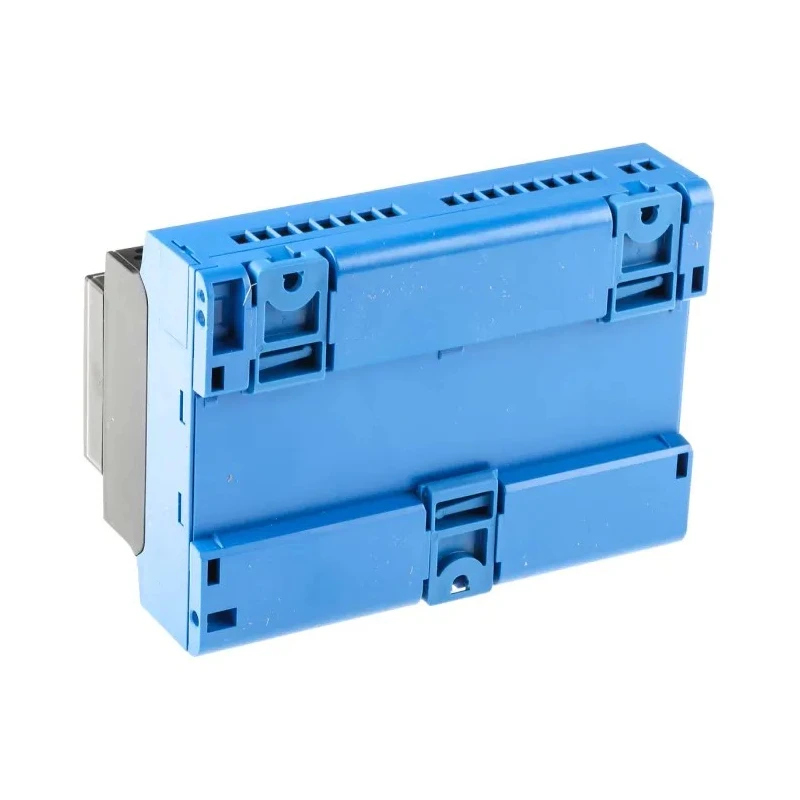

DIN rail mounting ensures compact and secure installation within industrial panels. Wide operating temperature range ensures reliability in varied industrial environments. Clear multi-line display aids in monitoring and diagnostics.

Battery backup safeguards program memory and data integrity during outages. Meets major international safety and EMC standards. Designed for disassembly to support environmental sustainability.

This PLC CPU is ideal for industrial automation sectors including robotics, manufacturing, and automotive industries. It provides robust, reliable control and communication capabilities to enhance operational efficiency. For comprehensive industrial automation solutions, explore the rich selection of PLC CPUs, controllers, and accessories available on EnvMart.
