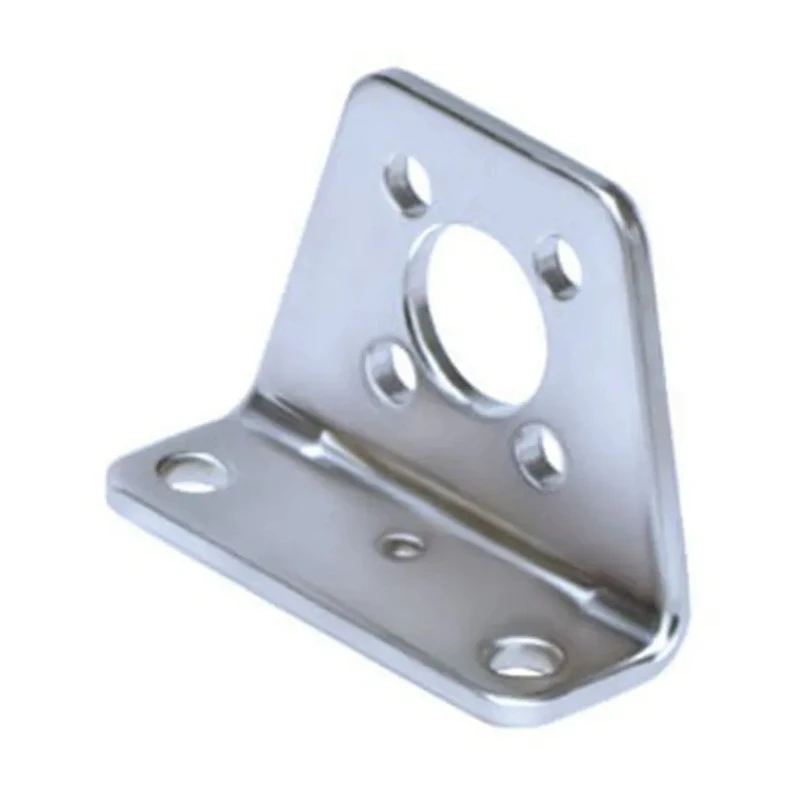

SMC Mounting Bracket for CG3 Series Pneumatic Cylinders CG-032-24A

SMC CG-032-24A mounting bracket is engineered for use with the CG3 Series pneumatic cylinders, a space-saving and compact air cylinder line. This bracket is ideal for securely mounting pneumatic cylinders in various industrial, mechanical, and fluid power applications.

The CG3 Series cylinders are double-acting and single-rod, designed with an integrated head cover and tube that reduce overall length by up to 37 mm compared to similar compact models. This mounting bracket accommodates multiple types including flange, foot, single, and double clevis options for versatile installation.

With bore sizes from 20 mm to 100 mm, the bracket is perfectly suited for a range of pneumatic cylinder dimensions. The materials used comply with RoHS standards, ensuring environmentally safe production and handling.

This mounting bracket is widely applicable across pneumatic actuator assemblies, automation equipment, manufacturing, and other industrial sectors requiring reliable pneumatic cylinder support.

Compatible with CG3 series compact pneumatic cylinders. Includes flange, foot, single and double clevis types. Supports bore sizes ranging from ø20 mm to ø100 mm. Manufactured with RoHS compliant materials ensuring environmental safety.

Designed to reduce overall cylinder length by up to 37 mm. Provides robust support for applications in fluid power and mechanical systems. Suitable for industrial automation and pneumatic actuator assemblies. Compact round-bodied design enhances space-saving installation.

Durable build ensures reliable long-term operation.

This product is a new mounting accessory from SMC, a recognized brand in pneumatic components. Complete your pneumatic system with this precise and compact Mounting Bracket, designed to enhance installation efficiency and operational reliability. Browse the Pneumatic Cylinder & Actuator Accessories category on EnvMart for related parts and compatible components.
