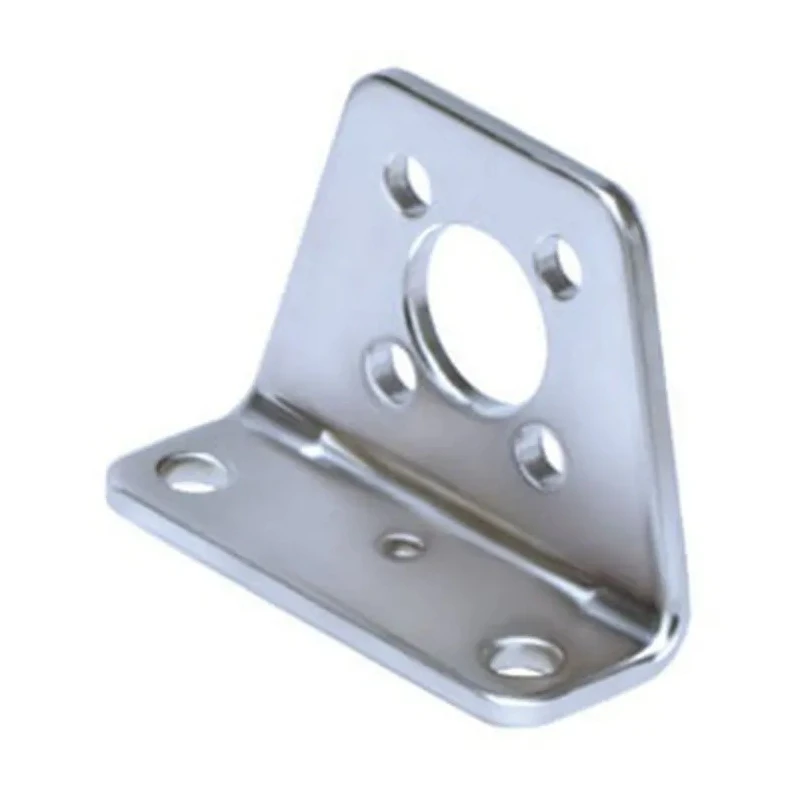

SMC Mounting Bracket for CG3 Series Pneumatic Cylinders CG-020-24A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | CG-020-24A |
| For Use With | CG3 Series |
| Standards/Approvals | RoHS |
| Bore sizes | ø20 to ø100 |
Key Features
- Designed for CG3 series compact round bodied pneumatic cylinders.
- Compatible with bore sizes ranging from ø20 to ø100 mm.
- Constructed to be space-saving and double acting with single rod design.
- Features an integrated head cover and tube reducing overall cylinder length.
- Includes flange, foot, single and double clevis bracket types for versatile mounting.
- Meets RoHS standards for compliance and environmental safety.
- Manufactured in Japan ensuring high-quality construction.
Product Description
SMC CG-020-24A mounting bracket is engineered specifically for the CG3 Series pneumatic cylinders, known for their compact and round bodied design. This bracket enhances the ease of installation and stability for pneumatic systems in industrial automation.
The CG3 series cylinders utilize a double acting, single rod configuration and are up to 37 mm shorter than comparable compact models due to the innovative integrated head cover and tube. These mounting brackets support multiple mounting styles including flange, foot, single clevis, and double clevis to accommodate various installation needs.
Compatible bore sizes range from ø20 to ø100 mm, enabling a wide application scope across different pneumatic automation equipment. The product adheres to RoHS standards, evidencing compliance with environmental and hazardous substances regulations.
Manufactured in Japan, this mounting bracket guarantees durability and precision engineering essential for pneumatic cylinder mounting in industrial, manufacturing, automation, and fluid power applications.
Designed for CG3 series compact round bodied pneumatic cylinders. Compatible with bore sizes ranging from ø20 to ø100 mm. Constructed to be space-saving and double acting with single rod design. Features an integrated head cover and tube reducing overall cylinder length.
Includes flange, foot, single and double clevis bracket types for versatile mounting. Meets RoHS standards for compliance and environmental safety. Manufactured in Japan ensuring high-quality construction.
This mounting bracket is essential for reliable and flexible installation of SMC pneumatic cylinders in industrial fluid power systems. Browse through EnvMart’s Hydraulic & Pneumatic Tools category for more complementary pneumatic components and accessories.
Explore more products in our Pneumatic Cylinder & Actuator Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This mounting bracket is compatible with bore sizes ranging from ø20 to ø100 mm.
It is specifically designed for the CG3 Series compact round bodied pneumatic cylinders.
This model supports multiple mounting styles including flange, foot, single clevis, and double clevis.
The mounting bracket is manufactured in Japan.
Yes, it meets RoHS standards for compliance and environmental safety.
The cylinders supported by this bracket utilize a double acting, single rod configuration.
It enhances installation ease and stability for pneumatic systems in industrial automation.
The integrated head cover and tube reduce the overall cylinder length by up to 37 mm compared to comparable compact models.
It is suitable for use in industrial, manufacturing, automation, and fluid power applications.
The model number of this mounting bracket is CG-020-24A.
The bracket's design includes an integrated head cover and tube, which contribute to its space-saving characteristics.
This bracket can be paired with various pneumatic cylinders within the CG3 series, enhancing versatility in installations.
