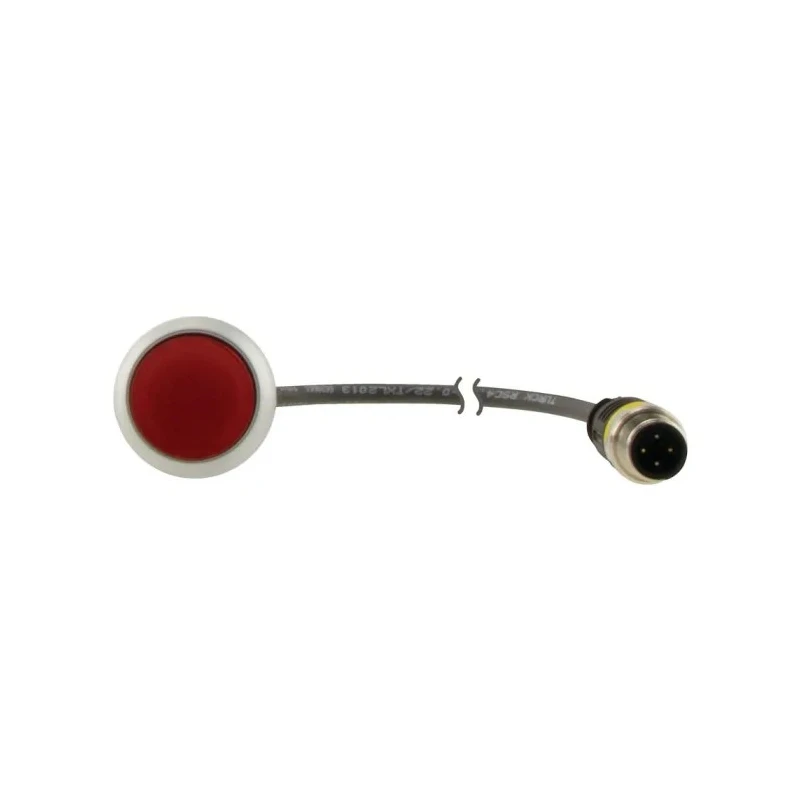

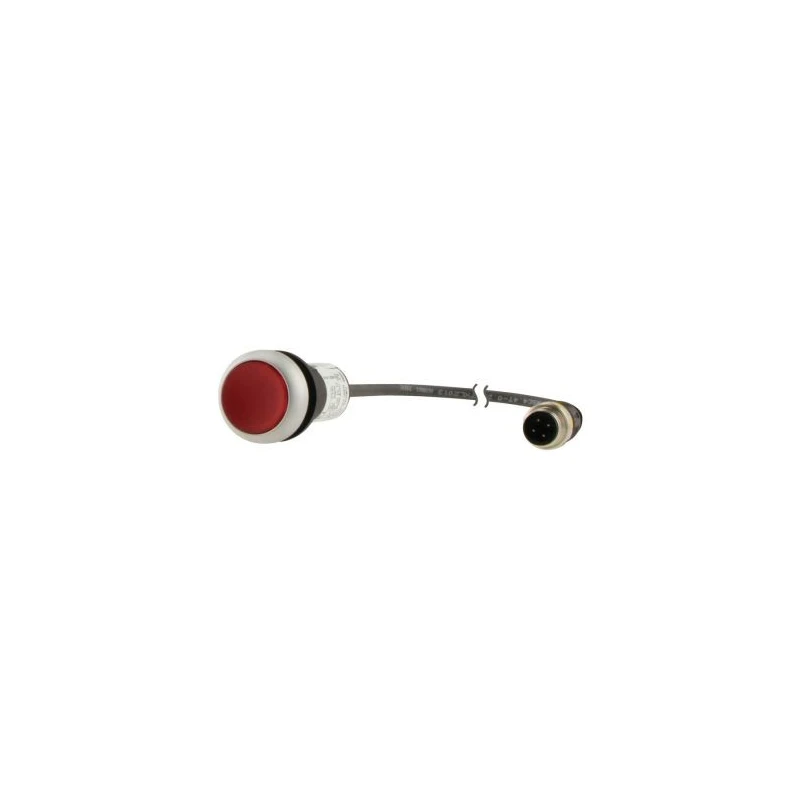

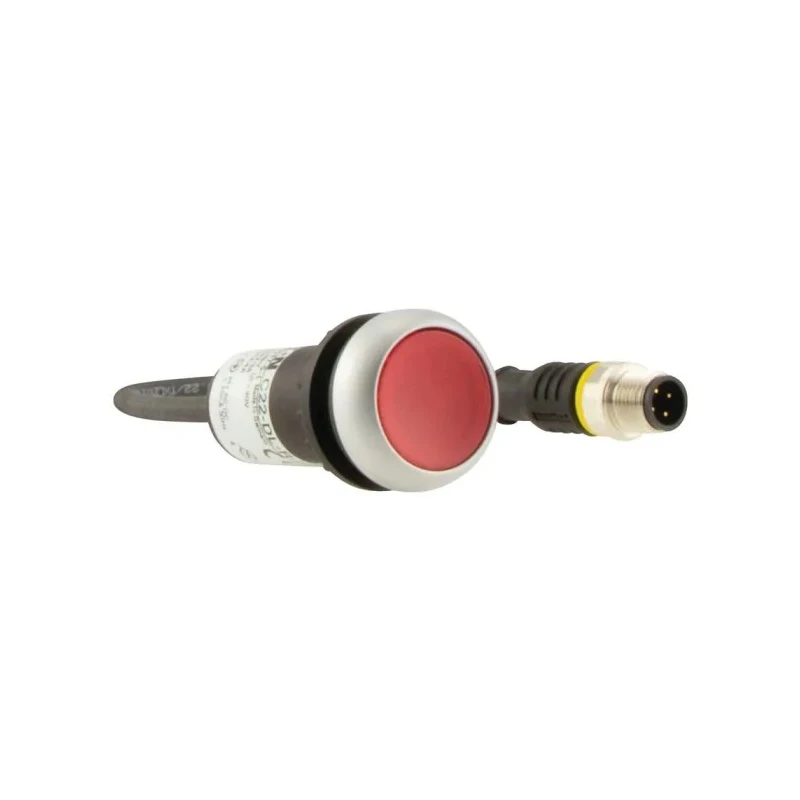

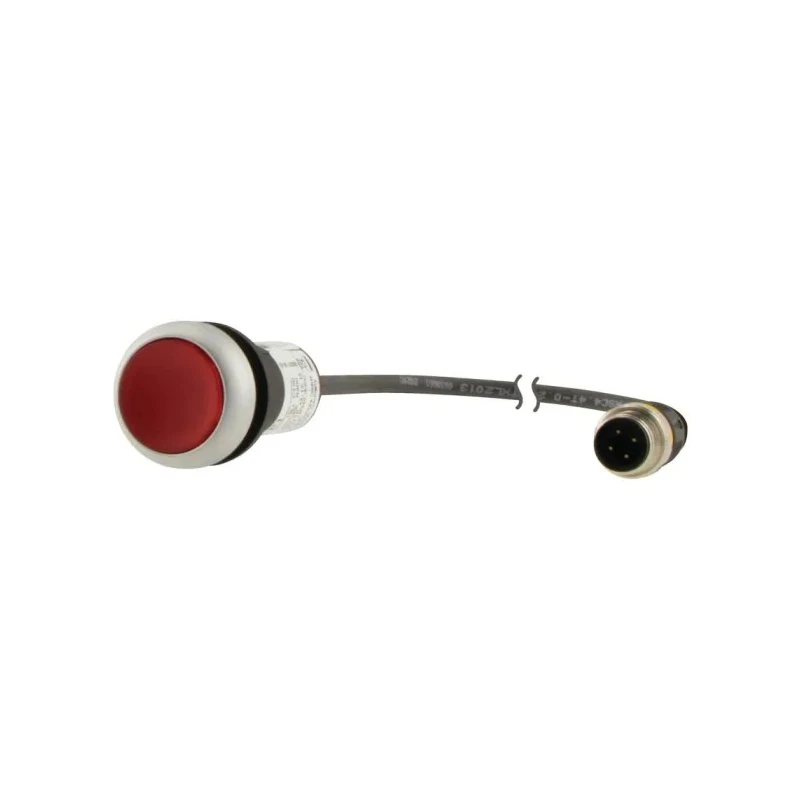

Eaton C22 Series Illuminated Push Button Actuator, Panel Mount, 22mm Cutout, Red, SPST, IP67 181626 C22-DL-R-K01-24-P3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Body Material | Plastic |
| Model | 181626 C22-DL-R-K01-24-P3 |
| IP Rating | IP67, IP69K |
| Mount Type | Panel Mount |
| Series | C22 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | CE, CE marking, NKCR, UL, CSA, IEC/EN0947-5-1, VDE 0660 |
| Cutout Diameter | 22mm |
| Push Button Actuation | Momentary |
| Push Button Material | Plastic |
| Push Button Colour | Red |
| Push Button Diameter | 29.7mm |
| Push Button Style | Round |
| Illumination Voltage | 24V ac/dc |
Key Features
- Features a 22 mm cutout diameter for panel mounting.
- Red illuminated round push button for visual status indication.
- Constructed with durable plastic body and push button material.
- Rated IP67 and IP69K for superior protection against dust and water.
- Operates at 24V AC/DC illumination voltage with momentary actuation.
- Screw terminal type ensures secure electrical connections.
- Wide operating temperature range from -25°C to 70°C.
- Complies with CE, UL, CSA, IEC/EN0947-5-1, VDE 0660 standards.
Product Description
The Eaton 181626 C22-DL-R-K01-24-P3 is an illuminated push button actuator from the C22 series designed for panel-mount applications requiring high reliability and protection. Its round red illuminated push button provides clear visual feedback, ideal for control panels in industrial and automation settings.
Constructed with a robust plastic body and push button, this actuator offers momentary SPST contact actuation, suitable for time-sensitive operational tasks. It features a 22 mm cutout diameter for seamless panel integration and employs screw terminals for stable electrical connections.
Engineered to withstand harsh conditions, the actuator holds IP67 and IP69K ratings, offering dust-tight and high-pressure water jet resistance, making it suitable for both indoor and outdoor environments. Its operating temperature range from -25°C to 70°C ensures reliable performance under varied climatic conditions.
Compliant with international standards such as CE, UL, CSA, IEC/EN0947-5-1, and VDE 0660, this push button actuator meets stringent safety and quality requirements. The illumination runs at 24V AC/DC providing distinct visibility for control applications.
22 mm panel cutout diameter for installation. Red illuminated round push button enhances visibility. Momentary SPST push button actuation for prompt switching. IP67 and IP69K protection against dust and water ingress. Durable plastic construction for body and button.
Screw terminals for secure electrical connection. Wide temperature tolerance from -25°C to 70°C. Certified to multiple international safety and quality standards.
This Eaton illuminated push button actuator is ideal for panel mounting in electrical control systems, automation equipment, and industrial machinery requiring reliable, visible, and protected push button operation. It suits industrial, manufacturing, and commercial uses demanding high ingress protection and compliance.
Browse the Electronics & Electricals section on EnvMart for a comprehensive range of Push Button Actuators and other switching devices from Eaton and leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout diameter for this actuator is 22 mm, designed for panel mounting applications.
It has an operating temperature range from -25°C to 70°C, ensuring reliable performance in various conditions.
This actuator employs screw terminals for secure electrical connections, enhancing stability during operation.
The illumination voltage for the push button is 24V AC/DC, providing clear visibility for control applications.
It features a momentary SPST (Single Pole Single Throw) contact configuration for prompt switching.
The actuator is constructed with a durable plastic body and push button material, suitable for various applications.
It is rated IP67 and IP69K, providing protection against dust and high-pressure water jets, making it suitable for harsh environments.
It complies with several standards including CE, UL, CSA, IEC/EN0947-5-1, and VDE 0660, ensuring safety and quality.
The push button diameter is 29.7 mm, which is designed for easy operation.
The country of origin for this push button actuator is Germany.
This actuator is suitable for panel mounting in electrical control systems, automation equipment, and industrial machinery.
The push button has a round style, which enhances its visibility and usability in control panels.
