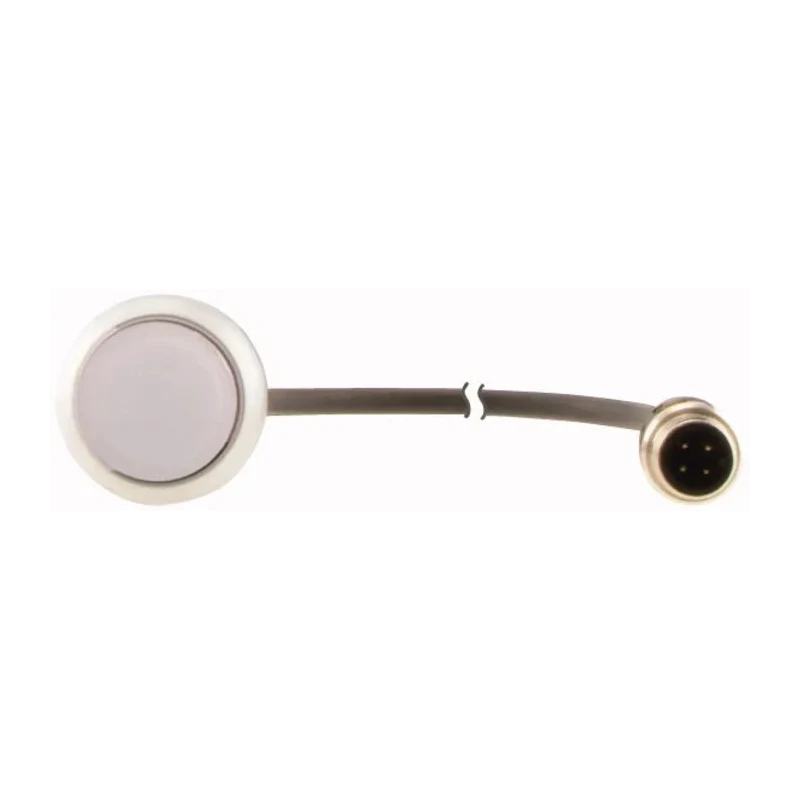

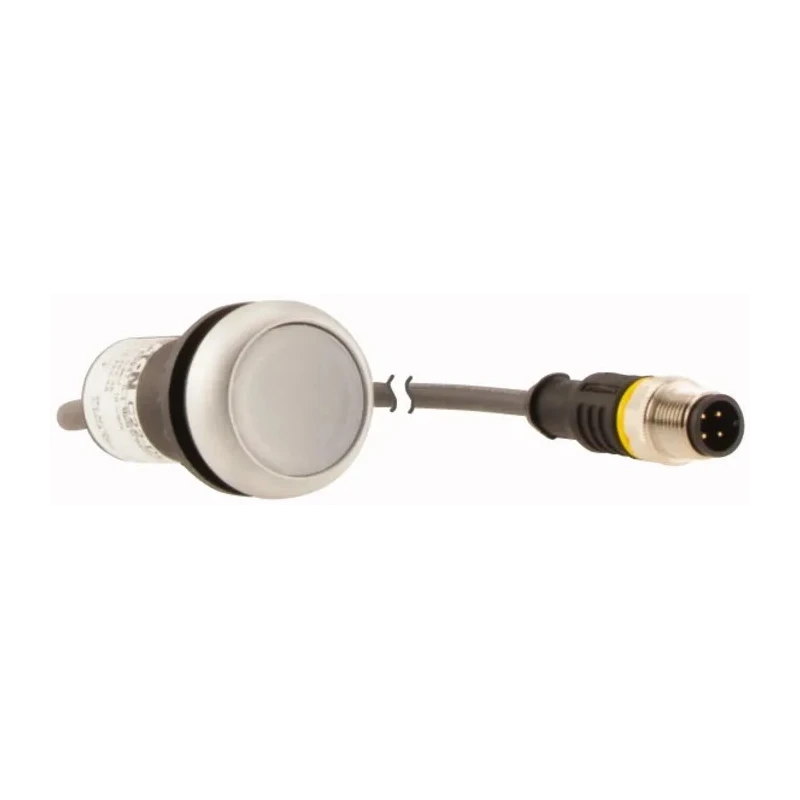

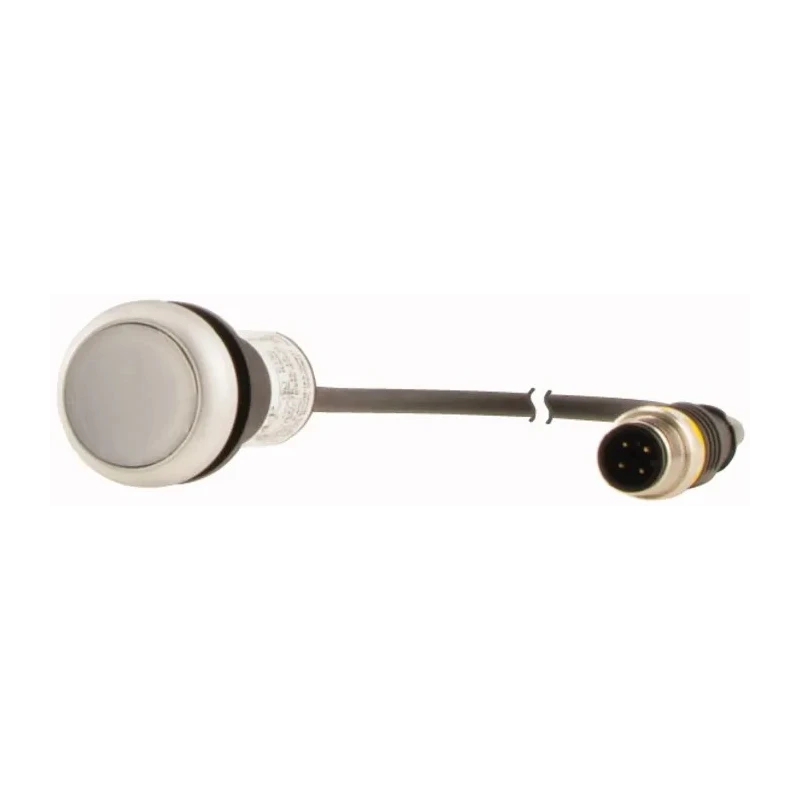

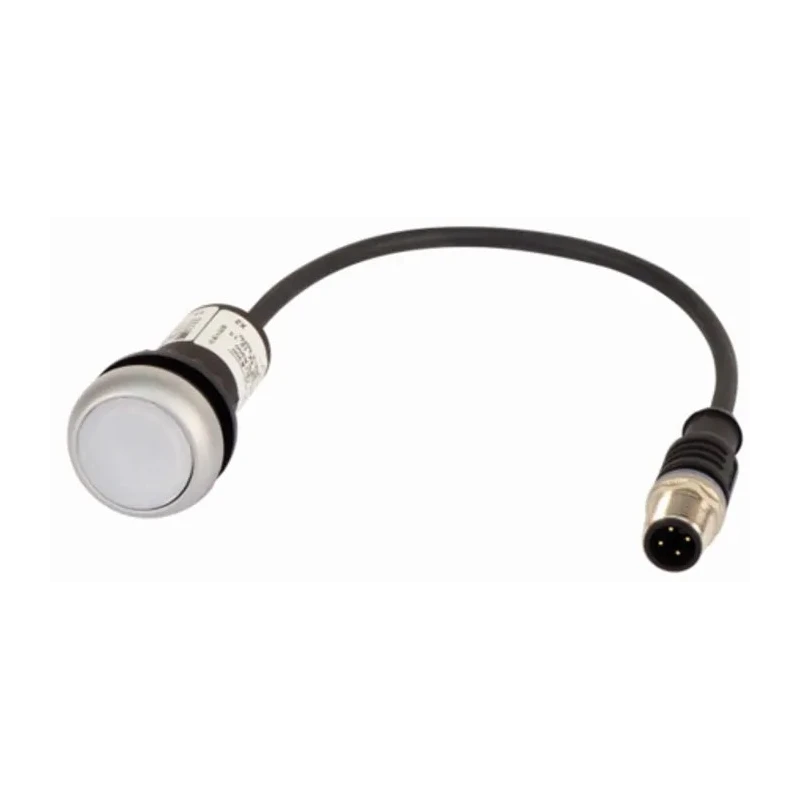

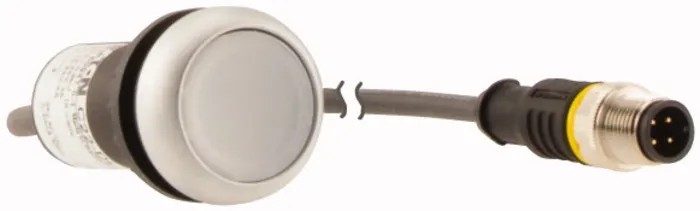

Eaton C22 Series Illuminated Push Button Switch Panel Mount 22 mm Cutout White SPST IP67 IP69K C22-DL-W-K10-24-P5

Name: Eaton C22 Series Illuminated Push Button Switch Panel Mount 22 mm Cutout White SPST IP67 IP69K C22-DL-W-K10-24-P5
Brand: Eaton
SKU: 193118
Price: 93.35 USD
Availability: InStock



Category Push Button Switch Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Body Material	Plastic
Model	C22-DL-W-K10-24-P5
IP Rating	IP67, IP69K
Mount Type	Panel Mount
Series	C22
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	CE marking, NKCR, IEC/EN0947-5-1, CSA, UL, VDE 0660, CE
Cutout Diameter	22mm
Push Button Actuation	Momentary
Push Button Material	Plastic
Push Button Colour	White
Push Button Diameter	29.7mm
Push Button Style	Round
Illumination Voltage	24V ac/dc

Key Features

This momentary, round push button includes a SPST contact configuration.
The switch features a high IP rating of IP67 and IP69K for protection against dust and high-pressure water jets.
Illumination is provided by a 24V AC/DC white LED for clear indication.
Constructed with durable plastic body and button material suitable for operating temperatures from -25°C to 70°C.
Mechanical durability of five million operations ensures long service life in industrial environments.
Certified to multiple international standards including CE marking, UL, CSA, VDE, and NKCR.
Equipped with screw terminal type and 1m flying lead cable for easy installation and wiring.
Compact size with push button diameter 29.7 mm and cutout diameter 22 mm for versatile panel integration.

Product Description

The Eaton C22-DL-W-K10-24-P5 is a high-performance illuminated push button switch from the Eaton C22 series designed for reliable use in industrial, automation, and electrical control environments.

This panel mount switch has a 22 mm cutout diameter and features a bright white LED illumination at 24V AC/DC, providing clear and instant visual status indication. The momentary push button operates as long as it is pressed, making it a safe option for temporary manual controls.

Manufactured with a robust plastic body and button, the switch withstands harsh conditions with an operating temperature range from -25°C to 70°C. Its high ingress protection ratings of IP67 and IP69K ensure resistance against dust, water, and even high pressure, high temperature washdowns, making it suitable for high hygiene and demanding industrial environments.

The mechanical durability rate of five million operations guarantees longevity, while the SPST contact configuration and screw terminal type provide straightforward electrical connections. An included 1 meter flying lead cable and M12 plug simplify installation even in confined panel spaces.

This switch complies with international certifications including CE, CSA, UL 508, VDE 0660, and NKCR, ensuring high safety and quality standards. Typical industrial applications include control of roller doors, emergency stop buttons on machinery, and various panel control functions within manufacturing and processing facilities.

Panel mount with 22 mm cutout diameter for flexible integration. White LED illumination enhances operational safety and visibility. IP67 and IP69K ratings ensure suitability for harsh and washdown environments. Mechanical longevity of five million actuations supports demanding usage cycles.

Certified to international safety and performance standards. Includes 1 meter flying lead for convenient panel wiring. Constructed in Germany with durable plastic materials for reliability. Discover more Eaton industrial Push Button Switches and other control devices in the EnvMart Electrical & Automation category to enhance your panel and control system solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this model is 70°C.

This switch requires a cutout diameter of 22 mm for panel mounting.

It has a high ingress protection rating of IP67 and IP69K, making it resistant to dust and high-pressure water jets.

This model features a Single Pole Single Throw (SPST) contact configuration.

The illumination operates at 24V AC/DC, providing clear visibility.

The switch has a mechanical durability rating of five million operations, ensuring a long service life.

The body and button of this switch are constructed from durable plastic material.

It is equipped with screw terminals and includes a 1 meter flying lead cable for easy installation and wiring.

The minimum operating temperature for this model is -25°C.

This switch is certified to multiple international standards including CE, UL, CSA, VDE, and NKCR.

The push button diameter of this unit is 29.7 mm.

Typical applications include control of roller doors, emergency stop buttons on machinery, and various panel control functions in industrial environments.
