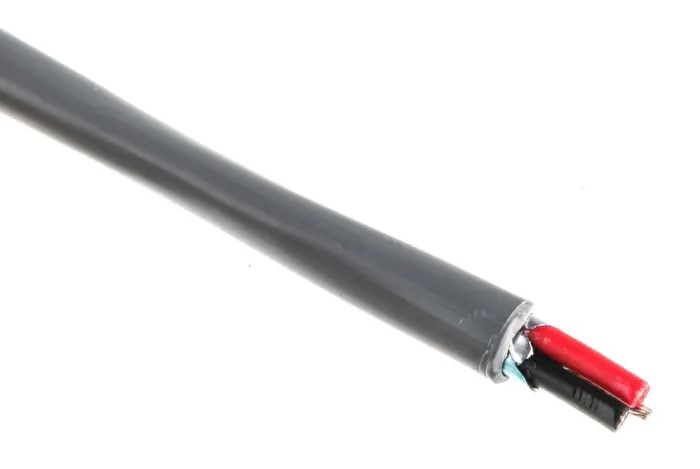

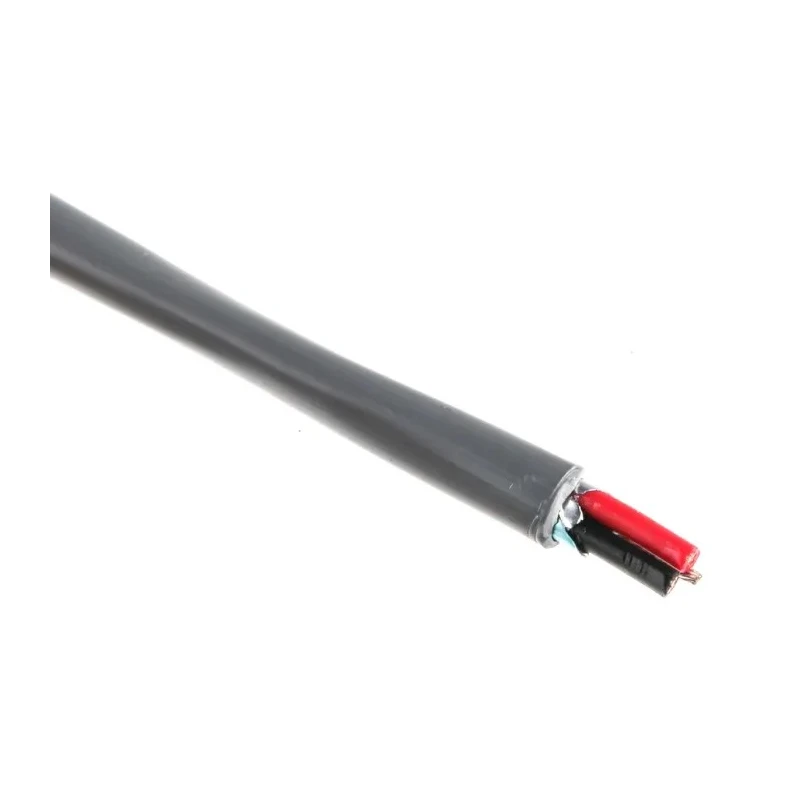

Belden 5400FE Screened Control Cable, 2 Cores, 0.52mm² 20 AWG, 152 m, Grey Polypropylene Sheath 5400FE 008500
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| Model | 5400FE 008500 |
| Cable Length | 152m |
| Series | 5400FE |
| Outside diameter | 3.51mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polypropylene |
| Standards/Approvals | Euroclass Eca |
| Jacket Colour | Grey |
| Fire Behaviour | FT4, UL 1666 Vertical Shaft |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 28AWG |
| Size of Strands | 28AWG |
| Cable CSA | 0.52mm² |
Key Features
- Constructed with stranded copper conductors for efficient electrical conductivity.
- Polypropylene grey sheath provides durable protection and easy installation.
- Screened design with patented Beldfoil shield reduces electromagnetic interference.
- Operating temperature range from -20°C to 75°C ensures performance in varied environments.
- Outer diameter of 3.51mm facilitates installation in tight wiring setups.
- Fire behaviour rated FT4 per UL 1666 vertical shaft standards for safety compliance.
- Bend radius of 1.375 inches offers flexible routing around corners and obstacles.
- Supplied in a 152 meter reel for customizable cable lengths per project needs.
Product Description
Belden 5400FE 008500 is a high-quality screened control cable designed for secure and reliable connectivity in automation, industrial, and communication systems. Featuring two stranded copper conductors of 0.52mm² cross-section (20 AWG), this cable ensures efficient signal transmission with minimal loss.
The cable is enclosed in a grey polypropylene sheath that offers robust mechanical protection while maintaining flexibility. The patented Beldfoil shielding fully covers the conductors to prevent electromagnetic interference (EMI) and crosstalk, essential in complex industrial environments.
Rated for 300V voltage and capable of operating in temperatures ranging from -20°C to 75°C, this cable can withstand challenging conditions. Its outer diameter of 3.51mm allows installation in busy panels or control cabinets, and the inclusion of a drain wire enhances safety by grounding electrical surges.
Belden 5400FE cable conforms to Euroclass Eca fire standards and UL 1666 FT4 vertical shaft certification, ensuring fire safety in building installations. The 1.375-inch bend radius enables flexible routing without compromising cable integrity.

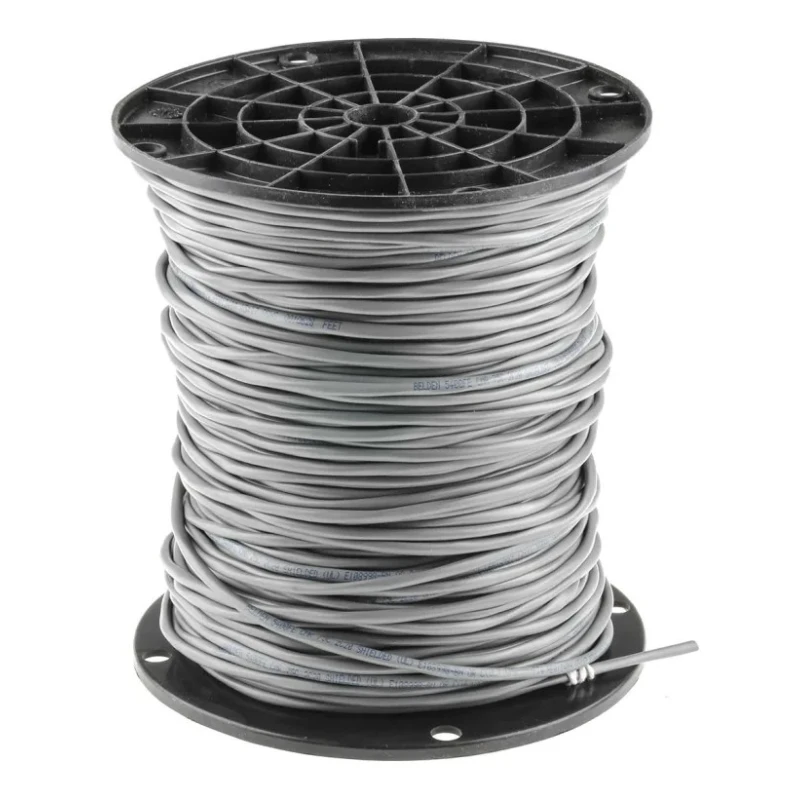

This product is shipped in a 152 meter reel, allowing users to cut exact lengths for varied industrial and automation projects including audio equipment, intercoms, and communication networks.
Stranded copper conductors provide high conductivity. Polypropylene sheath offers durability and chemical resistance. Screened with Beldfoil shield for EMI protection. Wide temperature tolerance of -20°C to 75°C. Voltage rating of 300V suitable for control applications.
Outer diameter of 3.51mm for compact installations. Certified fire safety with FT4 UL 1666 vertical shaft rating. Flexible 1.375-inch bend radius for easy routing. 152 meter length on reel for custom cuts.
This Belden Control Cable is ideal for industrial, manufacturing, automation, and communication system installations. Explore the range of Belden cables on EnvMart for comprehensive wiring solutions.
