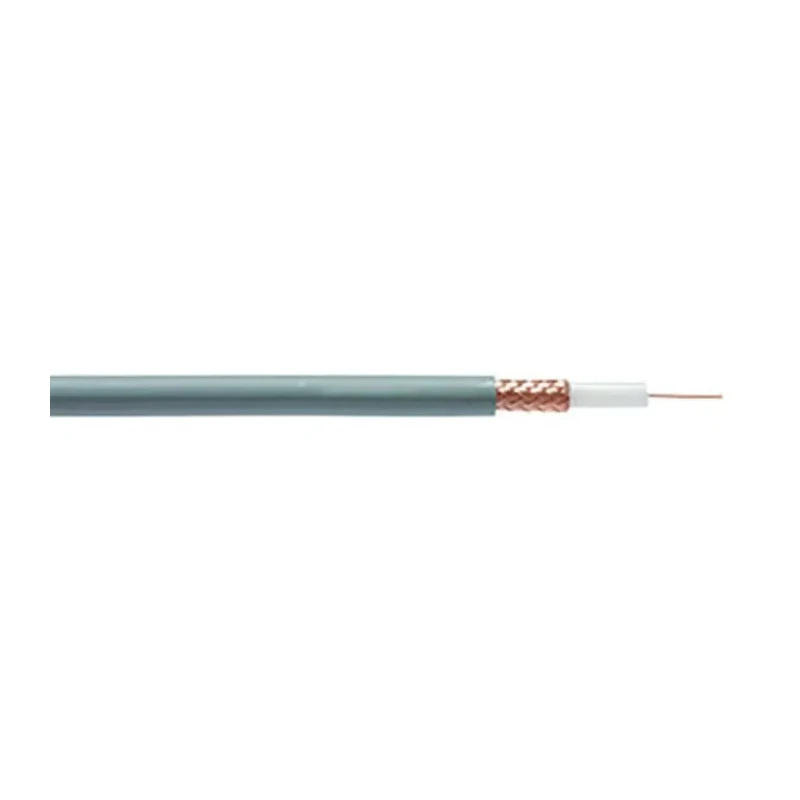

Belden 443945 Series RG59 Coaxial SDI Cable, 20AWG, 75 Ω, 5.9mm Diameter, 100 m Length, Grey, Unterminated RG59

Belden 443945 Series RG59 Coaxial SDI Cable, model RG59, delivers 100 meters of high-quality coaxial cable with a 20 AWG solid bare copper conductor and a characteristic impedance of 75 Ω. This grey cable features a 5.9 mm outside diameter and a low isolation capacitance of 53.5 pF/m, ensuring minimal signal loss and maintaining high signal integrity for professional telecommunications and broadcasting systems.

The cable's LSZH jacket complies with Euroclass Eca and IEC 60332-1-2 fire behavior standards, minimizing smoke emission and flame spread risk in case of fire, perfect for commercial and industrial safety requirements.

Operating reliably across a wide temperature range from -30°C to +70°C, it withstands demanding environmental conditions, making it suitable for various technical installations including security systems and broadcast facilities.

This unterminated cable design offers flexibility, allowing custom cuts and terminating according to specific installation needs. The foam PE insulation provides additional protection against electric shock, promoting safety during handling and operation.

Constructed with bare copper conductor for superior conductivity. Features a 5.9 mm outside diameter and low isolation capacitance of 53.5 pF/m for high integrity signals. Grey LSZH jacket provides flame retardancy and limits smoke emission during fire.

Wide operating temperature range from -30°C to +70°C for demanding environments. Unterminated design allows custom length configurations for varied applications. Complies with Euroclass Eca standard and IEC 60332-1-2 fire behavior specifications.

Ideal for telecommunications, security systems, and broadcast equipment installations. Foam PE insulation enhances electrical safety by protecting against electric shocks.

This Belden coaxial cable is produced in the Netherlands, ensuring high manufacturing standards. It is an ideal choice for industrial, commercial, and broadcast installations requiring reliable and safe signal transmission solutions. Explore similar high-quality Coaxial Cables and networking accessories on EnvMart for all your wiring and cabling needs.
