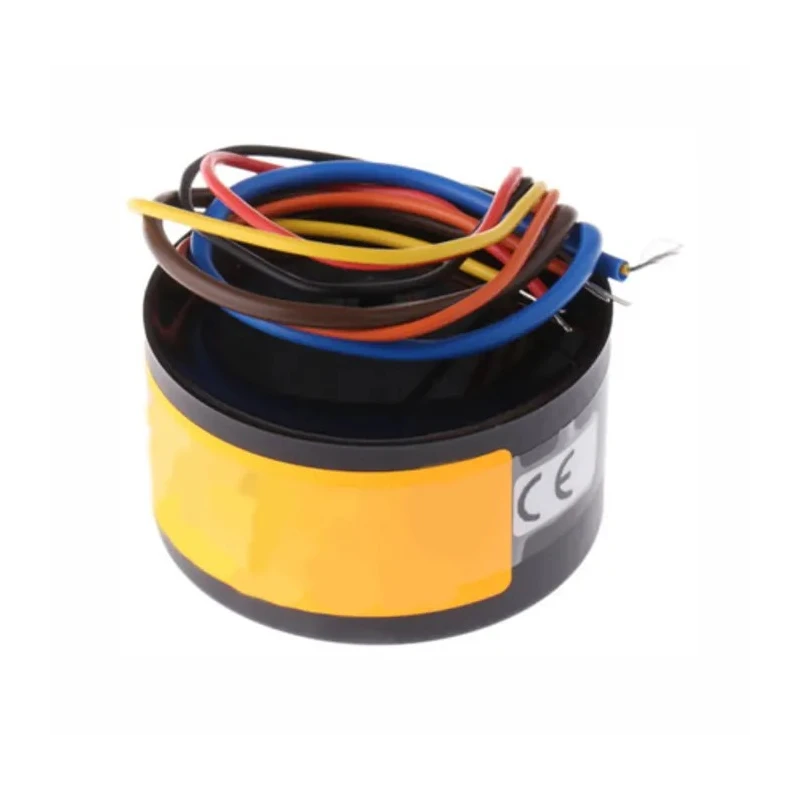

RS PRO 230 V ac 2 x 25 V ac Toroidal Transformer 2 Output 160 VA EN61558-1 Class II UL51 UL506 EN60065 Class II 123-4025

RS PRO 123-4025 Toroidal Transformer is a high-quality encapsulated transformer featuring a 230 V ac single primary winding and 2 x 25 V ac dual secondary windings designed for industrial and electronic power supply applications. The twin secondary windings allow for series, parallel, or independent use, designed to adapt to versatile power demands. It is engineered with a compact form factor having a diameter of 115 mm and height of 53 mm, ensuring efficient use of space.

The transformer is encapsulated with UL94-V0 rated Nylon 6.6 material for robust electrical insulation and meets stringent international standards including EN61558-1 Class II, UL51, UL506, and EN60065 Class II certifications, making it suitable for demanding safety and performance requirements in industrial, manufacturing, and electronic equipment contexts.

Boasting low induced noise and iron losses, this transformer ensures quiet operation and high efficiency. The double insulated primary leads and low surface temperature enhance operational safety, allowing installation in sensitive environments such as laboratory and HVAC systems.

Designed for reliable surface mounting with wire terminations, it is rated for a max secondary current of 10 A with an overall power rating of 160 VA. Operating frequencies range from 50 Hz to 60 Hz with high temperature tolerance from 105°C minimum to 180°C maximum, making it suitable for diverse industrial applications including power distribution, audio equipment, and control systems.

Each unit undergoes rigorous 100% electrical and flash testing for quality assurance. Note that the fixing bolt is not included with the product. Constructed with a single primary and dual secondary windings for versatile connection options.

Features encapsulated design complying with UL94-V0 nylon 6.6 material standard. Operates with low noise and low iron loss, enhancing efficiency. Designed for surface mounting with wire termination type. Suitable for operation between 105°C minimum and 180°C maximum temperatures.

Complies with EN61558-1 Class II, UL51, UL506, EN60065 Class II standards for safety and performance. Compact design measuring 115 mm diameter and 53 mm height ensures space saving installation. Ensured electrical safety with double insulated primary leads and low surface temperature for safe use.

Tested 100% electrically and flash tested to guarantee quality and durability.

This RS PRO Toroidal Transformer 123-4025 is an excellent choice for use in electronic components, power supplies, industrial automation systems, and HVAC applications. Discover our comprehensive range of robust transformers at EnvMart to meet your professional electrical requirements.
