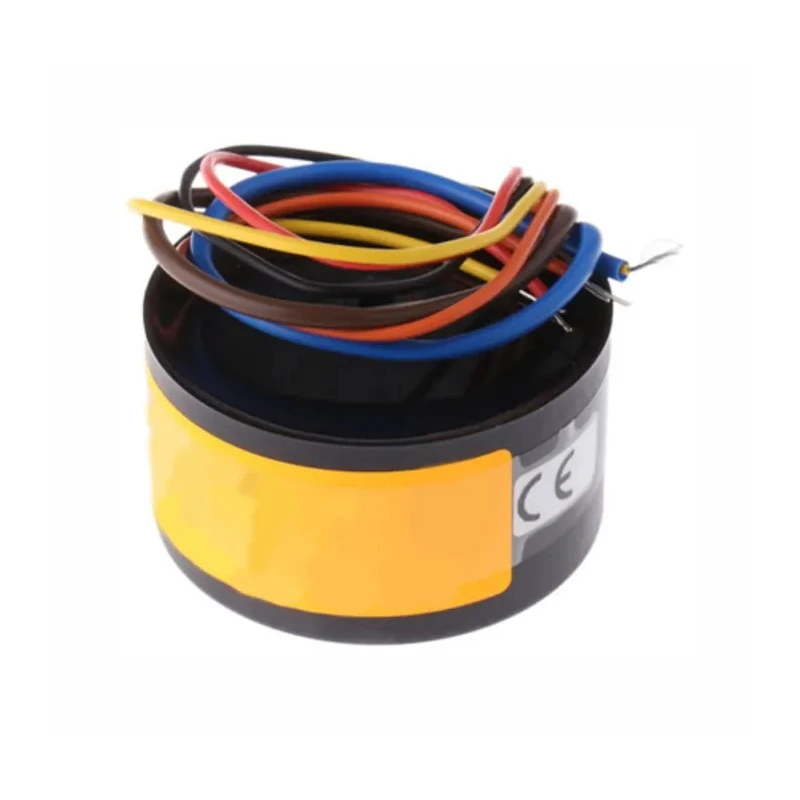

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 15 VA 50/60 Hz Surface Mount Wire Termination 123-4009

RS PRO model 123-4009 is a high-quality encapsulated toroidal transformer featuring a single 230 V ac primary winding and two 12 V ac secondary outputs that provide a combined power capacity of 15 VA. It is designed for efficient and reliable power conversion with low iron losses and minimal induced noise.

The transformer has a compact form factor with a diameter of 63 mm and height of 35 mm, making it suitable for surface mounting in electronic equipment. Its encapsulated case is made from Nylon 6.6 which meets UL94-V0 fire safety standards, ensuring durability and safety.

The dual secondary windings offer flexibility as they can be connected in series or parallel to suit different voltage requirements. It uses wire termination type leads and is rated for operation within 50 to 60 Hz frequency range, compatible with standard power systems.

This product comes fully electrically tested and complies with multiple international safety standards including UL 5085-1, UL 506, EN 60065, and EN 61558-1, making it highly reliable for industrial, laboratory, commercial, and electronic power supply applications. It ensures low surface temperature during operation, enhancing safety and longevity.

This transformer features dual 12 V ac secondary windings, which can be connected in series or parallel. Encapsulated construction with UL94-V0 Nylon 6.6 case material ensures fire safety and durability. Designed for low induced noise and low iron loss for efficient operation.

Double insulated primary leads provide electrical safety. Operation frequency range is 50 Hz minimum to 60 Hz maximum, ideal for standard power supplies. Compact size with 63 mm diameter and 35 mm height offers space-saving installation.

Wire termination type with surface mount fixing for easy installation. Fully electrical and flash tested to guarantee quality and reliability. Conforms to standards UL 5085-1, UL 506, EN 60065, and EN 61558-1. This transformer is suitable for industrial, laboratory, and electronic power supply applications.
