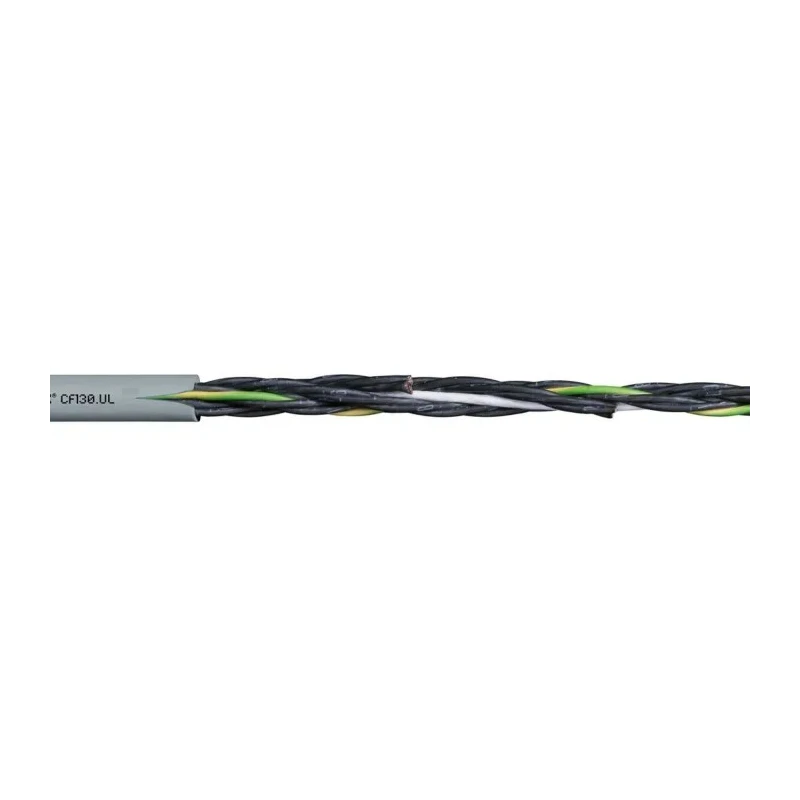

Igus Chainflex CF130.UL Control Cable, 4 Cores, 1.5mm² 15 AWG, Unscreened, Thermoplastic Elastomer Jacket, 10 CF130.15.04.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.15.04.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable is unscreened and not armoured, suitable for medium load requirements.
- Operating voltage is rated at 500V, withstanding temperatures from -5°C to 70°C.
- Jacket material is flame-retardant and silicon-free, making it torsion resistant and suitable for indoor use.
- The cable supports freely suspended travel distances and gliding applications up to 50 meters.
- It complies with IEC 60332-1-2, CEI 20-35, FT1, VW1 flame retardant standards.
- The outer sheath is a low-adhesion PVC mixture optimized for energy chains according to DIN VDE 0282 Part 10.
- The conductor consists of fine-wire stranded bare copper wires following EN 60228.
- Its grey thermoplastic elastomer jacket provides durability and operational reliability in industrial automation environments.
Product Description
Igus CF130.15.04.UL Control Cable is a high-quality industrial cable designed for electrical and automation applications requiring reliable 4-core wiring solutions. Manufactured in Japan, it features 1.5mm² (15 AWG) stranded bare copper conductors unscreened for versatile usage where shielding is not critical. The grey thermoplastic elastomer jacket offers flame retardant protection to IEC 60332-1-2 standards and is silicon-free, providing resistance to oils and mechanical torsion stresses typically encountered in indoor industrial settings.
With a rated voltage of 500V and temperature range from -5°C to 70°C, this cable suits medium load requirements while enabling freely suspended and gliding applications in energy chain systems up to 50 meters in length. The outer sheath is specifically adapted to limit adhesion, complying with DIN VDE 0282 Part 10 for enhanced performance in dynamic motion environments.
The conductor conforms to EN 60228 with fine wire strands of bare copper to ensure excellent conductivity and flexibility. This Control Cable is not armoured, facilitating ease of installation in constrained automation and control cabinet wiring scenarios.
Its flame retardant properties meet multiple international standards including CE and EN certifications, ensuring safety and compliance in hazardous-trained environments while its unscreened design optimizes cost where electrical interference is minimal.
It is suitable for indoor use, especially in industrial automation, electrical power control systems, and machinery wiring. Careful selection of cable jacket materials enables prolonged durability and reduced maintenance.
Multiple features ensure this cable is ideal for medium load industrial control applications with standard compliance and quality assurance.
For more industrial cable solutions, browse the Electronics & Electricals category at EnvMart to find complementary networking, power, and signal cable products from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated voltage of this control cable is 500V.
The maximum operating temperature for this model is 70°C.
This control cable has 4 cores.
The conductor is made of stranded bare copper, and the jacket is made of thermoplastic elastomer.
The outer diameter of this control cable is 8mm.
This cable is unscreened, making it suitable for applications where shielding is not critical.
It complies with IEC 60332-1-2, CEI 20-35, FT1, and VW1 flame retardant standards.
The minimum operating temperature for this cable is -5°C.
The cable length of this model is 10 meters.
This control cable is suitable for indoor use in industrial automation, electrical power control systems, and machinery wiring.
The low-adhesion PVC mixture in the outer sheath is optimized for energy chains, enhancing performance in dynamic motion environments.
This control cable is manufactured in Japan.
