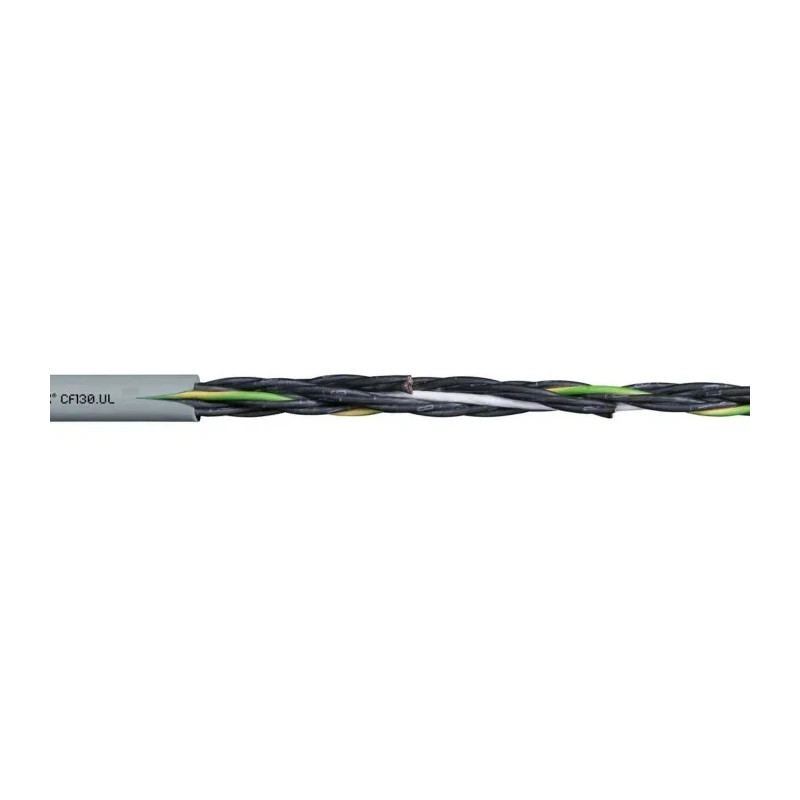

Igus Chainflex PVC Control Cable 4 Cores 0.75mm² 18 AWG Unscreened 10 m Grey Thermoplastic Elastomer Sheath CF130.07.04.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.07.04.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 6.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
Key Features
- The cable is silicon-free and resistant to oil, ensuring durability.
- It is flame-retardant as per IEC 60332-1-2 standards.
- Designed for indoor applications with torsion resistance for flexible movement.
- Suitable for freely suspended travel distances and gliding up to 50 meters.
- Constructed with fine-wire stranded bare copper conductors for enhanced conductivity.
- Outer sheath uses low-adhesion PVC mixture adapted for Energy Chains® applications.
- This control cable operates at 500V and supports a temperature range from -5°C to 70°C.
- It is compliant with CE and EN certifications, manufactured in Japan.
Product Description
Igus CF130.07.04.UL Chainflex® PVC Control Cable is a high-quality control cable engineered for medium load industrial and automation applications. Featuring 4 cores of 0.75mm² (18 AWG) fine-wire stranded bare copper conductors, this cable provides excellent conductivity and flexibility. The unscreened design and flame retardant properties make it suitable for safe and reliable indoor use.
The cable's grey thermoplastic elastomer jacket offers durability and protection, ensuring torsion resistance and oil resistance, which are essential for dynamic applications such as in energy chains and robotic equipment. Designed for freely suspended travel distances and gliding applications up to 50 meters, this cable maintains performance over repeated flex cycles.
Operating voltage is rated at 500V with an operating temperature range of -5°C to 70°C, suitable for a variety of industrial environments. The outer sheath consists of a low-adhesion PVC mixture specialized for Energy Chains® demands, enhancing longevity and reducing wear.
Compliance with IEC 60332-1-2 flame retardant standards, CE and EN certifications confirms adherence to stringent quality and safety norms. The product is manufactured in Japan, reflecting high production standards.
Silicon-free and oil-resistant construction for extended cable life. Dynamic cable designed for torsion and flexible movement within machinery. Flame retardant according to IEC 60332-1-2 to ensure safety. Fine-wire stranded bare copper conductors optimize electrical performance.
Low-adhesion PVC outer sheath adapted for Energy Chains® reduces friction and wear. Voltage rating of 500V suitable for medium load industrial controls. Temperature range from -5°C to 70°C for diverse climatic conditions.
Unscreened, lightweight design ideal for indoor automation and control applications. Manufactured in Japan ensuring quality and durability.
This control cable is ideal for industrial automation, manufacturing processes, and electrical installations where flexible and reliable performance is required. It is suited for use in robotics, machine tools, and energy chain cable management systems.
Explore more quality Control Cables and industrial wiring solutions within the Electronics & Electricals category on EnvMart for optimized system integration and enhanced operational reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 500V.
The maximum operating temperature for this model is 70°C.
This cable has 4 cores.
The outside diameter of the cable is 6.5mm.
The cable features bare copper conductors and a thermoplastic elastomer jacket with a low-adhesion PVC outer sheath.
This cable is designed for indoor applications and may not be suitable for outdoor use.
The cable complies with CE and EN certifications and is flame retardant according to IEC 60332-1-2 standards.
The minimum operating temperature for this cable is -5°C.
The length of this control cable is 10 meters.
This control cable is suitable for industrial automation, manufacturing processes, and electrical installations, particularly where flexible performance is required.
The American Wire Gauge (AWG) rating of this cable is 18 AWG.
The low-adhesion PVC outer sheath reduces friction and wear, making it suitable for Energy Chains® applications.
