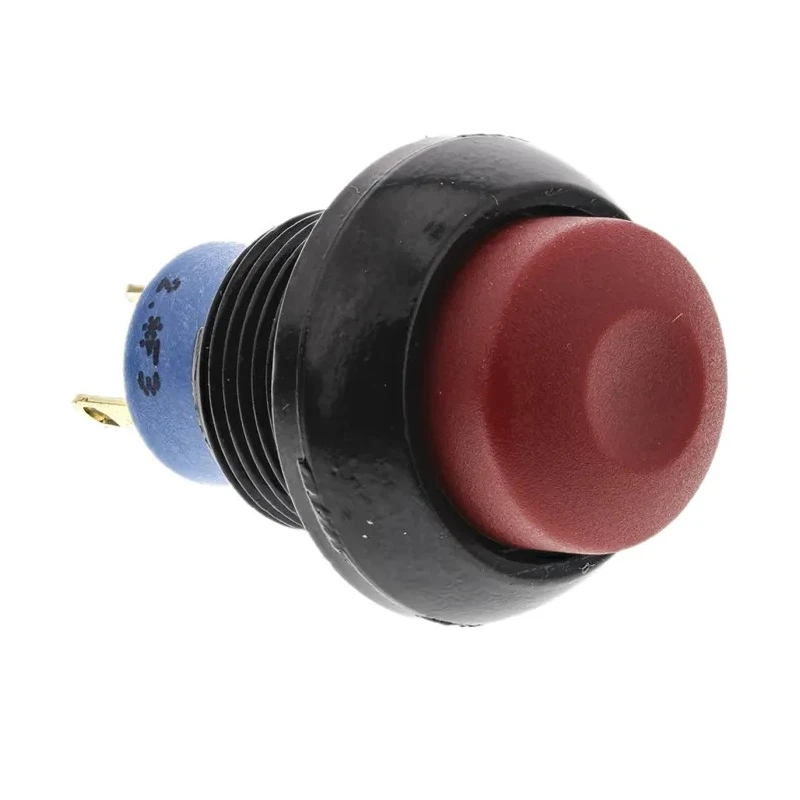

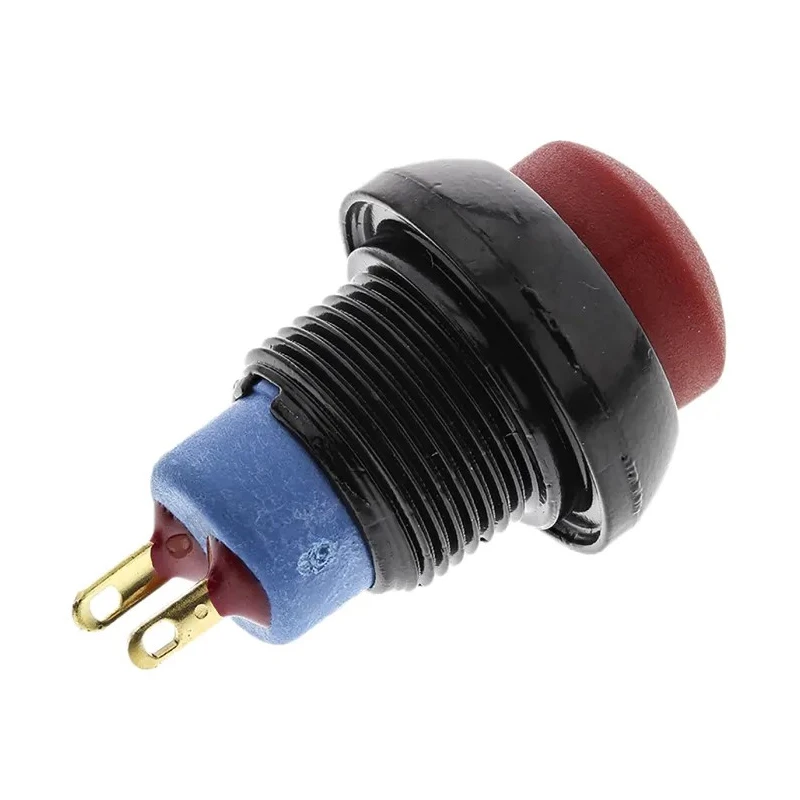

APEM IP Series Push Button Switch Momentary Panel 12.9 mm Cutout SPST IP67 50 V dc IPR3SAD6104
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IPR3SAD6104 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 50V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
| .Very robust | IK06 |
Key Features
- This push button switch features a momentary operation type suitable for panel mounting applications.
- It has a red plunger actuator with non-illuminated style for clear user feedback.
- The switch is sealed to IP67 standard, providing excellent resistance to harsh environments and water ingress.
- Designed for a contact current rating of 5A AC and contact voltage of 50V dc.
- It has a compact width of 17.5 mm to fit standard control panel cutouts.
- Operating temperature range is from -40°C to 85°C allowing use in industrial conditions.
- The switch construction is robust with an impact rating of IK06, resistant to salt spray.
- Terminal type is solder lug for secure electrical connections.
Product Description
APEM IPR3SAD6104 is a robust and high-quality IP Series push button switch designed for industrial and harsh environment applications. It provides momentary switch action with a single-pole single-throw (SPST) contact configuration, ideal for control panels requiring reliable user interface switches.
The switch features a 12.9 mm panel cutout size accommodating standard mounting dimensions, with a red plunger actuator that offers excellent tactile feedback. It is sealed to IP67 protection standards, making it dust-tight and protected against temporary immersion in water, suitable for demanding environments such as manufacturing and automation equipment.
With a contact rating of 5A AC and 50V dc operating voltage, it supports moderate power switching needs safely. The switch terminals are solder-type, designed for strong and durable connectivity. Operable across a wide temperature span from -40°C to 85°C, it withstands extreme thermal conditions prevalent in industrial settings.
The device construction complies with IK06 impact standards and resists corrosive salt spray, ensuring durability and longevity. The design adheres to RoHS environmental compliance standards and is manufactured in France, reflecting stringent quality control and production standards.
This push button switch features a momentary operation type with panel mounting. Red plunger actuator provides clear indication and excellent touch feedback. IP67 rating guarantees complete protection against dust and water ingress.
Contact current rating up to 5A AC ensuring reliable performance. Temperature operation from -40°C to 85°C for industrial applications. Robust mechanical construction with IK06 impact resistance. Solder lug terminals for secure electrical connections.
RoHS compliant ensuring environmentally safe manufacturing. Compact width of 17.5 mm fits standard panel cutouts. Manufactured in France with high quality assurance.
This push button switch is widely used in industrial automation, electrical panels, machinery control, and harsh environmental applications where durability and reliable momentary switching is required.
Explore more reliable Push Button Switches and industrial control devices in the Electronics & Electricals category on EnvMart for expanded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 5A AC.
This unit can operate at a maximum temperature of 85°C.
It features solder lug terminals for secure electrical connections.
The switch has an IP67 rating, meaning it is dust-tight and protected against temporary immersion in water.
The required panel cutout size for this switch is 12.9 mm.
It has a single-pole single-throw (SPST) contact configuration.
The minimum operating temperature is -40°C, allowing use in extreme conditions.
The actuator is red, providing clear user feedback during operation.
Yes, this model is RoHS compliant, ensuring environmentally safe manufacturing.
It features a momentary switch operation type, suitable for various control applications.
The width of this model is 17.5 mm, which fits standard control panel cutouts.
This push button switch is manufactured in France, reflecting high quality assurance standards.
