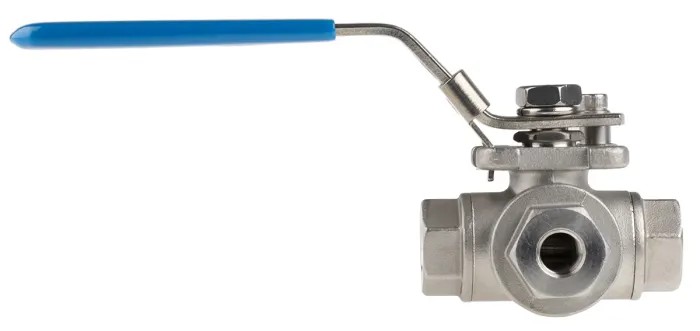

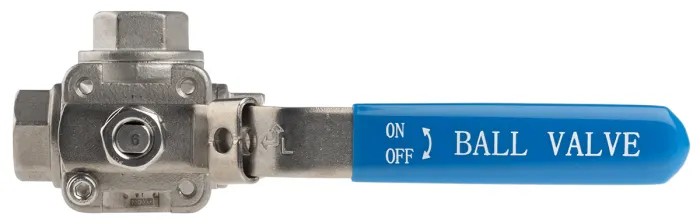

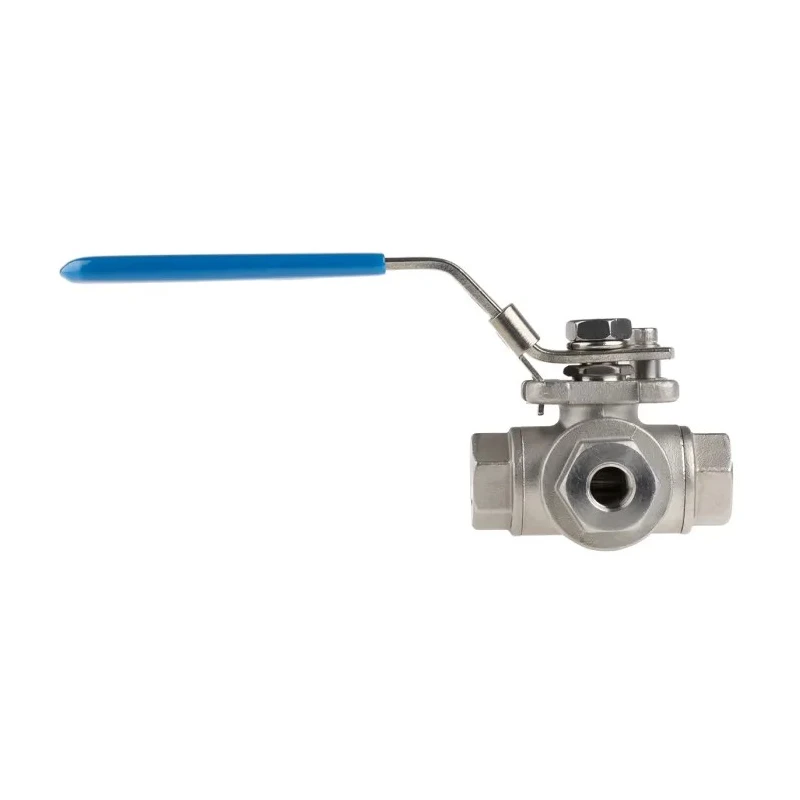

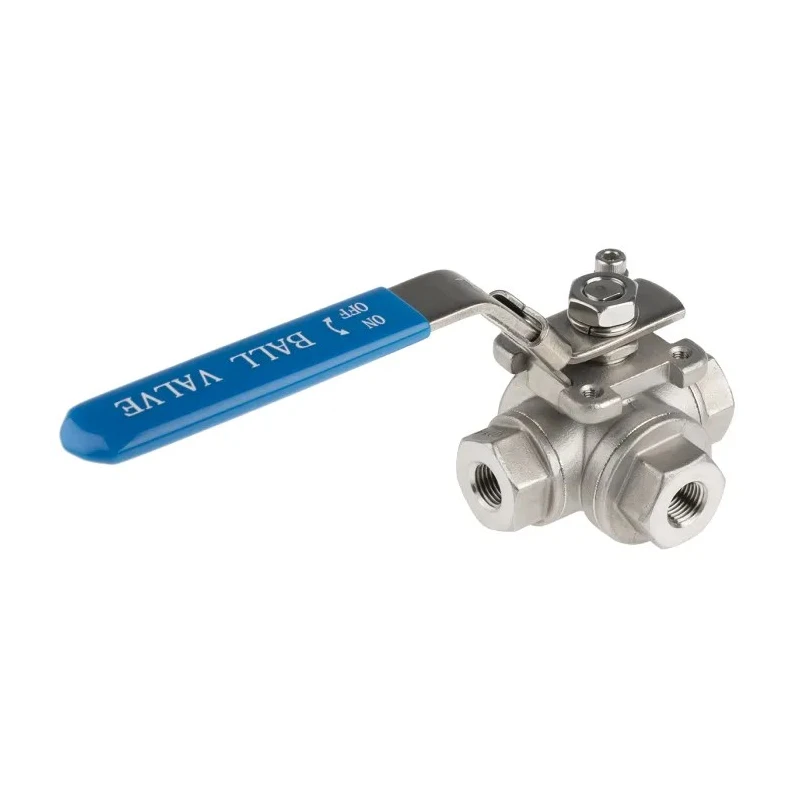

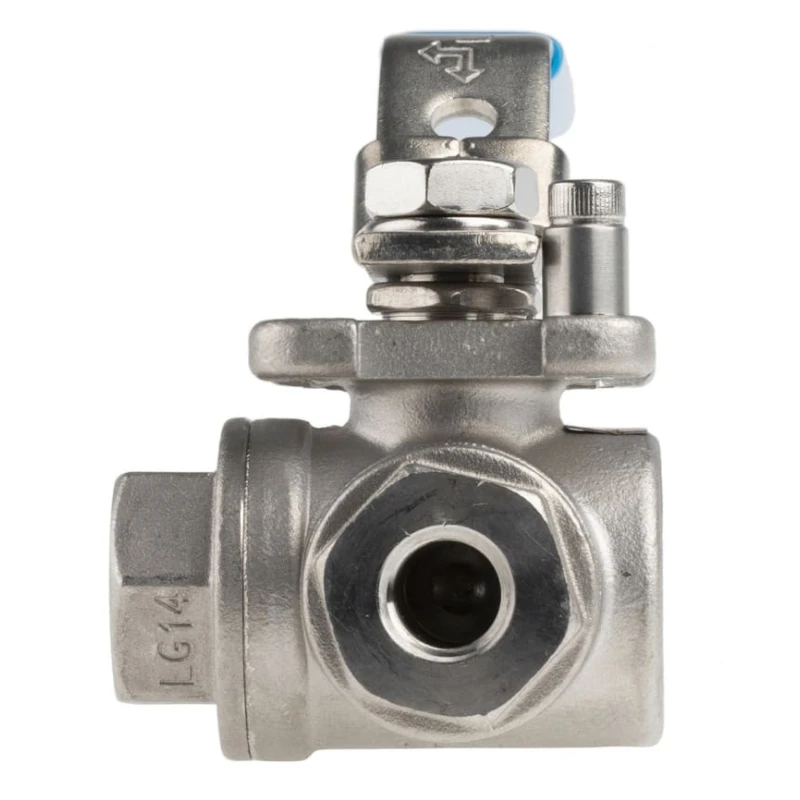

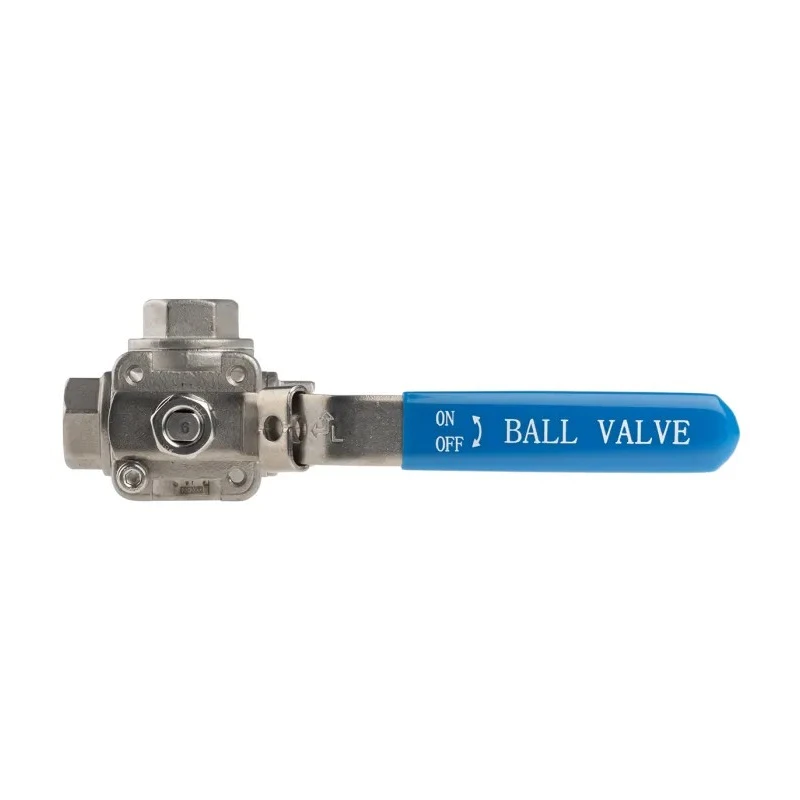

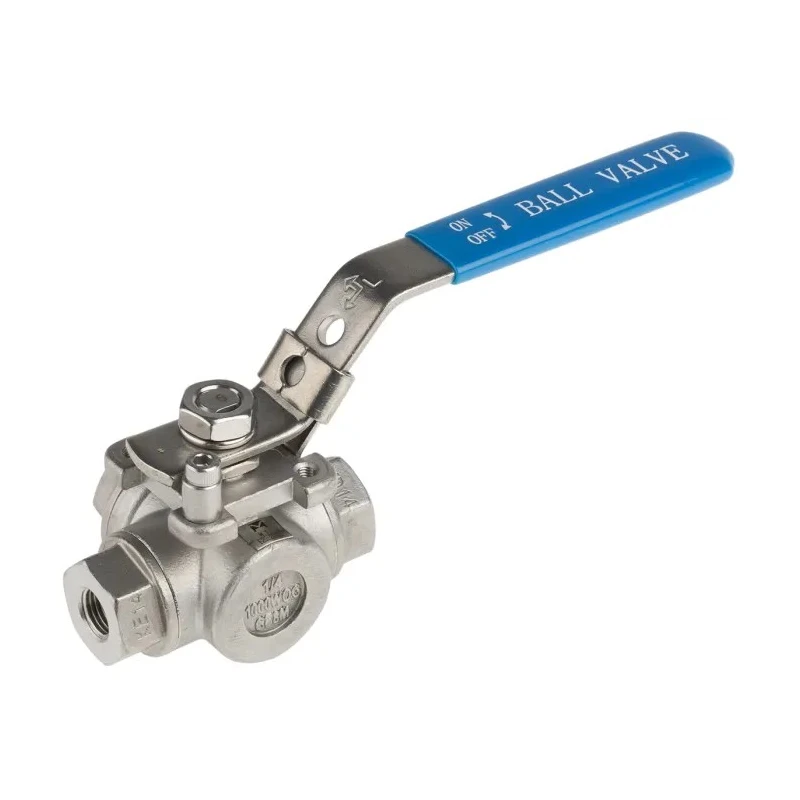

RS PRO Stainless Steel Threaded 3-Way Ball Valve BSPP, 1/4 in Female Port, 68 Bar Maximum Pressure, Operating 499-1865
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 68 bar |
| Outlet Connection Type | Threaded |
| Operating Temperature Range | -15 to +232 C |
| Model | 499-1865 |
| Handle Material | Stainless Steel |
| Valve Type | 3-Way |
| Maximum Operating Temperature | 232°C |
| Minimum Operating Temperature | -15°C |
| Standards/Approvals | ISO 5211 |
| Inlet Port Size | 1/4 in |
| Inlet Thread Standard | BSPP |
| Inlet Port Gender | Female |
| RS PRO Nitrile Rubber (NBR) Pipe Insulation x 3 mm x 15 mBrand | RS PRO |
| Pressure Rating WOG | 68 bar |
| S/steel L port ball valve,1/4in BSP FBrand | NEUTRAL |
Key Features
- The valve body is constructed of corrosion-resistant stainless steel for durability.
- Designed to operate at pressures up to 68 bar.
- Suitable for temperature ranges from -15°C to 232°C.
- Manual operation with quarter-turn stainless steel handle for reliable shut-off.
- Ideal for air, gases, water, steam, chemicals, and petrochemical product applications.
- Conforms to ISO 5211 standards ensuring quality and performance.
- The 1/4 inch inlet and outlet female BSPP threaded ports enable easy installation.
- Operates well in aggressive environments due to stainless steel components.
Product Description
RS PRO 499-1865 is a high-quality stainless steel threaded 3-way ball valve engineered for industrial flow control applications. Featuring BSPP female threaded inlet and outlet connections sized at 1/4 inch, this valve is designed for manual quarter-turn operation providing precise and reliable shut-off capability.
Constructed with a stainless steel body and handle, it offers excellent corrosion resistance and durability, ideal for use in aggressive environments involving air, gases, water, steam, chemicals, and petrochemical products. The valve can withstand maximum operating pressures of 68 bar, and operates effectively within a temperature range of -15°C to 232°C. Manufactured to conform with ISO 5211 standards, the valve ensures consistent quality and robustness.
The internal components consist of a ball and stem made from AISI 316 stainless steel, providing superior resistance to corrosion and wear. PTFE is used in the body seal, thrust washer, and packing material, ensuring tight sealing and operational reliability over long service periods. The valve operates with a stainless steel handle allowing for smooth manual quarter-turn actuation for L-port flow control configurations.
RS PRO's stainless steel 3-piece ball valves are designed for ease of maintenance; they can be disassembled for cleaning and inspection, reducing downtime in demanding industrial settings. This model, 499-1865, represents the L-port variant with 1/4 inch BSP female ports, suitable for numerous applications including heating systems, water treatment plants, gas flow management, and liquid control systems.
The valve's stainless steel construction offers superior corrosion resistance for enhanced durability. Maximum operating pressure of 68 bar supports high-pressure applications. Operating temperature range from -15°C to 232°C suits various industrial environments.
Quarter-turn manual operation enables quick and effective flow control. Conforms to ISO 5211 standards for quality assurance. PTFE seals provide reliable and leak-tight performance. Ball and stem made from AISI 316 stainless steel ensure chemical resistance.
Female BSPP threaded ports sized 1/4 inch facilitate straightforward installation. 3-way L-port design allows for versatile flow path configurations. Easy maintenance with 3-piece valve design enabling disassembly.
This ball valve is extensively used in industrial applications such as HVAC systems, water treatment facilities, chemical processing, and petrochemical plants. It provides reliable shut-off and flow direction control, contributing to safer and more efficient system operations. Choose RS PRO 499-1865 for a robust stainless steel valve solution that meets stringent industrial demands.
Explore EnvMart's comprehensive range of Industrial Valves and fittings to find compatible components and accessories tailored to your industrial plumbing and fluid control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum operating pressure of 68 bar.
It operates effectively within a temperature range of -15°C to 232°C.
The valve features 1/4 inch female BSPP threaded inlet and outlet connections.
The valve body and handle are constructed from stainless steel, while the internal components include AISI 316 stainless steel and PTFE seals.
It features a manual quarter-turn operation with a stainless steel handle for reliable shut-off.
This model conforms to ISO 5211 standards, ensuring quality and performance.
It is classified as a 3-way ball valve with an L-port design, allowing for versatile flow path configurations.
Yes, the stainless steel construction provides excellent corrosion resistance, making it suitable for aggressive environments.
It is suitable for various applications including HVAC systems, water treatment facilities, chemical processing, and petrochemical plants.
The valve features a 3-piece design that allows for easy disassembly for cleaning and inspection, reducing downtime.
The pressure rating for water, oil, and gas (WOG) is also 68 bar.
The weight of this model is not specified in the provided data.
