CAMDENBOSS 7000 Series Grey Grey Lid ABS Enclosure IP65 Rated 80 mm x 220 mm x 145 mm CRDCERG09

The CAMDENBOSS CRDCERG09 is a 7000 Series ABS enclosure designed for electrical and industrial equipment protection. It measures 80 mm in height, 220 mm in length, and 145 mm in width, with an IP65 protection rating when the gasket is fitted, making it ideal for dusty and wet environments.

Constructed from high-quality ABS material, this enclosure combines durability with excellent resistance to environmental factors including temperature up to 85°C. The grey body and lid conform to the RAL 7035 colour standard, providing a professional finish suitable for commercial and industrial installations.

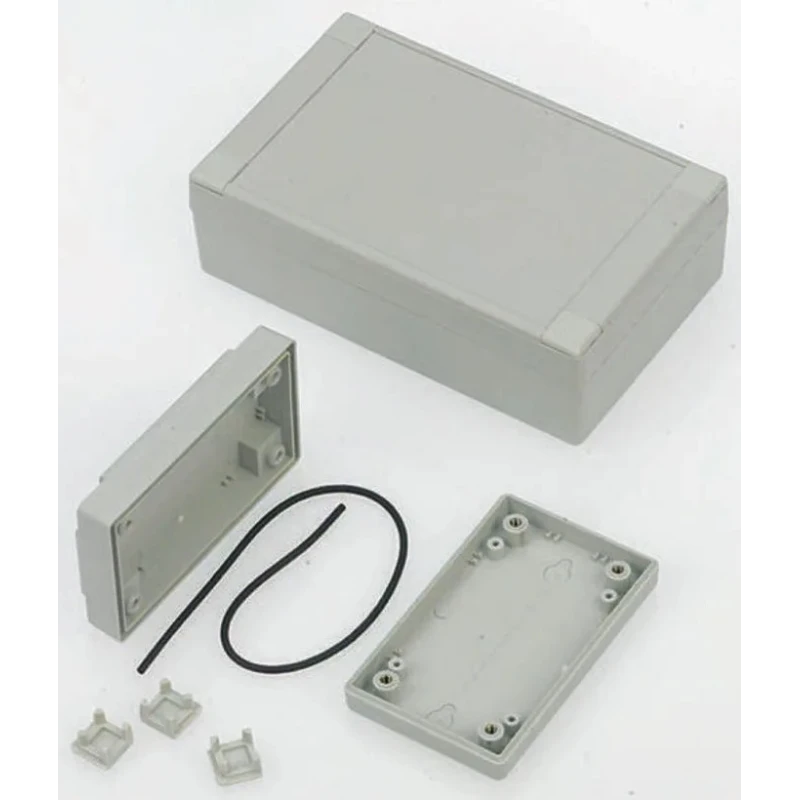

The enclosure's design features hidden lid-to-base fixing screws concealed behind push-on caps, ensuring a smooth exterior and added security. It comes supplied with a gasket to maintain the IP65 rating by preventing ingress of dust and water. The enclosure can be mounted on walls via separate mounting feet or pre-cut knockout holes located in the base, with an optional wall mounting kit available.

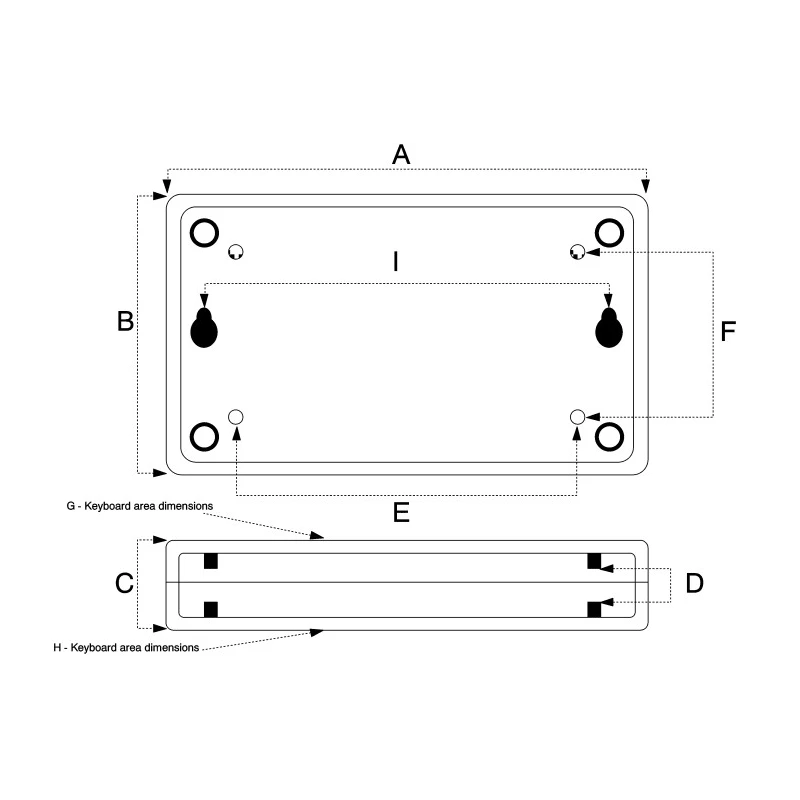

Versatility is enhanced with vertical PCB support guides molded into both the base and lid, along with 5mm high horizontal fixing bosses for secure component installation. It includes two keyboard mounting areas of different sizes on the top and base for enhanced flexibility of equipment installation.

This enclosure is suitable for a variety of industrial, electrical, automation, and laboratory applications where robust protection and ease of installation are paramount. It is particularly useful in environments requiring protection against dust and water ingress such as manufacturing plants, control panels, and instrumentation chasses.

Made from durable ABS material ensuring resistance to impact and environmental conditions. IP65 rated when gasket is fitted, providing excellent dust and water ingress protection. Features a grey body and lid with RAL 7035 colour for industrial standard aesthetics.

Hidden lid-to-base fixing screws secured behind push-on caps for clean surface and tamper resistance. Includes gasket for sealing and protection against dust and moisture. Wall mountable using separately designed feet or pre-cut knockout holes with optional wall mounting kit.

Vertical support guides for PCB mounting included in base and lid with horizontal fixing bosses. Offers two keyboard areas on top and base for versatile mounting options. Temperature resistant up to 85°C, suitable for general electrical and industrial applications.
