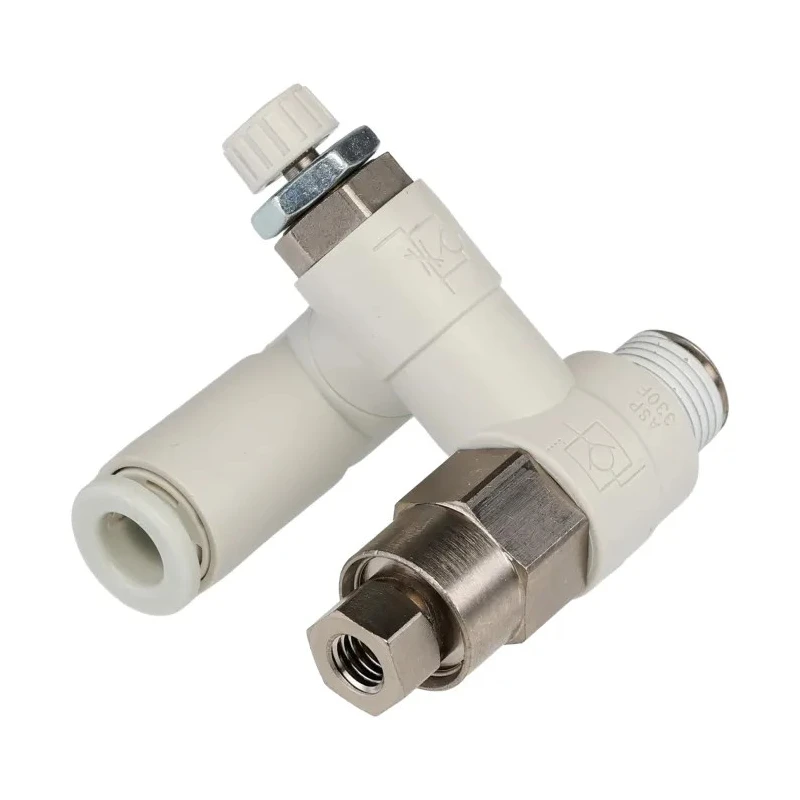

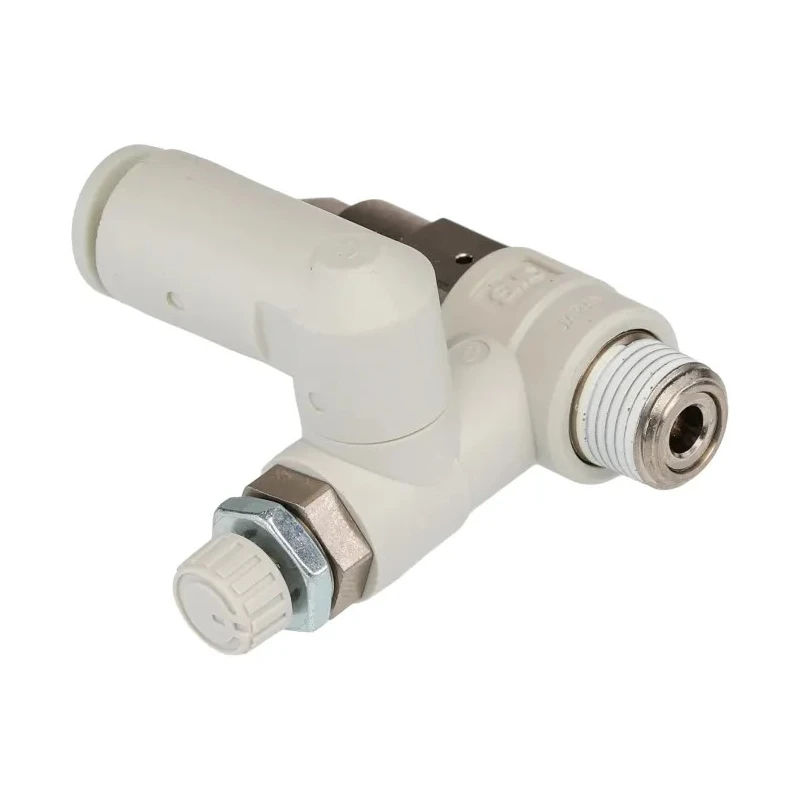

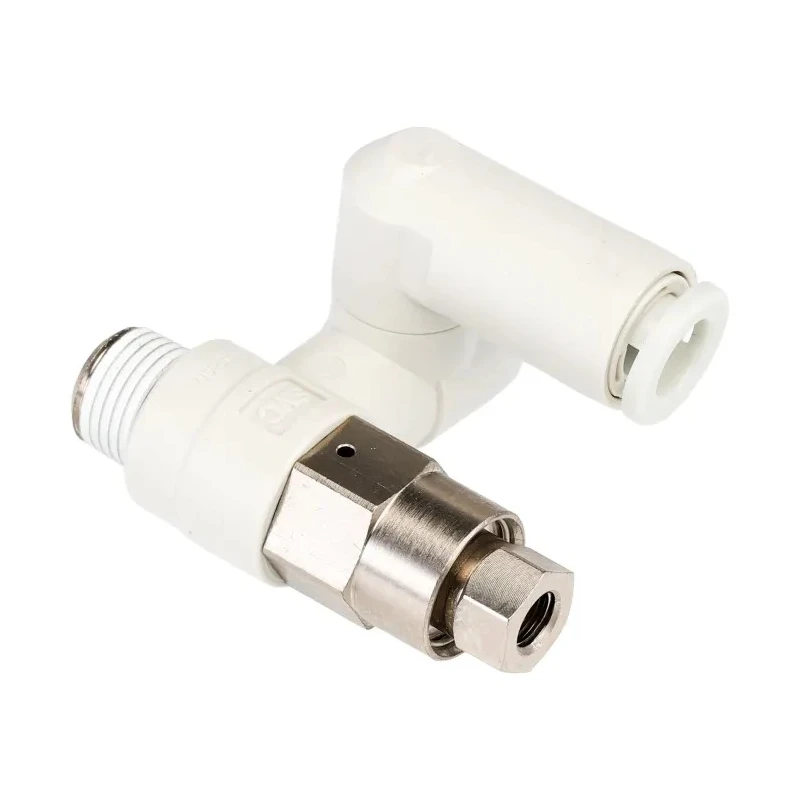

SMC AS Series Flow Controller Flow Regulator R Tube 1 MPa Max Operating Pressure 60°C ASP330F-01-06S



Category Flow Controller Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Material	Stainless Steel, Steel, Hydrogenated Nitrile Butadiene Rubber, Brass, Electroless Nickel Plated, Nitrile Butadiene Rubber, Polybutylene Terephthalate, Polyoxymethylene, Zinc Chromated
Maximum Operating Pressure	1 Mpa
Outlet Connection Type	Tube
Model	ASP330F-01-06S
Series	AS
Maximum Operating Temperature	60°C
Sub Type	Flow Controller
Minimum Operating Temperature	-5°C
Proof Pressure	1.5MPa
Standards/Approvals	UL Standard V-0
Inlet Thread Standard	R
Minimum Operating Pressure	0.1MPa

Key Features

The device has an adjustable outlet pressure range from 0.1 MPa to 1 MPa.
It features a 360° swivelling design for versatile installation options.
Control is enhanced by 8 to 10 needle rotations for fine adjustment.
The regulator body is made of durable polybutylene terephthalate (PBT) for long-lasting performance.
The threaded inlet is R 1/8 male type, ensuring secure connection.
Materials include stainless steel, brass, electroless nickel plating and nitrile butadiene rubber.
This product is RoHS compliant, ensuring environmental safety.
It operates effectively between -5°C and 60°C.

Product Description

The SMC ASP330F-01-06S is a high-efficiency Flow Controller and flow regulator designed for pneumatic applications requiring precise fluid management. Featuring a threaded inlet port R 1/8 male and a 6 mm tube outlet, this flow regulator ensures minimal pressure loss and accurate control of fluid flow dynamics.

Constructed from robust materials including stainless steel, brass, electroless nickel plating, nitrile butadiene rubber, and a durable polybutylene terephthalate (PBT) body, it offers excellent chemical resistance and long service life. The body is compliant with RoHS standards, reflecting its environmentally conscious design.

Operating pressure ranges from 0.1 MPa to 1 MPa with a proof pressure of 1.5 MPa and temperature range from -5°C to 60°C, making it suitable for a wide range of industrial uses. The 360° swivelling feature provides versatile installation flexibility, while 8 to 10 needle rotations enable fine adjustment for sensitive flow control needs.

This regulator is widely applicable in automation systems, pneumatic machinery, and electrical equipment where precise and reliable flow regulation is critical. Its compact and robust design allows for efficient integration into fluid control processes.

The device has an adjustable outlet pressure range from 0.1 MPa to 1 MPa. It features a 360° swivelling design for versatile installation options. Control is enhanced by 8 to 10 needle rotations for fine adjustment. The regulator body is made of durable polybutylene terephthalate (PBT) for long-lasting performance.

The threaded inlet is R 1/8 male type, ensuring secure connection. Materials include stainless steel, brass, electroless nickel plating and nitrile butadiene rubber. This product is RoHS compliant, ensuring environmental safety.

It operates effectively between -5°C and 60°C. Maximum operating pressure is rated at 1 MPa with proof pressure at 1.5 MPa. Ideal for use in pneumatic control systems, automation, and electrical equipment requiring precise flow regulation.
