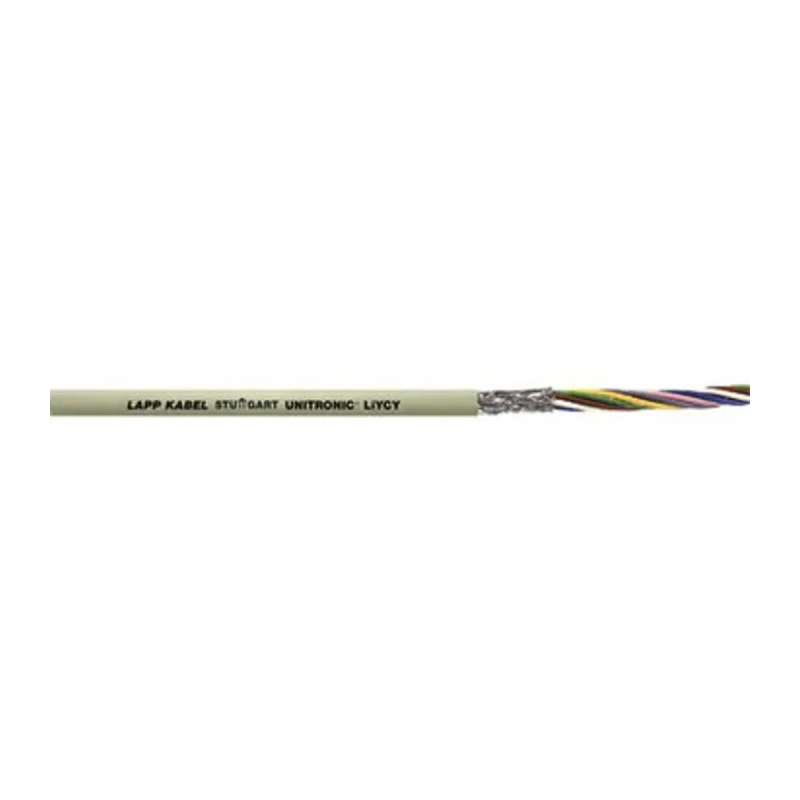

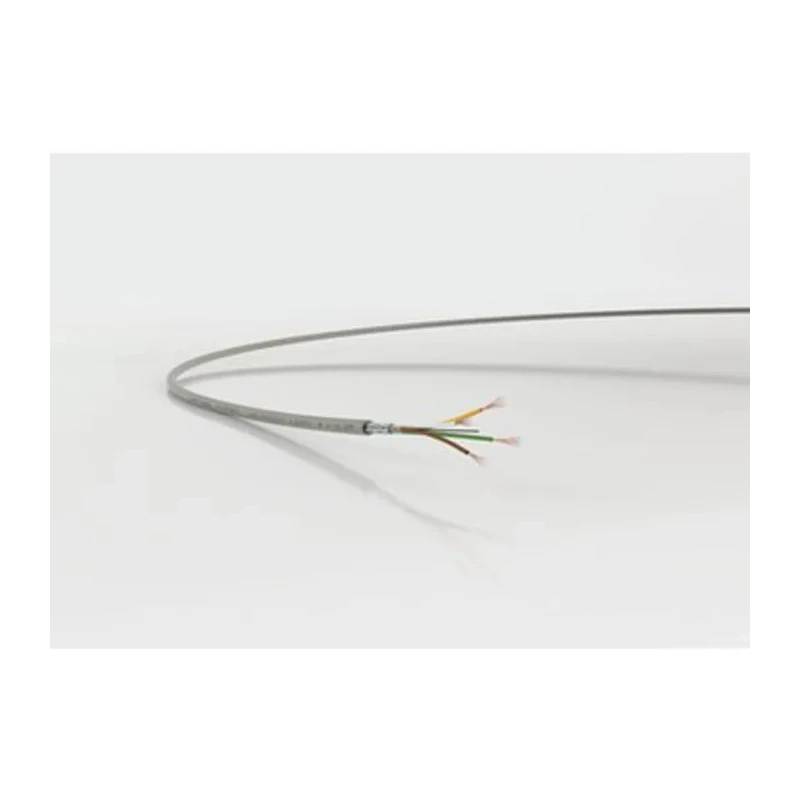

Lapp UNITRONIC LiYCY Series Screened Data Cable 20 Pairs 20 Cores 0.25 mm² Cross Section 100 m Length Grey PVC Sheath 0034420

Free Delivery in India | Lowest Global Shipping Charges

Lapp UNITRONIC LiYCY Series Screened Data Cable 20 Pairs 20 Cores 0.25 mm² Cross Section 100 m Length Grey PVC Sheath 0034420

Name: Lapp UNITRONIC LiYCY Series Screened Data Cable 20 Pairs 20 Cores 0.25 mm² Cross Section 100 m Length Grey PVC Sheath 0034420
Brand: Lapp
SKU: 190639
Price: 747.89 USD
Availability: InStock



Category Data Cable Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Lapp
CROSS SECTIONAL AREA	0.25 mm²
Model	0034420
Cable Length	100m
Series	UNITRONIC LiYCY
Outside diameter	9.3mm
Maximum Operating Temperature	80°C
Number Of Cores	20
Conductor Material	Bare Copper
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE, RoHS
Jacket Colour	Grey
Screened/Unscreened	Screened
Conductor Type	Stranded
Number of Strands	14
Core Strands	14 x 0.14mm
Size of Strands	0.14mm
• Operating temperature with occasional flexing	-5°C to +70°C
Number of Pairs	20
• Operating temperature with fixed installation	-40°C to +80°C

Key Features

The cable has a flame-retardant PVC base insulation with DIN colour coding.
Its cores are stranded in layers with 14 strands per core measuring 0.14 mm each.
The screened braid consists of tinned wires to minimize electrical interference.
Designed according to VDE 0472 part 804 and flame-retardant IEC 60332-1-2 standards.
Operating voltage is rated at 250 V with temperature range of -40°C to +80°C for fixed installations.
Outside diameter measures 9.3 mm with a grey polyvinyl chloride sheath.
Suitable for use in dry or damp environments and fixed installations requiring space-saving.
Approvals include CE and RoHS for compliance with European standards.

Product Description

The Lapp 0034420 UNITRONIC LiYCY screened data cable is a high-quality, flame-retardant multicore cable designed for industrial, automation, and communication applications. Featuring 20 pairs (20 cores) of stranded bare copper conductors with a cross-sectional area of 0.25 mm², this cable ensures reliable signal transmission and minimal electrical interference through its tinned wire shield braid.

The cable is insulated with a PVC base and layered DIN colour-coded cores, all protected by a transparent grey PVC sheath that fulfills flame-retardant standards IEC 60332-1-2 and complies with VDE 0472 part 804, test type B. Its compact outer diameter of 9.3 mm makes it suitable for fixed installations where space efficiency is essential.

Rated for operation at 250 V, the UNITRONIC LiYCY cable withstands minimum temperatures down to -40°C and maximum temperatures up to 80°C in fixed installations, with a slightly narrower range during occasional flexing. Its robust design and compliance with CE and RoHS certifications ensure safety and environmental friendliness.

Ideal for various applications including RS 232 communication interfaces, process control systems, signal transmission, and broadcast environments, this screened cable is optimized for low frequency and electronic control device connectivity. Accessories such as Skintop EMC cable glands (M16 to M50) are recommended to maintain low resistance and shield integrity.

Flame-retardant in accordance with IEC 60332-1-2 and VDE 0472. Core insulation with PVC base and DIN colour-coded layered cores. Shield braid made from tinned wires to reduce interference. Transparent grey PVC sheath provides additional protection.

Operating temperature range: -40°C to +80°C (fixed installation). Voltage rating: 250 V. Stranded conductor type with 14 strands per core at 0.14 mm diameter. Compact 9.3 mm outside diameter for space-saving installations.

Complies with CE and RoHS standards. Manufactured in Germany by Lapp.

This UNITRONIC LiYCY data cable supports industrial, laboratory, electronic control, and communication manufacturing applications requiring screened cable protection and flame safety. It is a reliable choice for fixed wiring in demanding environments, maintaining signal integrity and resistance to electrical noise.

Discover more premium cables and accessories in our Electronics & Electricals Wires & Cables Data Cable category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this data cable is 80°C when used in fixed installations.

This cable is rated for operation at 250 V.

The cable features 20 cores, arranged in 20 pairs.

The conductors have a cross-sectional area of 0.25 mm².

The outside diameter of the cable measures 9.3 mm.

The cable is insulated with a PVC base and has a grey polyvinyl chloride sheath.

Yes, this cable is suitable for use in dry or damp environments for fixed installations.

The cable complies with CE and RoHS standards, as well as flame-retardant standards IEC 60332-1-2 and VDE 0472 part 804.

The minimum operating temperature for this cable is -40°C in fixed installations.

Each core of the conductors consists of 14 strands, with each strand measuring 0.14 mm in diameter.

This cable is designed for industrial, automation, and communication applications, including RS 232 communication interfaces and process control systems.

It is recommended to use Skintop EMC cable glands (M16 to M50) to maintain low resistance and shield integrity.
