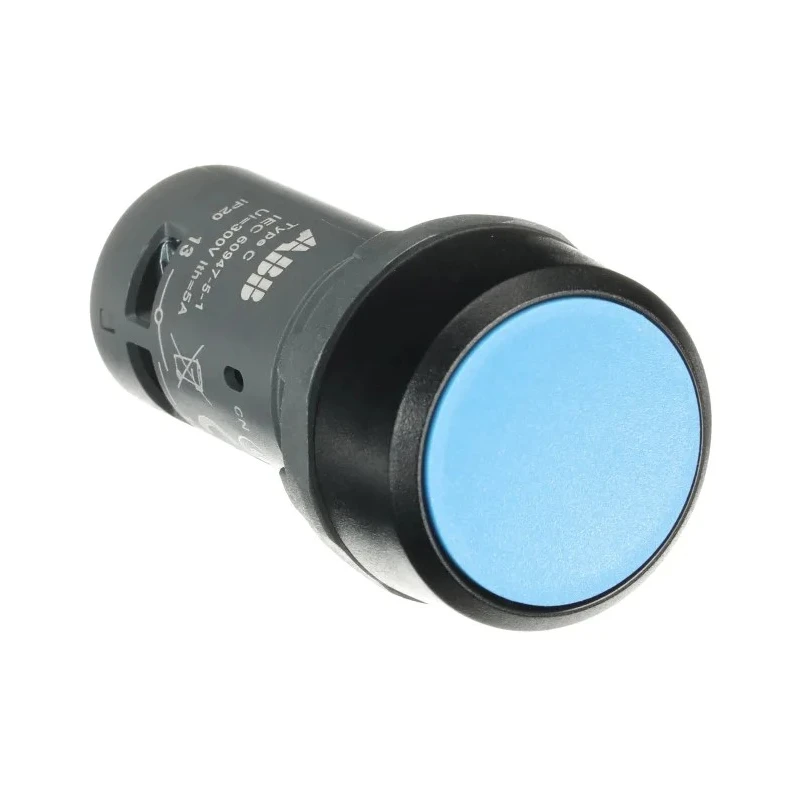

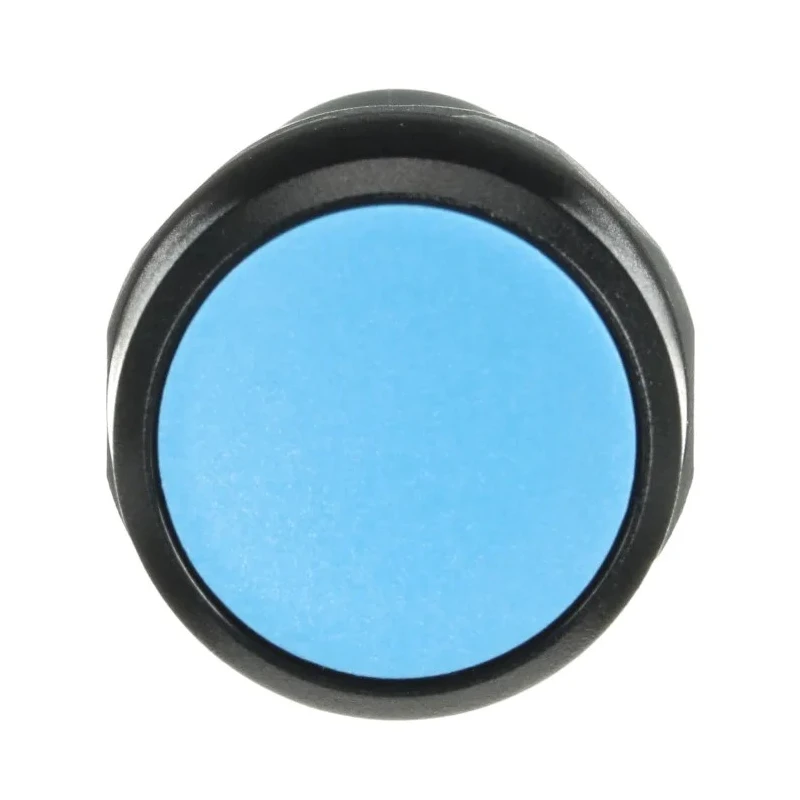

ABB CP1 Series Push Button Switch 1 NO/1 NC Blue Actuator Screw Terminal IP20 IP66 IP67 IP69K 125 1SFA619100R1074 CP1-10L-11



Category Push Button Switch Brand ABB Condition New

Specifications

Country of Origin	China
Brand	ABB
Height	30mm
Length	55mm
Model	1SFA619100R1074 CP1-10L-11
IP Rating	IP20, IP66, IP67, IP69K
Width	30mm
Series	CP1
Maximum Operating Temperature	70°C
Contact Configuration	1 NO/1 NC
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	IEC 947-5-5EN 60204
Actuator Colour	Blue
Contact DC Voltage	125V
Actuator Style	Round
Switch Contact Current	2A
Contact AC Voltage	300V

Key Features

Compact industrial control switch suitable for control panels and machinery interfaces.
Rated for 125 V DC and 300 V AC with 2A contact current for moderate control loads.
Screw terminal connection ensures secure wiring installation.
High ingress protection with IP20, IP66, IP67, and IP69K ratings for harsh environments.
Operates reliably between -25°C and 70°C suitable for various industrial ambient conditions.
Manufactured to IEC 947-5-5 and EN 60204 standards for performance and safety.

Product Description

ABB 1SFA619100R1074 CP1-10L-11 CP1 Series Push Button Switch features a blue round actuator and a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact. Designed primarily for industrial control panels and machinery interfaces, this compact switch offers reliable manual operation for signaling and control circuits. Its robust build and color-coded actuator enhance usability and identification in complex panels.

Supporting both AC and DC voltages, the switch is rated up to 300 V AC and 125 V DC, with a contact current capacity of 2 amps. It uses screw terminals for easy and secure electrical connection, suitable for both stranded and solid conductors. Protection ratings of IP20, IP66, IP67, and IP69K ensure resistance against dust, water jets, and harsh environmental conditions, making it ideal for demanding industrial applications.

The switch functions effectively across a wide temperature range from -25°C to 70°C, accommodating typical industrial ambient conditions. Its compliance with IEC 947-5-5 and EN 60204 safety and performance standards attests to its quality and reliability.

Compact design for efficient panel integration. Blue round actuator ensures clear visual identification. 1 NO and 1 NC contact configuration for versatile control logic. Screw terminal type simplifies wiring installation and maintenance.

High ingress protection ratings suitable for harsh and wet environments. Wide operating temperature range from -25°C to 70°C. Conforms to IEC and EN safety standards.

This push button switch is widely used in factory automation systems for start/stop and signaling functions, electrical cabinets requiring sealed ingress protection, machine operator stations, testing rigs with mixed AC/DC controls, and retrofit industrial control panels. Its durability and adaptability suit it well for industrial, manufacturing, electrical, and automation sectors.
