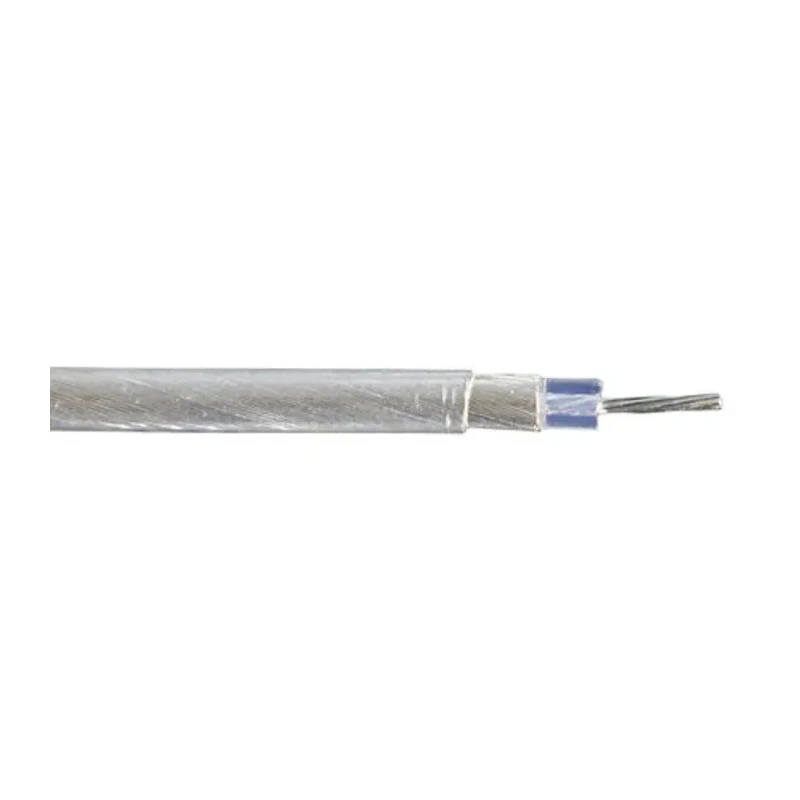

Alpha Wire Alpha Essentials Micro Coaxial Cable 100 m, 50 Ω, 32AWG, Silver Coated Copper Conductor, White Jacket 9442 WH033
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Model | 9442 WH033 |
| Cable Length | 100m |
| Series | Alpha Essentials Coaxial Cable |
| Outside diameter | 0.3mm |
| Maximum Operating Temperature | 150°C |
| Conductor Material | Silver Coated Copper |
| Minimum Operating Temperature | -70°C |
| Jacket Material | Perfluoroalkoxy Alkane |
| Attenuation | 0.7 dB |
| Standards/Approvals | CE EU Directive 2011/65/EU, CSA, REACH Regulation EC 1907/2006, UL |
| Characteristic Impedance | 50Ω |
| Jacket Colour | White |
| American Wire Gauge | 32AWG |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.025mm |
| Size of Strands | 0.025mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | Micro Coax |
Key Features
- The cable length is 100 meters, suitable for extensive routing needs.
- The conductor consists of 7 strands of 0.025 mm silver-coated copper wires for high conductivity.
- 32 American Wire Gauge (AWG) diameter with a 0.3 mm outside diameter for compact installations.
- Unterminated design allows for customized end connections and flexibility.
- Operates reliably between temperatures of -70°C to 150°C.
- Jacket is white, made of durable perfluoroalkoxy alkane material ensuring chemical and temperature resistance.
- Characteristic impedance of 50 Ω ensures stable signal transmission with low attenuation of 0.7 dB.
- Meets multiple standards including CE EU Directive 2011/65/EU, CSA, REACH Regulation EC 1907/2006, and UL compliance.
Product Description
Alpha Wire 9442 WH033 Alpha Essentials Micro Coaxial Cable is a high-performance electrical cable designed specifically for applications requiring space-saving routing and superior signal integrity. The cable is 100 meters long and features a stranded silver coated copper conductor arranged in 7 strands, each 0.025 mm in diameter, forming a 32AWG micro coax configuration with an overall outside diameter of 0.3 mm.
This cable supports a characteristic impedance of 50 Ω, which offers consistent impedance for low signal loss and high integrity. The jacket, made from perfluoroalkoxy alkane (PFA), provides excellent resistance to chemicals, high temperature durability up to 150°C, and stability for long-term performance. It is white-colored to aid in identification and installation within complex cable networks.
With its unterminated configuration, this cable is ideal for customized termination according to specific project needs. The cable is UL AWM 1745 rated and complies with international standards such as CE EU Directive 2011/65/EU, CSA, and REACH, ensuring environmentally friendly and regulatory compliant manufacturing.
Typical use cases include medical probes, industrial inspection systems, endoscopy, and oximetry systems where high precision and limited space are considerations. The cable's minimal attenuation of 0.7 dB promotes clear signal transmission in critical environments.
The cable length is 100 meters, enabling extensive installation runs. Silver coated copper conductor provides enhanced conductivity and corrosion resistance. Operable at extreme temperatures from -70°C to 150°C for versatile environmental conditions.
The perfluoroalkoxy alkane jacket gives chemical resistance and mechanical protection. Meets RoHS, CSA, UL, and REACH standards providing certified quality assurance. Ideal for high precision applications demanding micro coax construction and low signal loss.
Explore the Alpha Wire range at EnvMart to find precise electrical cables and connectors engineered for demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 100 meters, suitable for extensive routing needs.
It has a characteristic impedance of 50 Ω, ensuring stable signal transmission with low attenuation.
The conductor consists of silver-coated copper, while the jacket is made from perfluoroalkoxy alkane (PFA).
This model can operate reliably at temperatures up to 150°C.
The cable has a minimal attenuation of 0.7 dB, promoting clear signal transmission.
The conductor is made up of 7 strands, each measuring 0.025 mm in diameter.
The overall outside diameter of this micro coaxial cable is 0.3 mm.
It operates reliably between -70°C and 150°C, making it suitable for various environmental conditions.
It meets multiple standards including CE EU Directive 2011/65/EU, CSA, REACH Regulation EC 1907/2006, and UL compliance.
This model is unterminated, allowing for customized end connections based on specific project needs.
Typical use cases include medical probes, industrial inspection systems, endoscopy, and oximetry systems.
The cable has a 32 American Wire Gauge (AWG) rating, indicating its compact size.
