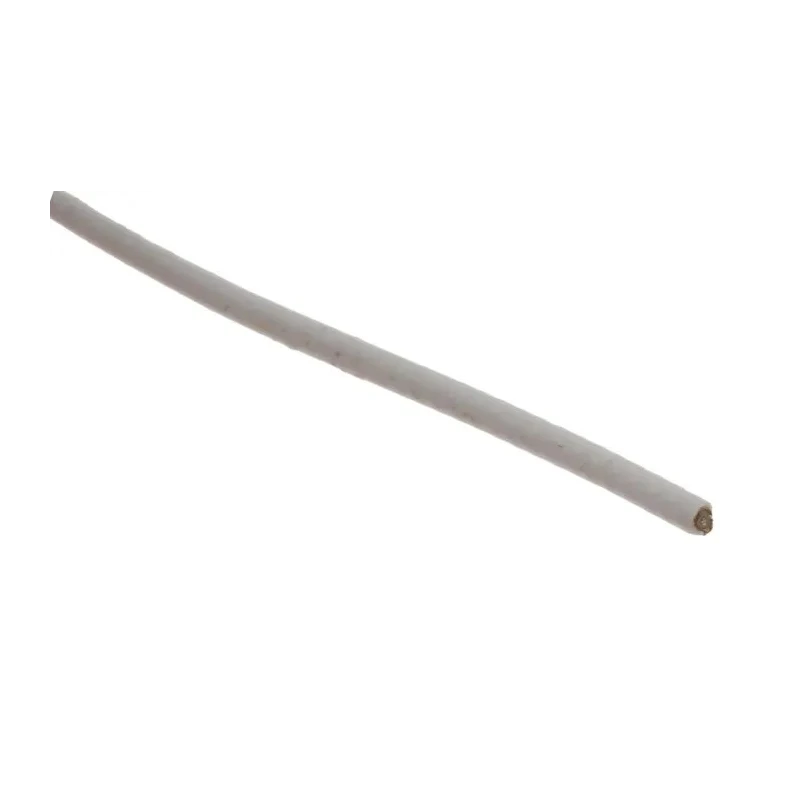

Alpha Wire Alpha Essentials Micro Coaxial Cable 50 Ω, 1.12mm OD, 100 m Length, Silver Plated Copper, 30V, 9432 WH033
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Alpha Wire |
| Model | 9432 WH033 |
| Cable Length | 100m |
| Series | Alpha Essentials Coaxial Cable |
| Outside diameter | 1.12mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Silver Plated Copper |
| Minimum Operating Temperature | -70°C |
| Jacket Material | Perfluoroalkoxy Alkane |
| Attenuation | 0.13 dB |
| Characteristic Impedance | 50Ω |
| Jacket Colour | White |
| American Wire Gauge | 32AWG |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.07mm |
| Size of Strands | 0.07mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | Micro Coax |
Key Features
- Constructed with silver-plated copper conductors for enhanced conductivity and durability.
- Features stranded conductor design with 7 strands of 0.07 mm diameter for flexibility.
- Operates reliably within a temperature range of -70°C to 200°C.
- Low attenuation of 0.13 dB per meter at 10 MHz ensures minimal signal loss.
- Insulated with perfluoroalkoxy alkane (PFA) jacket material providing excellent dielectric and environmental resistance.
- Unterminated cable suitable for custom connector applications.
- Complies with CE, CSA, EU Directive 2011/65/EU, REACH Regulation EC 1907/2006, and UL AWM 1745 standards.
- Ideal for medical imaging, industrial inspection, oximetry, and electronics requiring consistent signal integrity.
Product Description
Alpha Wire 9432 WH033 is a premium Alpha Essentials series micro coaxial cable designed for demanding electrical and electronic applications. This cable has a 50 Ω characteristic impedance with a compact 1.12mm outside diameter and is supplied in a 100 meter length without termination, allowing for flexible custom configurations.
The cable features silver-plated copper stranded conductors composed of 7 core strands each 0.07mm in diameter, which enhances electrical conductivity while providing mechanical flexibility for easy routing especially in tight spaces.
Its perfluoroalkoxy alkane (PFA) jacket offers outstanding dielectric properties, chemical resistance, and performs reliably under extreme operating temperatures from -70°C up to +200°C, making it suitable for high-temperature industrial and medical environments.
With low signal attenuation of only 0.13 dB per meter at 10 MHz, it maintains excellent signal integrity critical for medical imaging systems, endoscopy, industrial inspection, oximetry, and other sensitive electronics requiring high-frequency performance.
Compliance with international standards such as CE, CSA, EU Directive 2011/65/EU (RoHS), REACH, and UL AWM 1745 assures quality and safety for various industrial, laboratory, medical, and commercial uses.
Silver-plated copper conductors improve conductivity and corrosion resistance. Flexible stranded conductor design with 7 strands of 0.07mm diameter. PFA insulation provides stability and chemical resistance. Wide operating temperature range from -70°C to 200°C.
Low attenuation minimizes signal loss at high frequencies. Unterminated for custom connector terminations. Meets multiple international standards for quality and safety. Ideal for medical, industrial, and electronics applications.
This Alpha Wire cable is a reliable choice for industrial automation, medical diagnostic equipment, aerospace, telecommunications, and laboratory instrumentation. It offers a balanced combination of strong mechanical properties and superior electrical performance in a compact form factor.
Explore our full range of Coaxial Cables and accessories for comprehensive wiring solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The characteristic impedance of this micro coaxial cable is 50 Ω.
This model can operate reliably at temperatures up to 200°C.
The attenuation rate is 0.13 dB per meter at 10 MHz, ensuring minimal signal loss.
It features silver-plated copper conductors and a perfluoroalkoxy alkane (PFA) jacket for insulation.
The cable is supplied in a length of 100 meters.
The conductor is made up of 7 strands, each with a diameter of 0.07 mm.
This cable is unterminated, allowing for custom connector applications.
The outside diameter of this micro coaxial cable is 1.12 mm.
It complies with CE, CSA, EU Directive 2011/65/EU (RoHS), REACH Regulation EC 1907/2006, and UL AWM 1745 standards.
This cable is ideal for medical imaging, industrial inspection, oximetry, and other electronics requiring consistent signal integrity.
The minimum operating temperature for this model is -70°C.
The cable is insulated with a perfluoroalkoxy alkane (PFA) jacket, providing excellent dielectric and environmental resistance.
