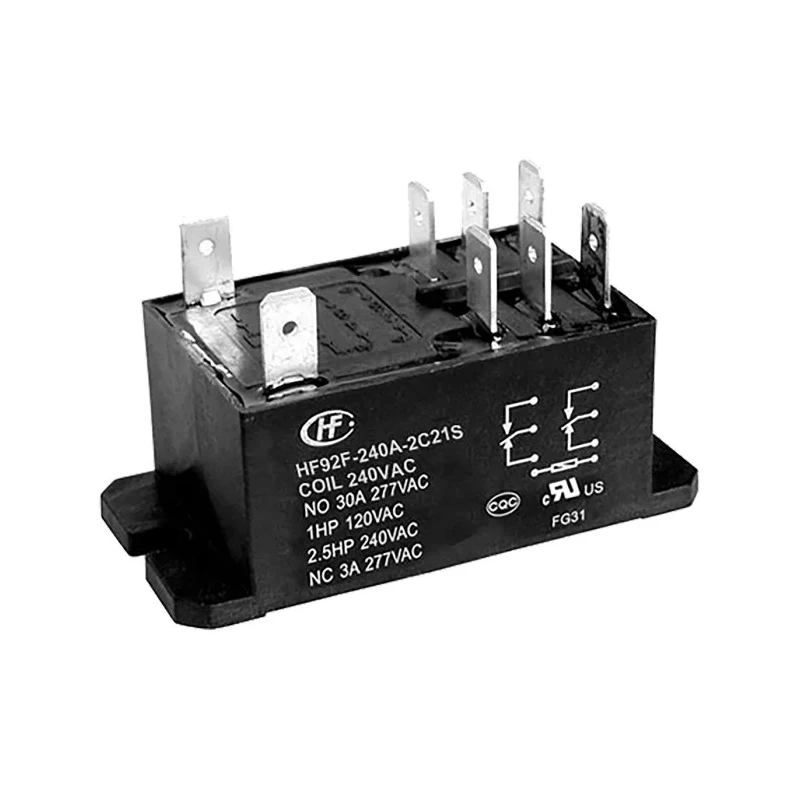

Hongfa Europe GMBH Power Relay Flange Mount DPDT 240V AC Coil 30A Switching Current HF92F-240A-2C21S
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.4mm |
| Length | 68.6mm |
| Model | HF92F-240A-2C21S |
| Width | 33.7mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF92F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 3.8kΩ |
| Coil Voltage | 240V ac |
| Switching AC Voltage | 277V ac |
| Coil Power | 4W |
Key Features
- Supports a switching current of 30 A for high power applications.
- Features quick connect terminals for effortless installation.
- Designed with a silver alloy contact material ensuring durability.
- Operates reliably within -40°C to 65°C temperature range.
- Compact dimensions and flange mount enhance mounting flexibility and space efficiency.
- Coil power consumption is low at 4 watts, improving energy efficiency.
- Offers a switching AC voltage rating of up to 277V AC for versatile use.
- Sealed plastic flange housing provides electrical insulation and protection.
Product Description
Hongfa Europe GMBH HF92F-240A-2C21S is a flange mount power relay with a 240V AC coil designed for high power switching applications in industrial and electrical systems.
This power relay supports a double pole double throw (DPDT) contact configuration providing reliable switching capabilities with a maximum current rating of 30A and switching AC voltage up to 277V. The relay comes equipped with 6.4 x 0.8 mm quick connect terminals housed in a sealed plastic flange mount for robust mechanical stability and ease of installation.
The relay's silver alloy contacts and silver tin oxide terminals ensure durability and low contact resistance of 50 milliohms, thereby minimizing power loss and heating during switching operations. Its coil resistance stands at 3.8 kilo-ohms with a coil power consumption of only 4 watts, optimizing energy usage in control circuits.
Engineered to operate within an ambient temperature range of -40°C to 65°C, this relay is suitable for a wide range of environments. Its compact physical dimensions of length 68.6 mm, width 33.7 mm, and height 26.4 mm allow installation in space-limited control panels.
Certified to meet international quality and safety standards including CQC and cULus, the HF92F ensures compliance and reliability in demanding industrial, automation, and electrical applications. This relay is widely used in industrial automation systems, motor controls, HVAC systems, and electrical panel assemblies requiring dependable power switching functionality.
Supports a switching current of 30 A for high power applications. Features quick connect terminals for effortless installation. Designed with a silver alloy contact material ensuring durability. Operates reliably within -40°C to 65°C temperature range.
Compact dimensions and flange mount enhance mounting flexibility and space efficiency. Coil power consumption is low at 4 watts, improving energy efficiency. Offers a switching AC voltage rating of up to 277V AC for versatile use.
Sealed plastic flange housing provides electrical insulation and protection. Meets industry standards including CQC and cULus approvals for safety compliance. Silver tin oxide terminals deliver excellent electrical conductivity and longevity.
Explore a reliable range of Power Relays including those from Hongfa Europe GMBH on EnvMart for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 30 A, making it suitable for high power applications.
The coil voltage rating for this relay is 240V AC.
It offers a maximum switching AC voltage rating of up to 277V AC.
The relay has compact dimensions of 68.6 mm in length, 33.7 mm in width, and 26.4 mm in height.
This model features a double pole double throw (DPDT) contact configuration.
The coil power consumption is low at 4 watts, which enhances energy efficiency.
It operates reliably within a temperature range of -40°C to 65°C.
The relay is designed with silver alloy contacts to ensure durability and low contact resistance.
This model features a flange mount design, which enhances mounting flexibility and space efficiency.
It comes equipped with quick connect terminals for effortless installation.
This relay is certified to meet international standards including CQC and cULus for safety compliance.
It is widely used in industrial automation systems, motor controls, HVAC systems, and electrical panel assemblies.
