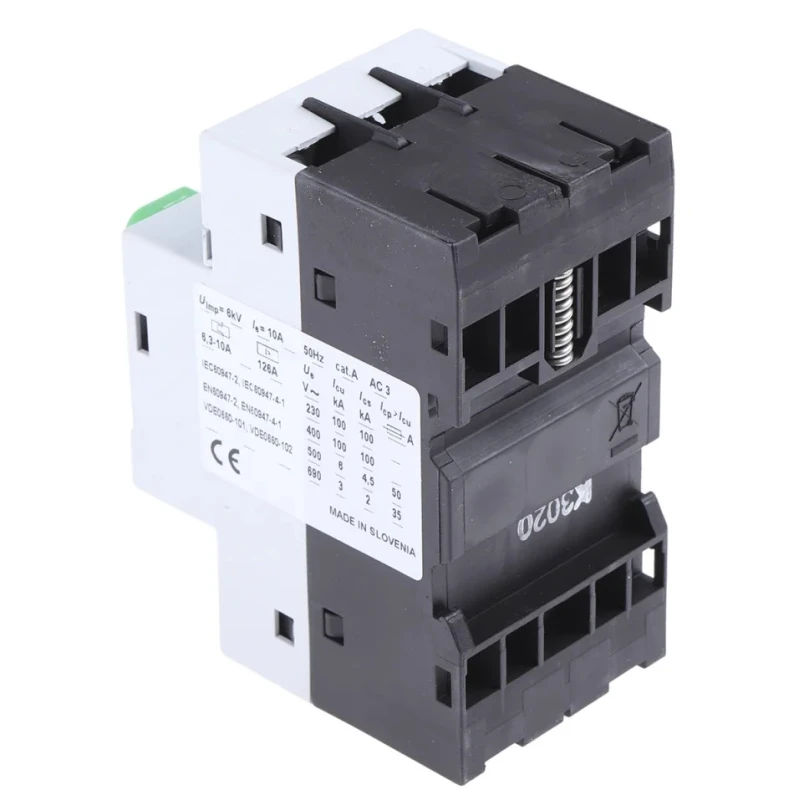

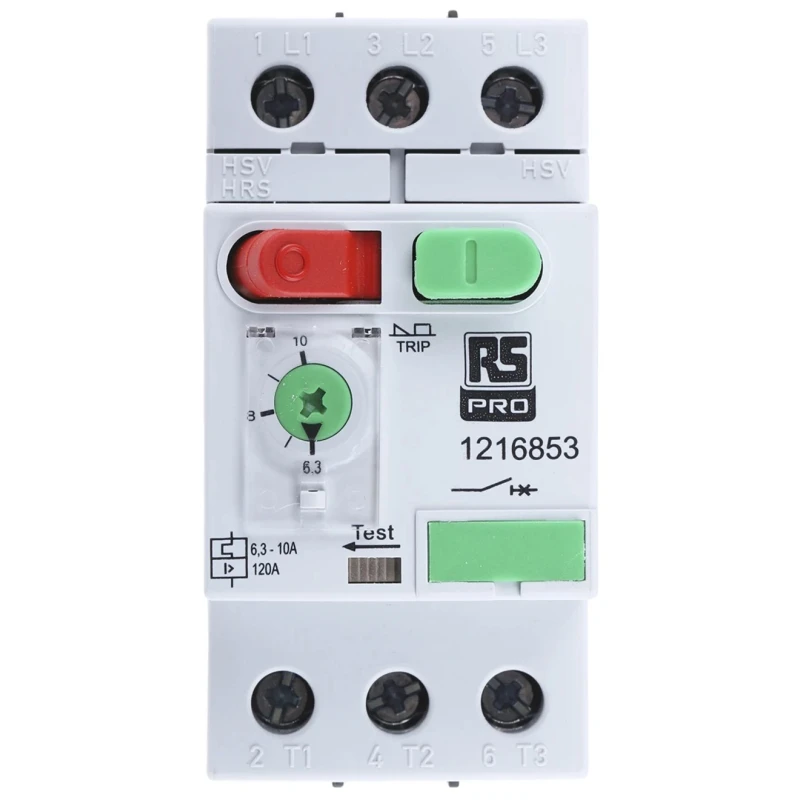

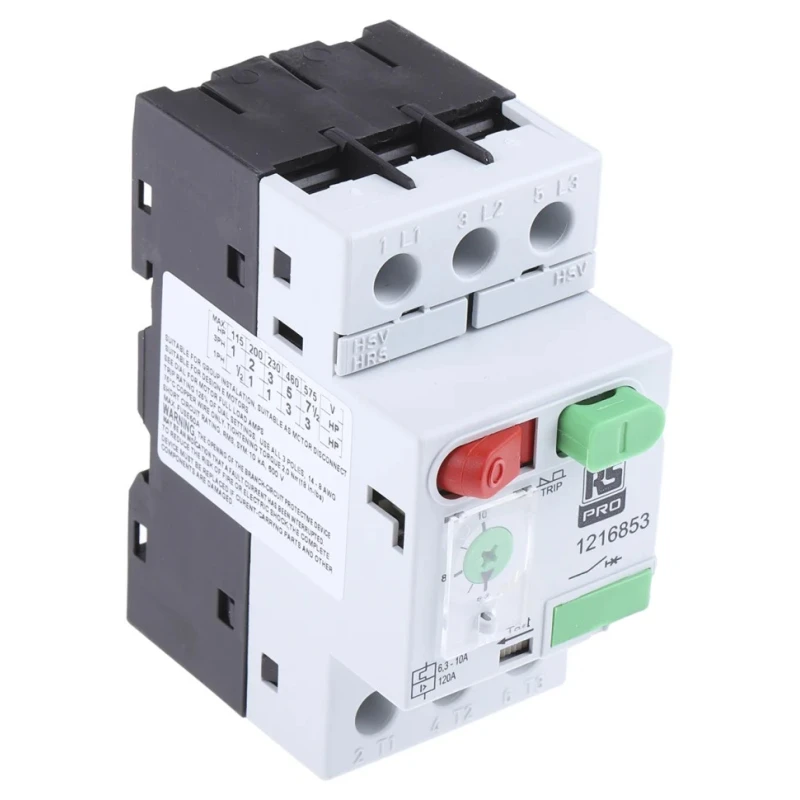

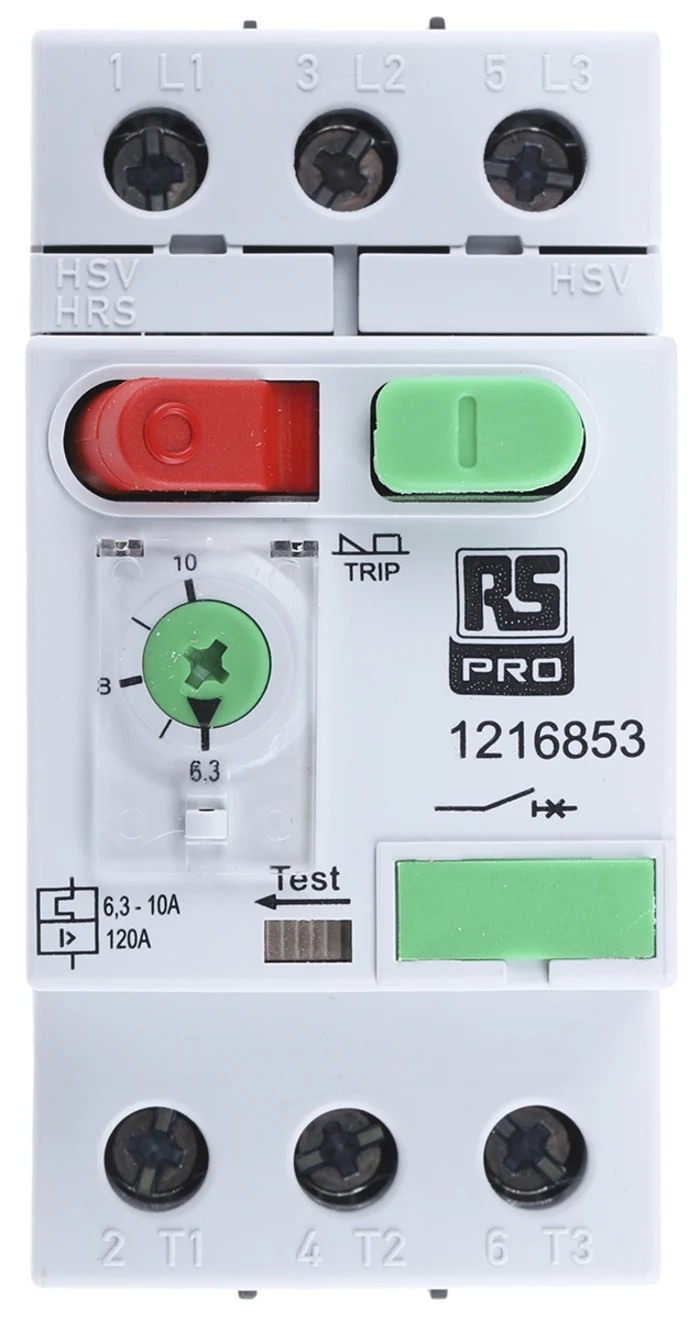

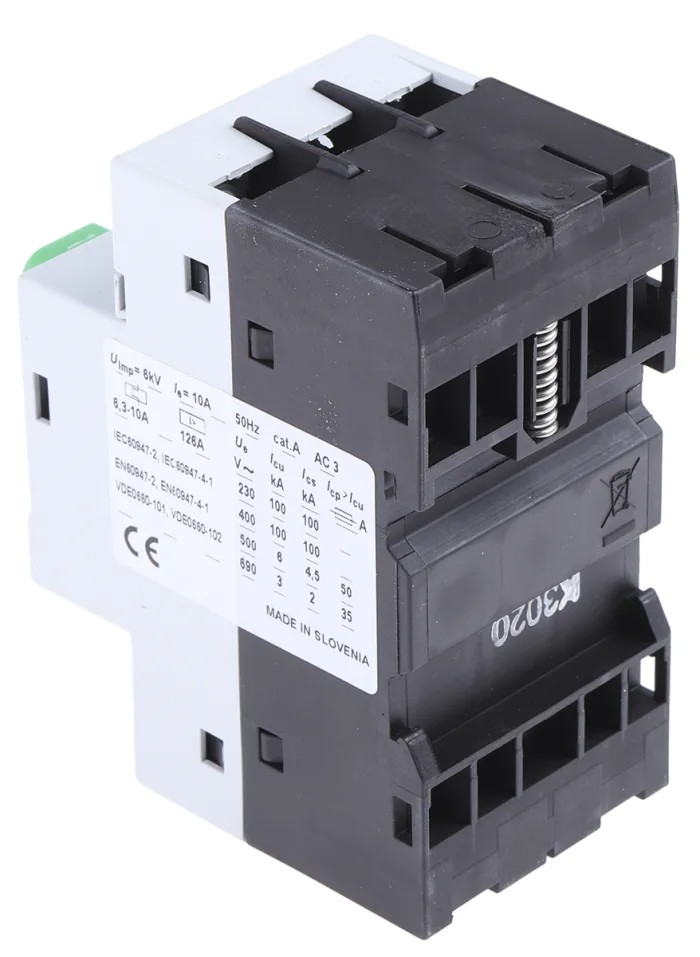

RS PRO Motor Protection Circuit Breaker 10A, 6.3A Current Rating, 690V Supply Voltage, 3 Poles, IP20/IP40, -25°C to 121-6853
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | RS PRO |
| Model | 121-6853 |
| IP Rating | IP20, IP40 |
| Overall Length | 45mm |
| Current Rating | 10, 6.3A |
| Series | RS PRO |
| Overall Width | 89.5mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | UL 508, IEC/EN 60947-2, RoHS, CSA |
| Overall Depth | 78.5mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Features a breaking capacity of 100 kA at 230 V for enhanced safety.
- Designed with three poles for comprehensive motor circuit protection.
- Equipped with both magnetic and thermal release for fast response to overcurrent.
- Automatic reset mechanism removes the need for manual intervention after tripping.
- Suitable for mounting on 35 mm DIN rails in vertical or horizontal orientations.
- Compact dimensions of 45mm length, 89.5mm width, and 78.5mm depth.
- Operates reliably within -25°C to 60°C temperature range.
- IP20 and IP40 ratings provide protection against solid objects and limited ingress of water.
Product Description
RS PRO 121-6853 Motor Protection Circuit Breaker is a robust safety device designed to protect electric motors in industrial, commercial, and agricultural settings by interrupting excessive current flow. It features dual protection through magnetic and thermal releases that rapidly respond to short circuits and overloads, minimizing equipment damage risks.
The breaker supports a current range of 6.3 to 10 amps and operates at a supply voltage of 690 volts, making it suitable for high-power motor applications. Its compact form factor with dimensions 45mm x 89.5mm x 78.5mm allows easy installation in control panels with limited space.
This three-pole circuit breaker can be mounted both vertically and horizontally on a standard 35 mm DIN rail using screws, facilitating flexible integration within existing electrical setups. The device also features an automatic reset function that enables automatic restoration of the circuit post fault resolution.
Designed for durability and safety, it has an IP20 and IP40 ingress protection rating, assuring resistance against solid objects and limited water ingress, supporting reliable performance in varied industrial environments. Operating temperature range from -25°C to 60°C further enhances its applicability under diverse environmental conditions.
Breaking capacity of 100 kA at 230 V ensures high fault interrupting capability. Dual thermal and magnetic release system protects against overload and short-circuit conditions. Installation on 35mm DIN rail with vertical/horizontal mounting options.
Automatic reset function eliminates manual resets after tripping. Compact 3-pole design fits standard industrial applications. Compliance with UL 508, IEC/EN 60947-2, RoHS, and CSA standards assures quality and safety. Manufactured in Slovenia under rigorous quality controls.
This motor protection circuit breaker is essential for safeguarding motors across industrial automation, manufacturing plants, HVAC systems, agricultural machinery, and commercial equipment. Its reliable protection mechanisms reduce downtime and extend motor life, delivering operational efficiency and safety.
Explore more products in Motor Protection Circuit Breakers category at EnvMart for comprehensive solutions suited to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A and 6.3A, making it suitable for a range of applications.
It operates at a supply voltage of 690V, which is suitable for high-power motor applications.
The breaker has compact dimensions of 45mm in length, 89.5mm in width, and 78.5mm in depth.
It features a breaking capacity of 100 kA at 230 V, ensuring effective interruption of excessive current flow.
The automatic reset mechanism restores the circuit after a fault is resolved, eliminating the need for manual intervention after tripping.
It operates reliably within a temperature range of -25°C to 60°C, suitable for various environments.
This unit has IP20 and IP40 ratings, providing protection against solid objects and limited ingress of water.
It is designed for mounting on 35 mm DIN rails and can be installed in both vertical and horizontal orientations.
It complies with UL 508, IEC/EN 60947-2, RoHS, and CSA standards, ensuring quality and safety.
It features dual protection through magnetic and thermal releases to respond quickly to overloads and short circuits.
This motor protection circuit breaker is manufactured in Slovenia under rigorous quality controls.
It is essential for safeguarding motors in industrial automation, manufacturing plants, HVAC systems, agricultural machinery, and commercial equipment.
