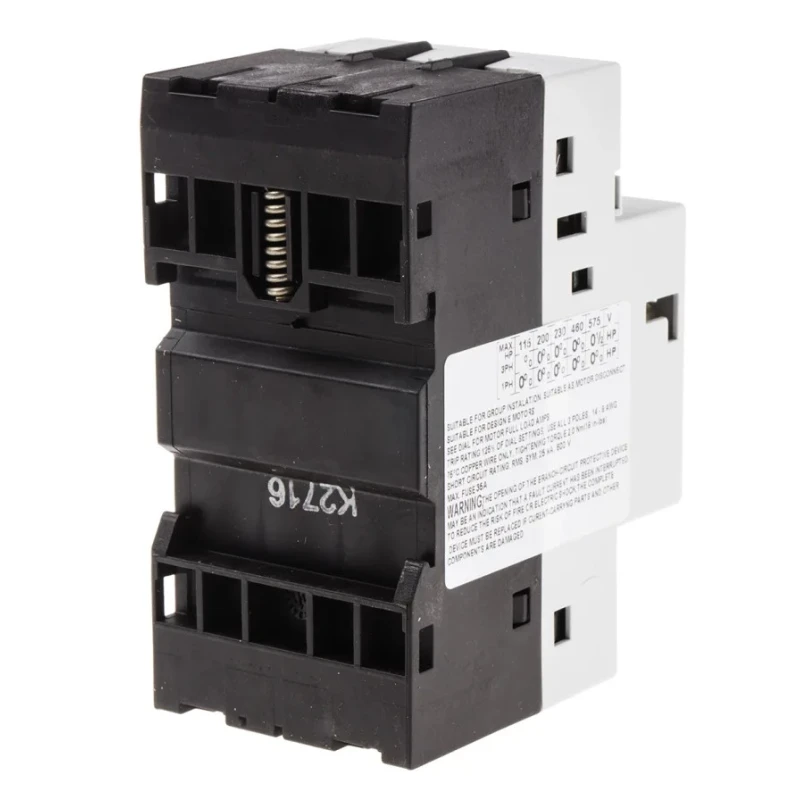

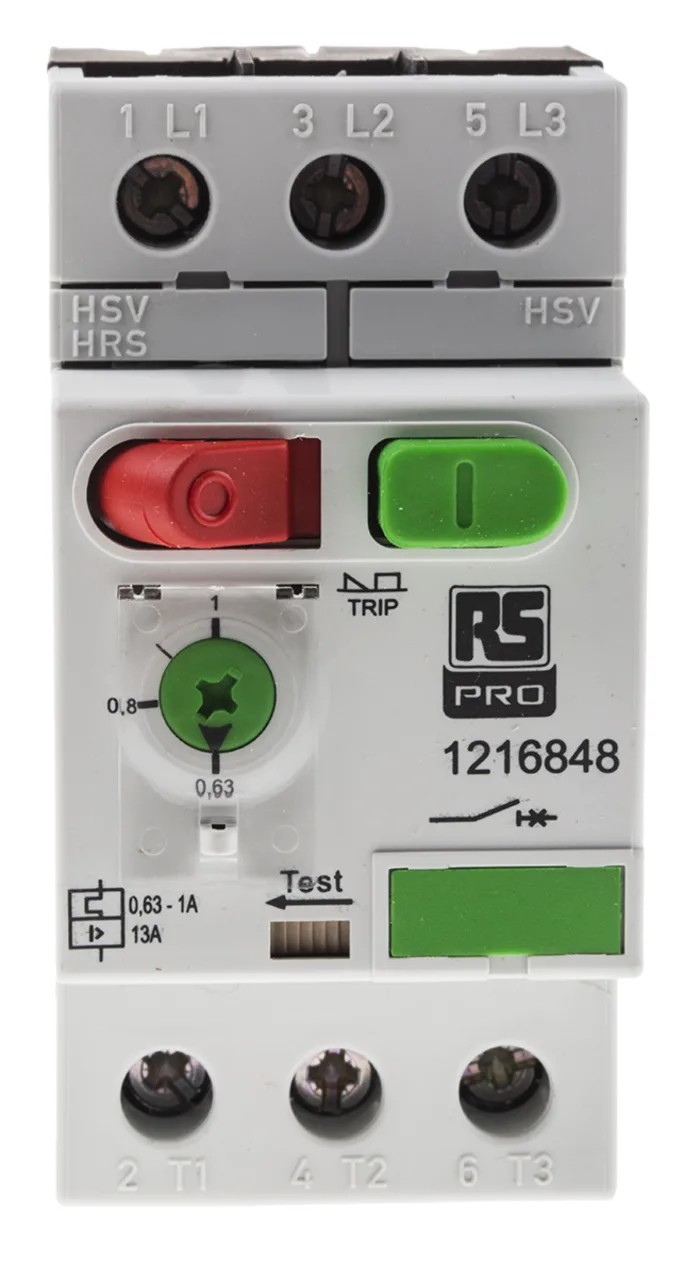

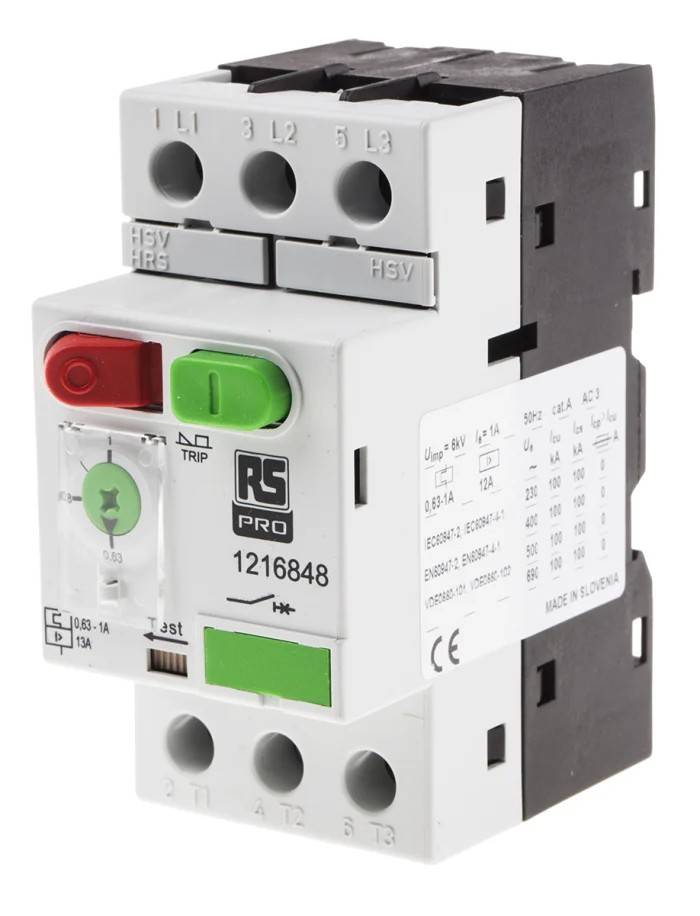

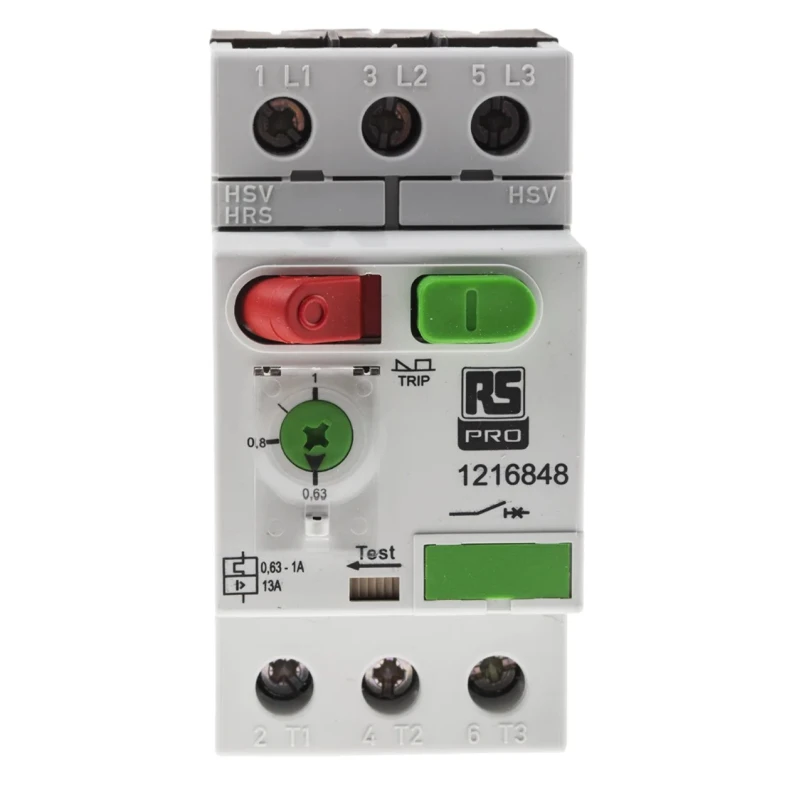

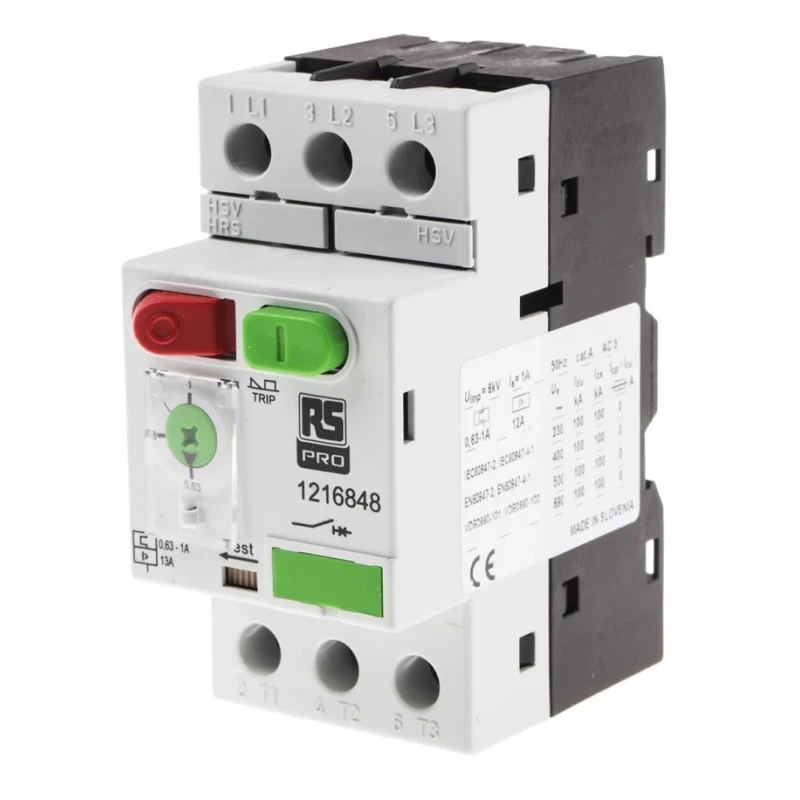

RS PRO Motor Protection Circuit Breaker 630 mA, 1A, 690V, 3 Poles, IP40, IP20, -25°C to 60°C, MS32 Series 121-6848
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | RS PRO |
| Model | 121-6848 |
| IP Rating | IP40, IP20 |
| Overall Length | 45mm |
| Current Rating | 630, 1mA |
| Series | RS PRO |
| Overall Width | 89.5mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | UL 508, RoHS, IEC/EN 60947-2, CSA |
| Overall Depth | 78.5mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Legrand 1A MPX Motor Protection Circuit Breaker, 220V, 690 VBrand | Legrand |
Key Features
- Features 3 poles for comprehensive motor phase protection.
- Supports a wide operating temperature range from -25 °C to 60 °C.
- Compatible with 35 mm DIN rail vertical or horizontal mounting.
- Incorporates thermal and magnetic trip releases to ensure safety.
- IP40 and IP20 rated for protection against solid objects and limited ingress of dust.
- Complies with UL 508, IEC/EN 60947-2, CSA standards and RoHS compliant.
- Manufactured in Slovenia ensuring quality and reliability.
Product Description
RS PRO 121-6848 is a high-quality Motor Protection Circuit Breaker designed for the protection of electric motors in industrial and commercial applications. With a current rating of 630 mA and 1A, and a supply voltage of 690V, this circuit breaker ensures reliable overcurrent protection against overload and short circuits.
The breaker features 3 poles and supports mounting on standard 35 mm DIN rails, both vertically and horizontally, allowing easy integration into existing control panels. It includes thermal and magnetic release mechanisms that automatically disconnect the motor in fault conditions, extending motor lifetime and enhancing safety.
Operating reliably within a wide temperature range from minus 25 °C up to 60 °C, it is suitable for diverse environmental conditions. The IP40 and IP20 enclosure ratings protect against ingress of solid objects and dust, making it fit for use in challenging industrial environments.
This product complies with essential international standards including UL 508, IEC/EN 60947-2, CSA, and is RoHS certified, ensuring adherence to global safety and environmental requirements. Its compact size (45 mm length, 89.5 mm width, 78.5 mm depth) makes it ideal for installations with space constraints.
Features 3 poles for comprehensive phase protection. Thermal and magnetic trip releases protect against overload and short circuits. IP40, IP20 rated for robust environmental protection. Wide operating temperature range from -25 to 60 °C.
Compliance with UL, IEC, CSA standards and RoHS. Compact enclosure with DIN rail mounting capability. Manufactured in Slovenia ensuring high-quality standards.
This motor protection circuit breaker is used in industrial automation, manufacturing, electrical control systems, and HVAC motor protection. It ensures safe and reliable operation of motors by preventing damage due to electrical faults.
Explore our extensive category of Motor Protection Circuit Breakers and electrical control gear at EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor protection circuit breaker has a current rating of 630 mA and 1A.
It supports a maximum supply voltage of 690V.
This model features 3 poles for comprehensive motor phase protection.
It has IP40 and IP20 ratings, providing protection against solid objects and limited dust ingress.
The operating temperature range is from -25 °C to 60 °C.
It complies with UL 508, IEC/EN 60947-2, CSA standards, and is RoHS certified.
It is compatible with 35 mm DIN rail mounting, both vertically and horizontally.
It incorporates thermal and magnetic trip releases to ensure safety against overload and short circuits.
The dimensions are 45 mm in length, 89.5 mm in width, and 78.5 mm in depth.
This motor protection circuit breaker is manufactured in Slovenia.
It is used in industrial automation, manufacturing, electrical control systems, and HVAC motor protection.
It provides protection against electrical faults, extending motor lifetime and enhancing safety.
