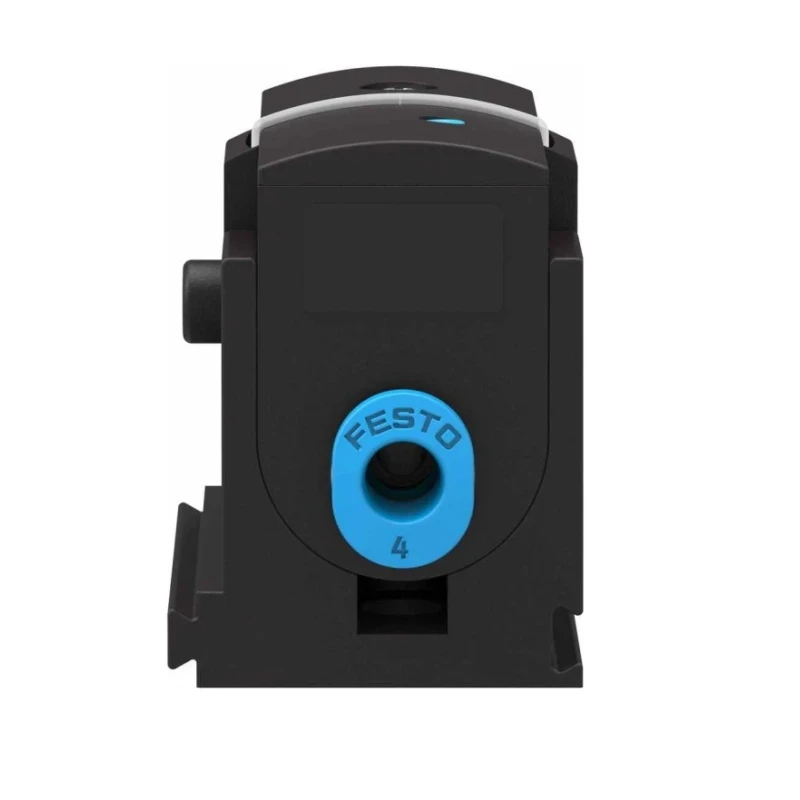

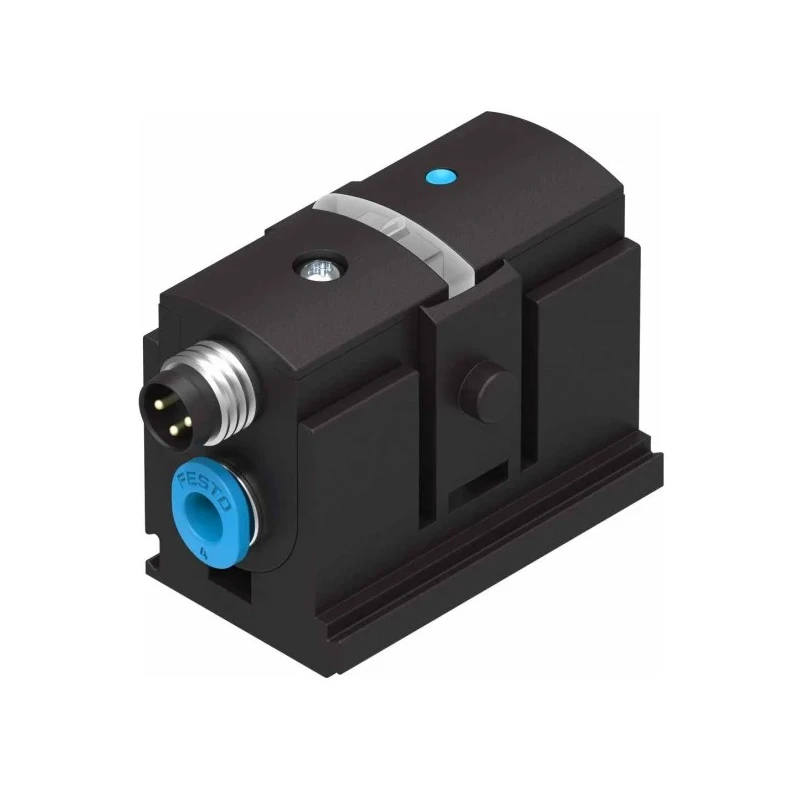

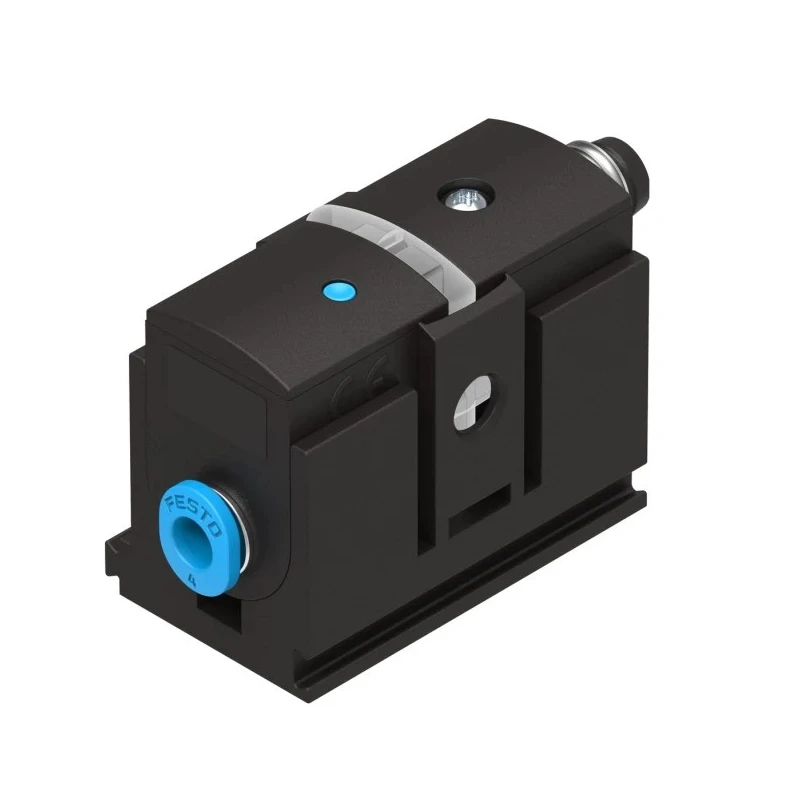

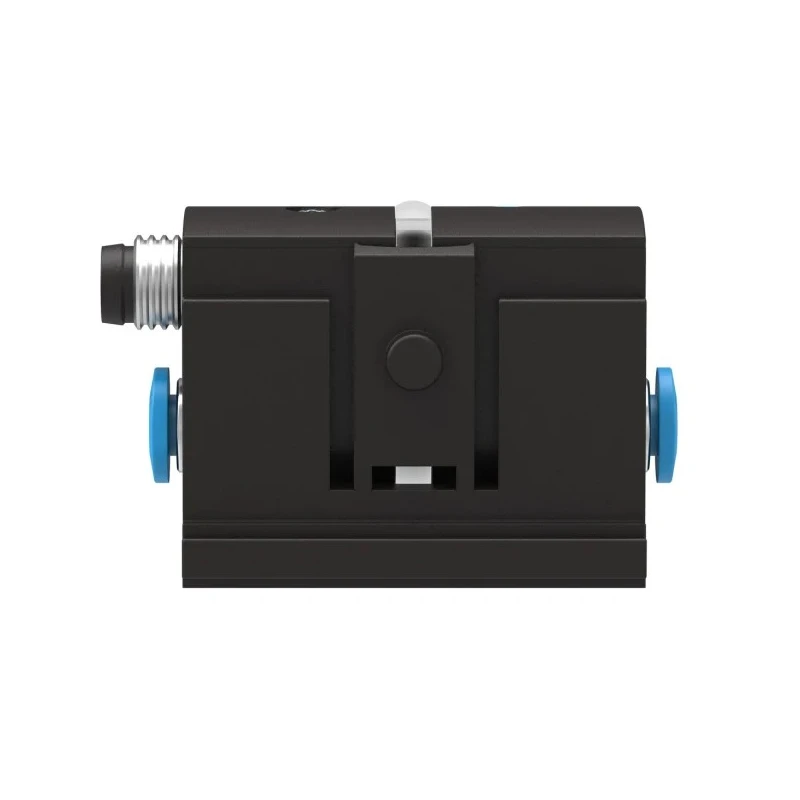

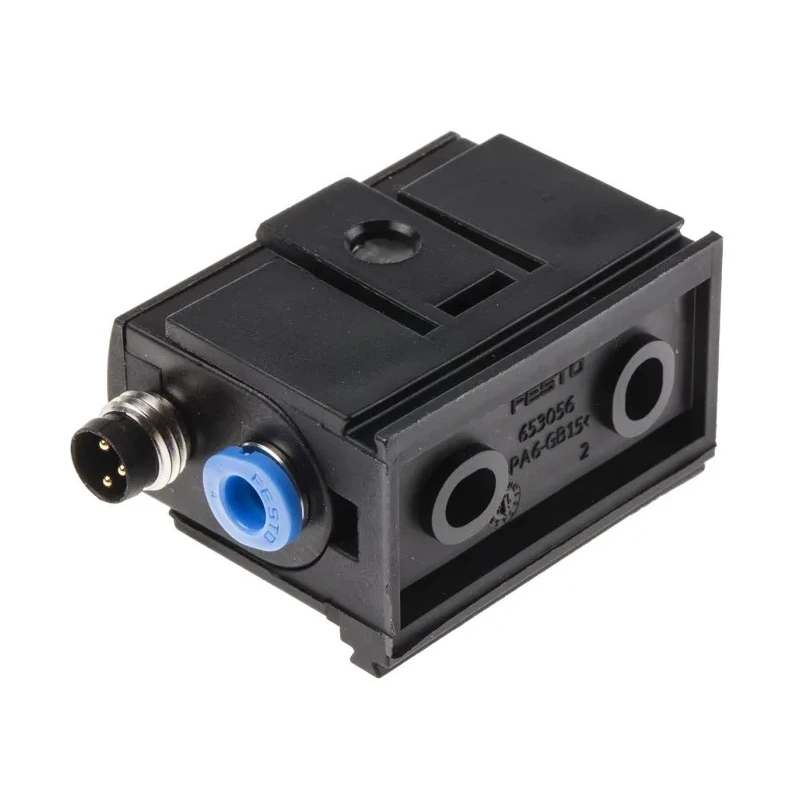

Festo Pneumatic Pressure Sensor Threaded 4 mm Tubing Bracket Mount IP40 0 bar 15V dc, 30 V dc 50 °C

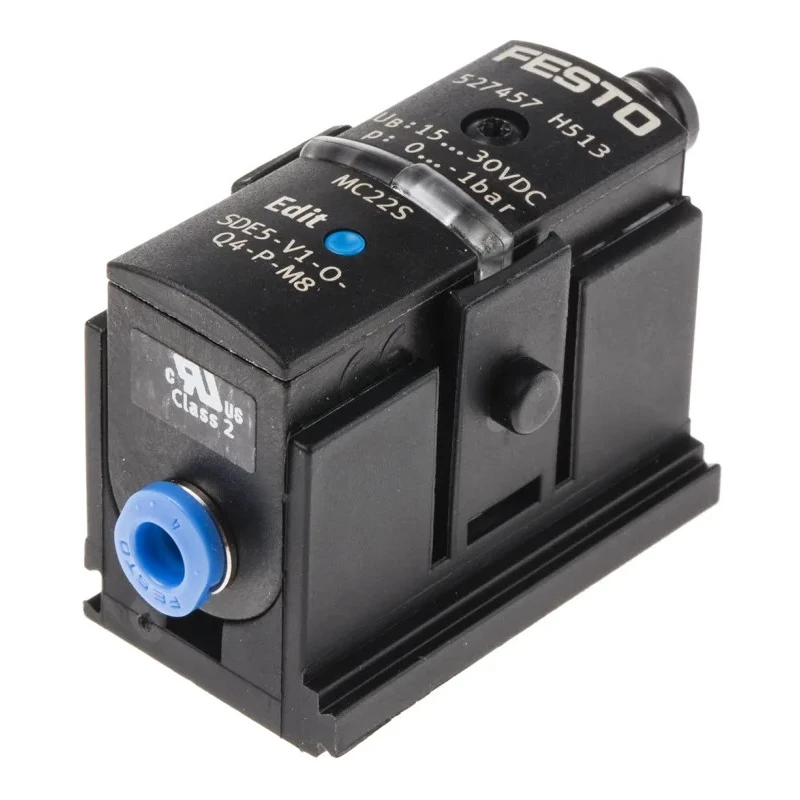

Festo SDE5-V1-O-Q4-P-M8 pneumatic pressure sensor is designed for industrial pneumatic systems to measure air pressure accurately within a 0 to -1 bar operating pressure range. This sensor utilizes piezoresistive technology to convert pressure changes into electrical signals with high precision and reliability. It features a threaded 4 mm tubing port connection suitable for compact pneumatic circuits.

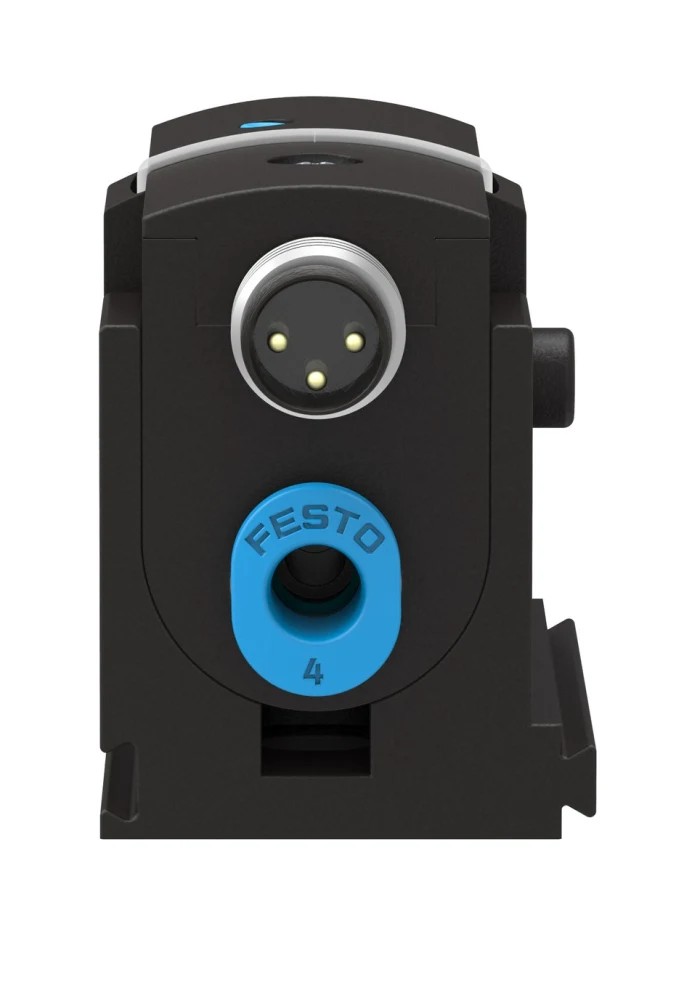

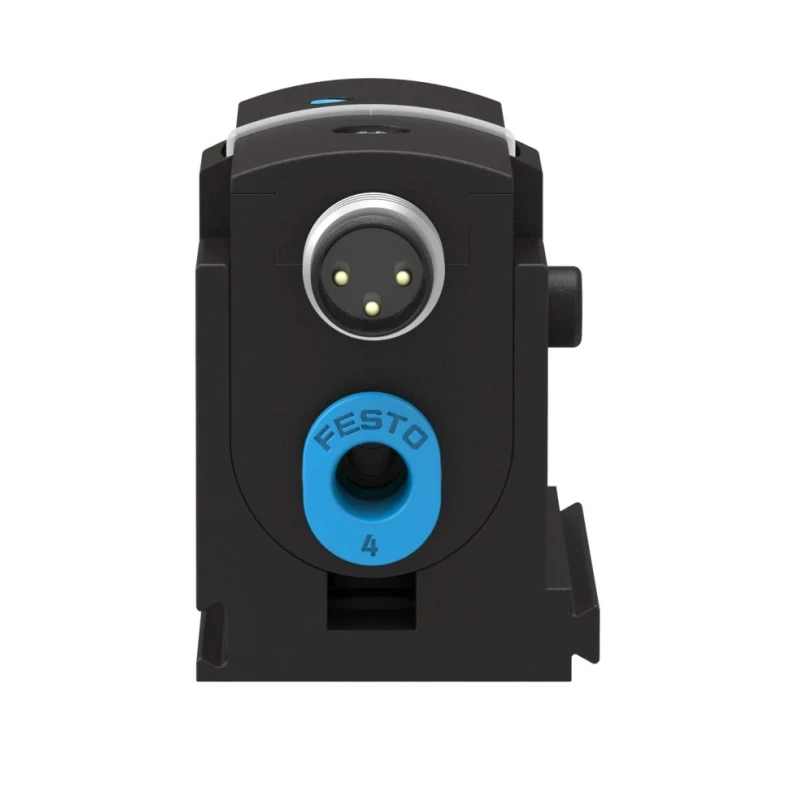

The device is mounted using a bracket, providing secure attachment options and ease of installation. Its electrical connection is via a triple-pin M8 plug socket, which enables straightforward wiring without complex tools. The sensor supports NPN and PNP switch outputs, offering flexible interface choices for integration into various automation setups.

Designed for harsh industrial environments, the pressure sensor has a protection rating of IP40, safeguarding against access by tools or wires larger than 1 mm, and is housed within a sturdy polyamide (PA) casing to resist corrosion and impact. It operates reliably within temperature ranges of 0°C to 50°C, making it suitable for medical equipment, pharmaceutical industry applications, and other demanding pneumatic systems.

A yellow LED indicator is included for straightforward display of operational status, assisting with visual diagnostics during use or maintenance. The sensor’s compact size (43 mm height, 15 mm width, and 30 mm depth) and lightweight design of 19 grams facilitate easy handling and installation in limited-space pneumatic layouts.

Bracket mounting provides installation flexibility and security. Dual voltage operation at 15V and 30V DC supports diverse control environments. Threaded 4 mm tubing port suits compact pneumatic systems. NPN and PNP outputs ensure broad compatibility.

Robust PA housing suitable for corrosive and impact-prone environments. IP40 rating ensures protection from finger contact and debris above 1 mm. Operating temperature range supports demanding industrial processes. Yellow LED indicator offers clear operational status feedback.

Low weight enhances ease of installation and reduces mechanical stress.

This pressure sensor is ideal for various industrial, manufacturing, fluid power, and laboratory applications where precise pneumatic pressure measurement is required. It aligns with RoHS standards, underscoring its environmental compliance. The product is manufactured in Bulgaria and complies with relevant quality and safety standards.
